JTU AR-601

What you set is what you get.1

Download the brochureRequest a quote

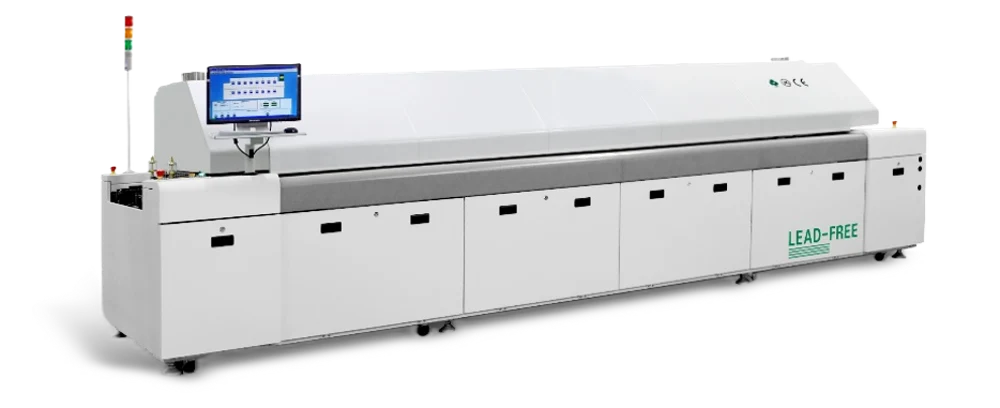

Photo: JTU.

The essentials.

  • Coming soon

    8 mm panels. The nozzles sit in panels that retain heat and recover quickly at full load.5

  • Coming soon

    Double-pin chain. Carries the board without oil stains, with automatic lubrication.6

  • Coming soon

    Automatic width. The conveyor adjusts itself to the recipe.7

  • Coming soon

    Traceability. Logs every production run and is MES-ready.8

Three key points

Application examples.

What JTU highlights about the AR-601 and its AR series.

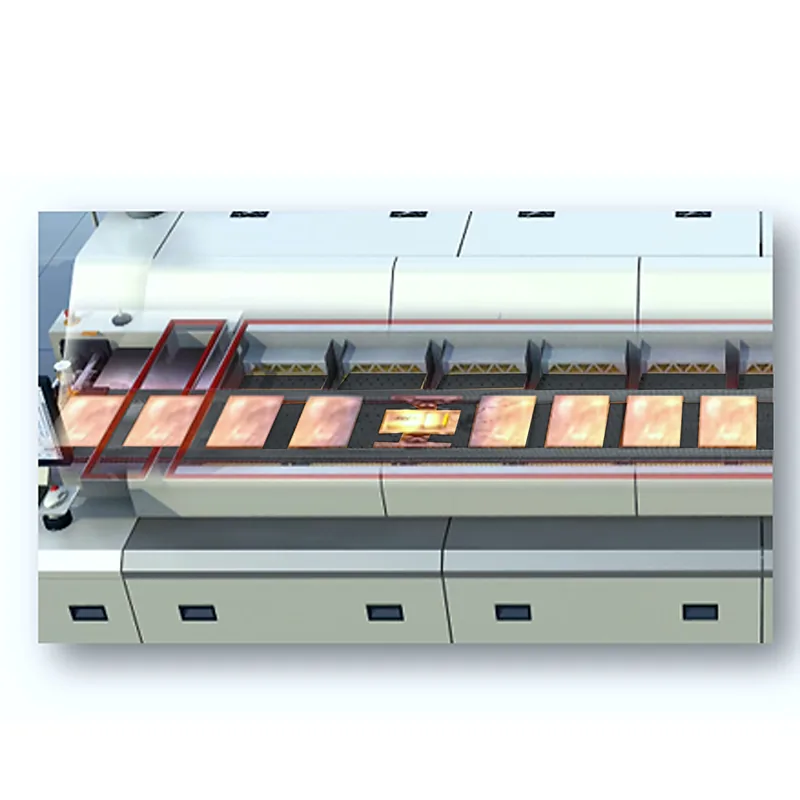

  • Boards moving through the heating zones of an AR series oven (image: JTU)
    Stable profile across the conveyor. In JTU's test (with an AR-1003), the 8 thermocouples across the width stay within 1 °C of the setpoint.1
  • Coming soon
    Large boards, no warpage. Less temperature difference across the board and, as an option, center support.9
  • Coming soon
    With nitrogen. The AR-601N version, with an optional oxygen analyzer.10
  • Coming soon
    One profile per board. With KIC ProBot (optional), no periodic manual profiling.11

Examples from the JTU AR series catalog, p. 2 to 5. JTU does not name industries. Image: JTU.

Why Bwit.

  • A technician advises you.

    We help you choose between air and nitrogen.

  • Installation.

    We commission it on your line.

  • Training.

    For operators and programmers.

  • Technical service.

    Close to you.

  • Spare parts.

    Spare parts and consumables.

JTU AR-601

Technical specifications.

Data from the JTU catalog12

Board8 specs

PCB width
50 – 460 mm
Component clearance
30 mm above and 25 mm below
Conveyor speed
300 – 2,000 mm/min
Conveyor height
900 ± 20 mm
Fixed rail
Front (optional: rear)
Conveyor direction
Left to right (optional: right to left)
Width adjustment
Automatic
Conveyor type
Chain and mesh (AR-601) / chain (AR-601N)

Process12 specs

Heating zones
6 top and 6 bottom
Heating zone length
2,330 mm
Cooling zones
1 top
Cooling zone length
400 mm
Temperature control
Closed-loop PID control + SSR drive
Temperature range
Room temperature – 300 °C (optional: up to 350 °C)
Max. setpoint difference between preheating and soldering zones
70 °C
Max. setpoint difference between preheating zones
40 °C
Max. setpoint difference between soldering zones
40 °C
Temperature control precision
±1 °C
Temperature deviation on PCB
±1.5 °C
Warm-up time
Approx. 25 min

Software and control1 spec

Operating system
Windows 11

Machine3 specs

Model
AR-601 / AR-601N
Dimensions (L × W × H)
3,670 × 1,353 × 1,490 mm
Weight
Approx. 1,600 kg (AR-601) / approx. 1,700 kg (AR-601N)

Installation8 specs

Power supply
Three-phase 380 VAC 50/60 Hz (optional: three-phase 220 VAC 50/60 Hz)
Total power
42 kW (AR-601) / 45 kW (AR-601N)
Start-up power
26 kW (AR-601) / 28 kW (AR-601N)
Normal power consumption
Approx. 8 kW (AR-601) / approx. 10 kW (AR-601N)
Nitrogen supply
N/A (AR-601) / 0.5–0.8 MPa, 10 ppm (AR-601N)
Nitrogen consumption (to reach 500–1,000 ppm)
N/A (AR-601) / 21 m³/h (AR-601N)
Exhaust flow rate
10 m³/min × 2
Exhaust outlet diameter
200 mm

Source: manufacturer's datasheet (JTU).

Download brochure (PDF, 4.2 MB)

Official JTU brochure · 6 pages. It is the catalog for the whole range: this machine is on page 5.

Notes

  1. “Stable & Repeatable Profiles: ‘What you set is what you get’.” In JTU's test with an AR-1003 (for reference only), 8 thermocouples spread across the 400 mm conveyor width stay within 1 °C of the set temperature: JTU AR series catalog, p. 2.
  2. 6 top and 6 bottom heating zones; 2,330 mm heating zone; 1 top cooling zone, 400 mm long: JTU AR series catalog, p. 5.
  3. Closed-loop PID control with SSR, ±1 °C precision; temperature deviation on the board ±1.5 °C: JTU AR series catalog, p. 5.
  4. Convection with front-to-back flow: minimizes heat migration between zones, which is common in left-to-right flow systems: JTU AR series catalog, p. 2.
  5. Nozzles integrated into 8 mm heater panels, which store energy to recover quickly at full load, are easier to clean and reduce maintenance downtime: JTU AR series catalog, p. 2.
  6. Double-pin chain, which keeps oil off the board, and programmable automatic lubrication: JTU AR series catalog, p. 3.
  7. Automatic conveyor width adjustment by recipe: JTU AR series catalog, p. 4 and 5. Automatic recipe changeover with a barcode reader is optional (p. 4).
  8. Production process data is logged, with full traceability; ready for MES integration (optional customization) and IPC-CFX (optional): JTU AR series catalog, p. 4.
  9. Longer effective zones: less ΔT across the board and less warpage (p. 2). Optional center board support (CBS) for large boards; with it, the mesh is removed and the minimum board width becomes 60 mm: JTU AR series catalog, p. 3 and 4.
  10. AR-601N: nitrogen at 0.5–0.8 MPa and 10 ppm; 21 m³/h to reach 500–1,000 ppm (p. 5). Oxygen analyzer optional, on N versions only; nitrogen/air switching is not available on 6-zone ovens: JTU AR series catalog, p. 4.
  11. KIC ProBot automatic thermal profiling (optional): “1 PCB, 1 profile”, with no periodic manual profiling: JTU AR series catalog, p. 4.
  12. Table from the JTU AR series catalog, p. 5 (AR-601 and AR-601N columns). Up to 350 °C as an option (p. 4). It is the same table as in the English brochure you can download on the website (v10.0.1, p. 5).
