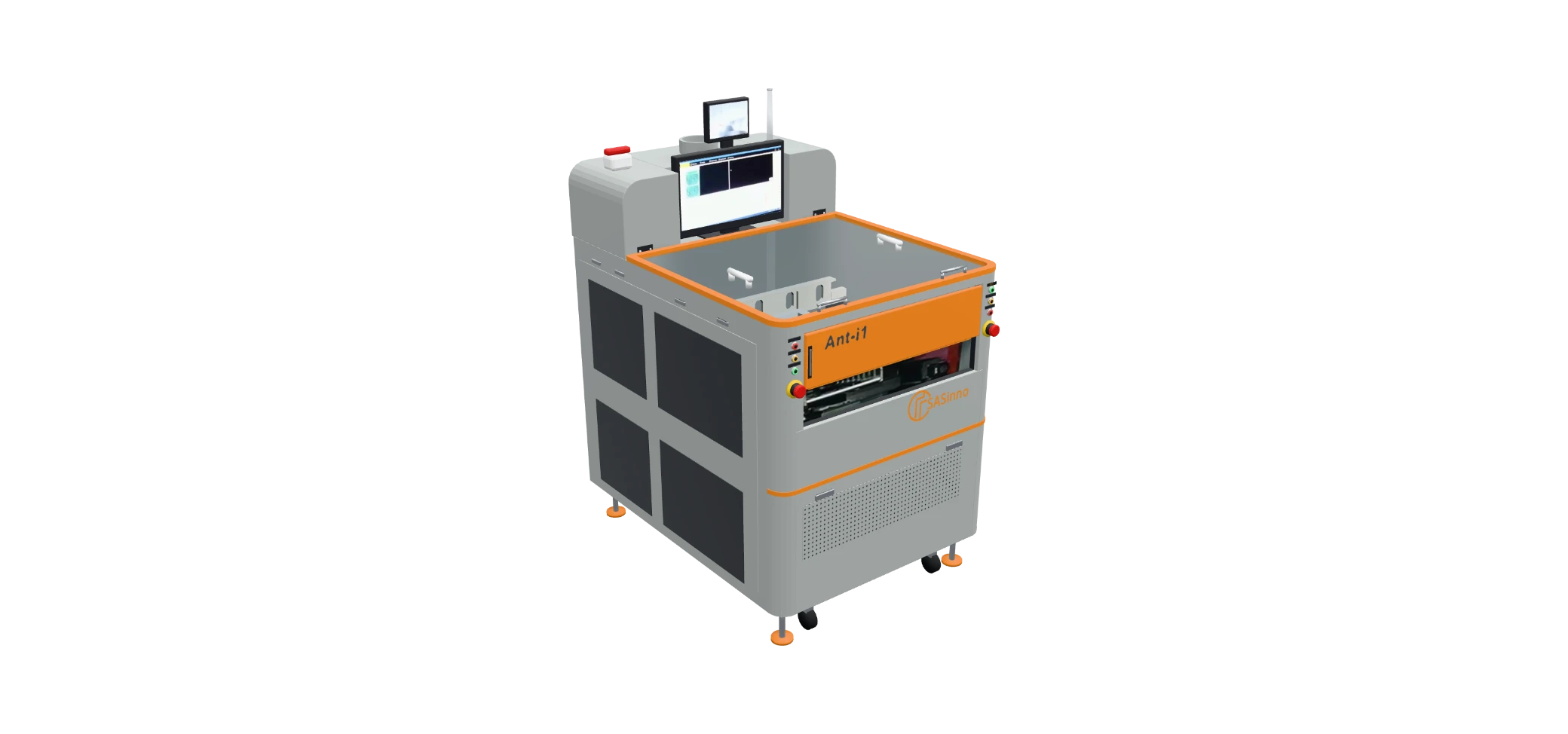

ANT-i1
- 350 × 260mmMaximum board
Source: official SASinno specifications (ANT-i1).
THT
Insertion, selective soldering and inspection.
18 machines
Manual insertion
4 machines
Compare

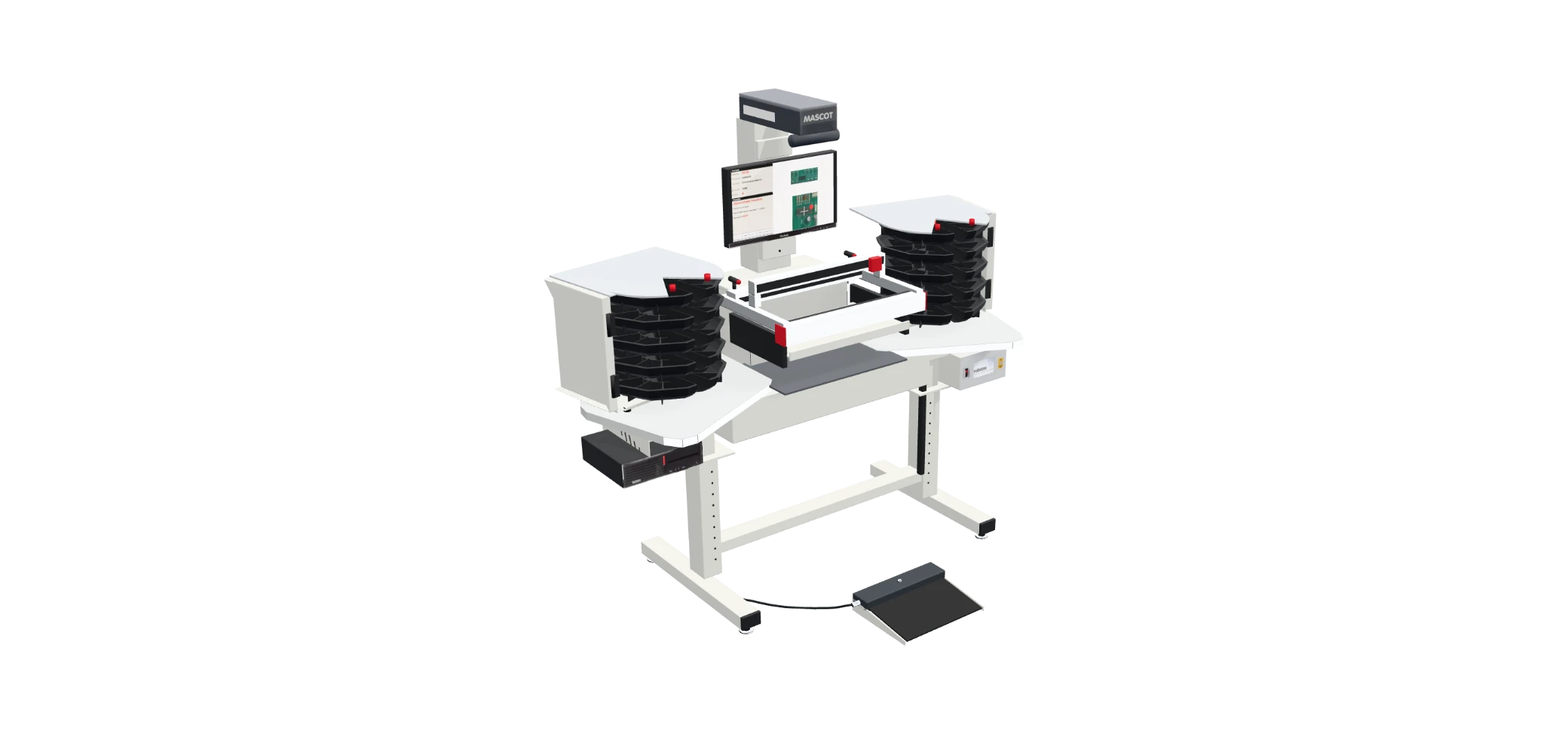

Carousels
Up to 4, motorized, with up to 50 compartments each
Up to 4, motorized, with up to 50 compartments each
—
—
Compartments
Up to 200 in 4 carousels: each carousel holds 5 trays of 450 mm diameter with 10 compartments. Trays of 4 are also available for large parts
Up to 200 in 4 carousels: each carousel holds 5 trays of 450 mm diameter with 10 compartments. Trays of 4 are also available for large parts
—
—
Carousel rotation
Less than 2 s
Less than 2 s
—
—
LED indicators
Up to 176
Up to 176
—
—
Where it says so
Manufacturer's datasheet (ROBOTAS).
Manufacturer's datasheet (ROBOTAS).
—
—

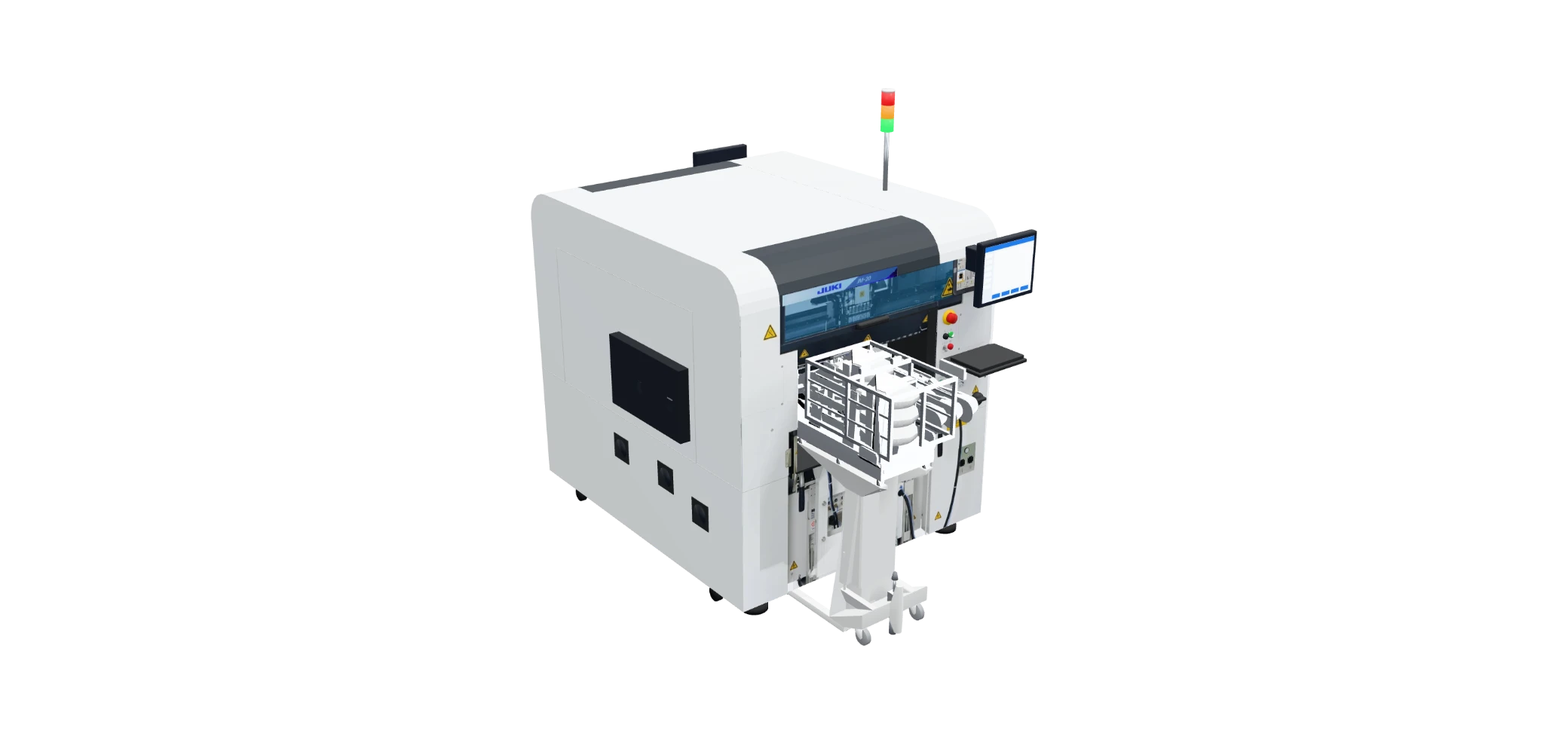

Automatic insertion
3 machines
Compare
Board
single clamping50 × 50 – 410 × 360 mmdual clamping50 × 50 – 800 × 360 mm
L410 × 360 mm (single clamping) / 800 × 360 mm (dual clamping)XL410 × 560 mm (single clamping) / 800 × 560 mm (dual clamping)
single clamping50 × 50 mm – 410 × 360 mm (standard) / 80 × 100 mm – 410 × 360 mm (with clinch)dual clamping50 × 50 mm – 800 × 360 mm (standard) / 80 × 100 mm – 800 × 360 mm (with clinch)
Board weight
2 kg
max. 4 kg
max. 4 kg
Component height
30 mm
max. 55 mm
max. 30 mm
Component size
0603 – □50 mm
laser recognition0603 – □50 mmvision recognition□3 mm~□50 mmvision recognition1005 – □24 mm
laser recognition0603 – □50 mmvision recognition□3 – 78 × 48 mm or 85 × 25 mm
Placement accuracy
—
SMT, laser recognition±0.05 mmSMT, vision recognition±0.04 mm
SMT, laser recognition±0.05 mm (3σ)SMT, vision recognition±0.04 mm
Where it says so
Manufacturer's datasheet (JUKI).
Manufacturer's datasheet (JUKI).
Manufacturer's datasheet (JUKI).
Selective soldering
3 machines
How much do you produce?
3D renderings
SASINNO · Offline

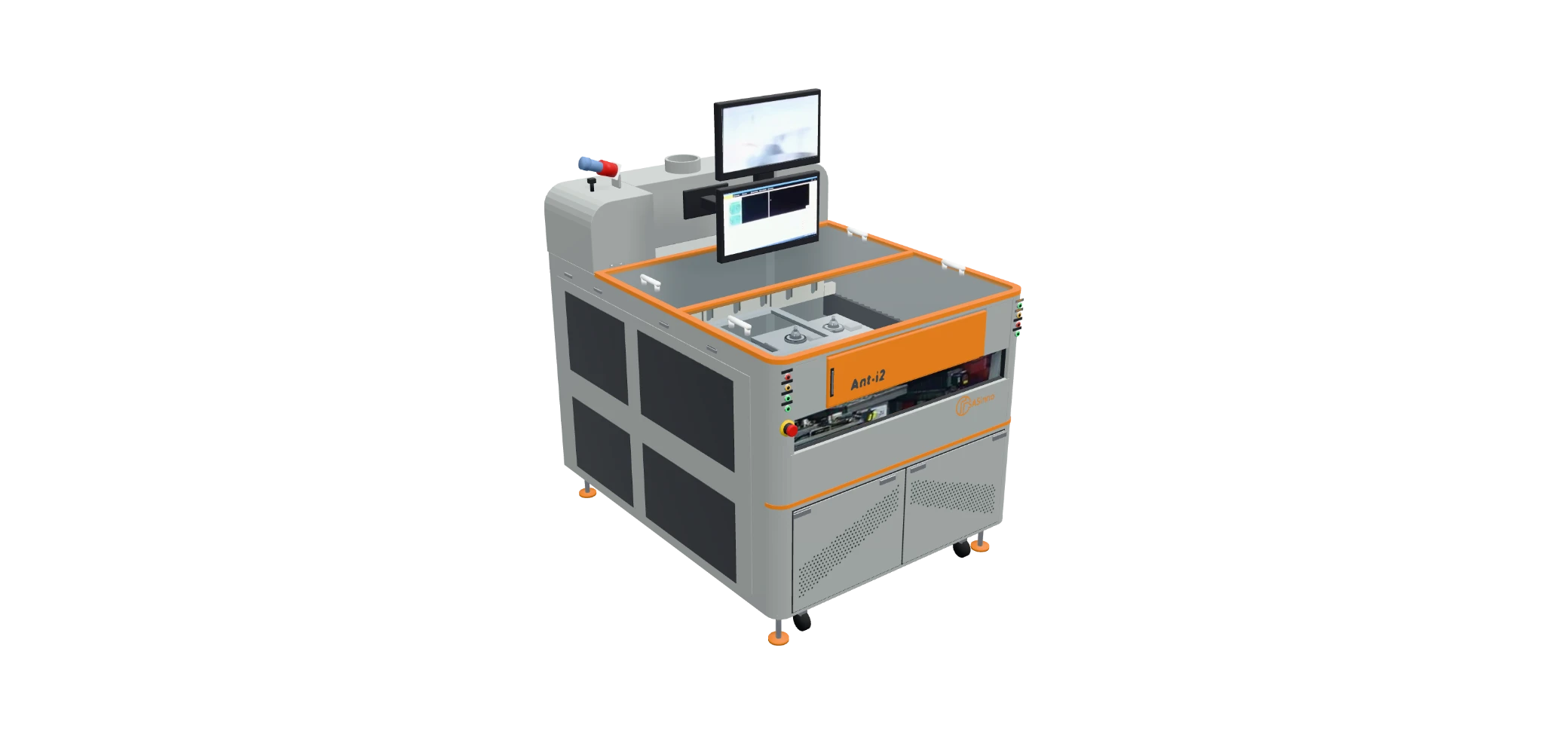

ANT-i2
Two mini waves.
- 350 × 450mmMaximum board
Source: official SASinno specifications (ANT-i2).
SASINNO · Inline

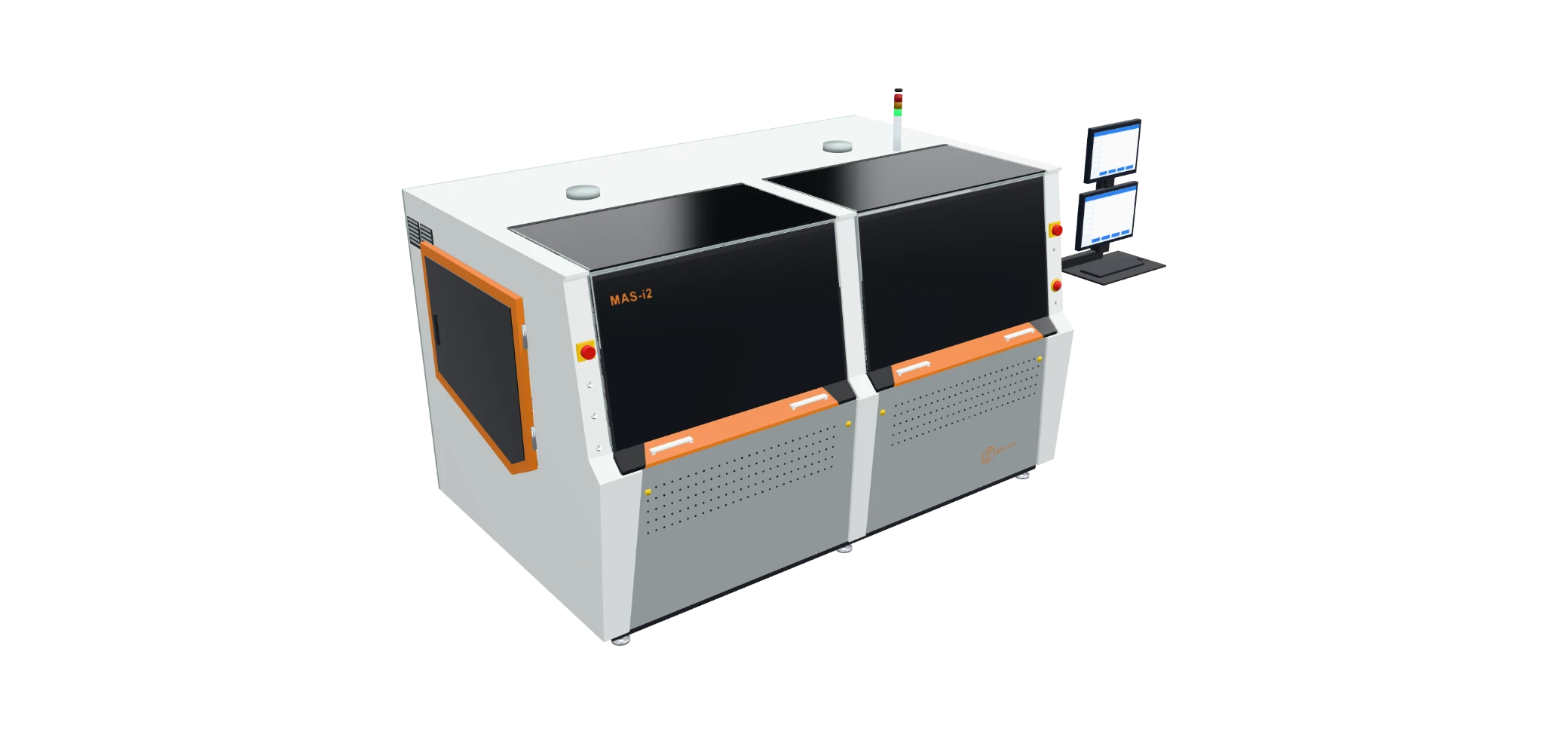

MAS-i2
Two solder pots · inline.
Source: SASinno MAS-i2 datasheet.
Compare
Board
50 × 50 – 350 × 260 mm (up to 700 × 260 mm by rotating the board 180° by hand)
one nozzle50 × 50 – 350 × 450 mmboth nozzles at once50 × 50 – 350 × 215 mm
maximum, each nozzle separately508 × 508 mmmaximum, both nozzles at once508 × 235 mm
Solder pots
1
1, with two independent waves
2
Solder pot capacity
15 kg
35 kg
15 kg with mechanical pump; 11 kg with electromagnetic pump (optional)
Solder pot temperature
380 °C
380 °C
350 °C
Positioning accuracy
±0.05 mm
±0.05 mm
±0.05 mm
Where it says so
Manufacturer's datasheet (SASINNO).
Manufacturer's datasheet (SASINNO).
Manufacturer's datasheet (SASINNO).
THT Inspection
6 machines
When do you inspect?
3D renderings
Maker Ray · Before soldering

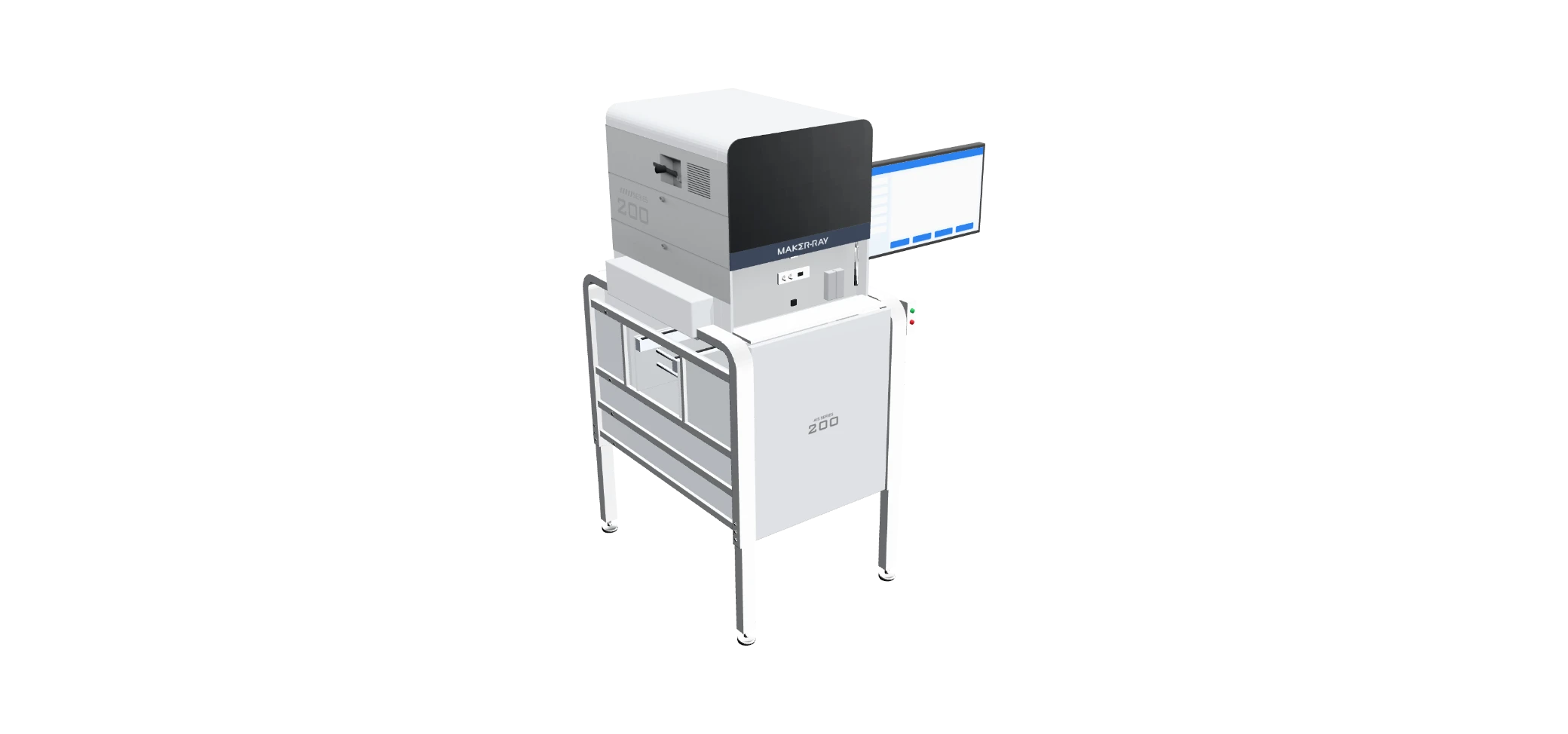

AIS20X-HW
One-click AI programming: it finds nearly 50 part types on its own, draws their windows and picks the algorithm and its parameters. Programming is over 70% faster, according to Maker Ray. Source: Maker Ray AIS20X-HW brochure, pp. 1 and 2.
- 400 × 266mmLargest board
- 715mmOn the conveyor you already have
- 20MPColor camera
- 5typesDefects it detects
Source: Maker Ray brochure, p. 1.
Maker Ray · After · bottom side
AIS30X-HW
Finds components on its own and programs quickly. Source: manufacturer's datasheet (Maker Ray).
Bottom camera.
- 15µmResolution
Source: Maker Ray AIS30X datasheet.
New
Maker Ray · Post-solder · double-sided
AIS50X-HW
It programs itself: it finds the parts, draws their windows (body, silkscreen, leads and solder joints) and assigns their algorithm and parameters. Source: Maker Ray AIS50X-HW brochure, p. 1 (“Programming Method”).
- 510 × 460mmLargest board
- 2 × 12MPTwo cameras
- 0.23sPer field of view
- 75mmTall parts
Source: Maker Ray brochure, p. 1.
Compare
3D renderingMaker Ray · Add-on · repair

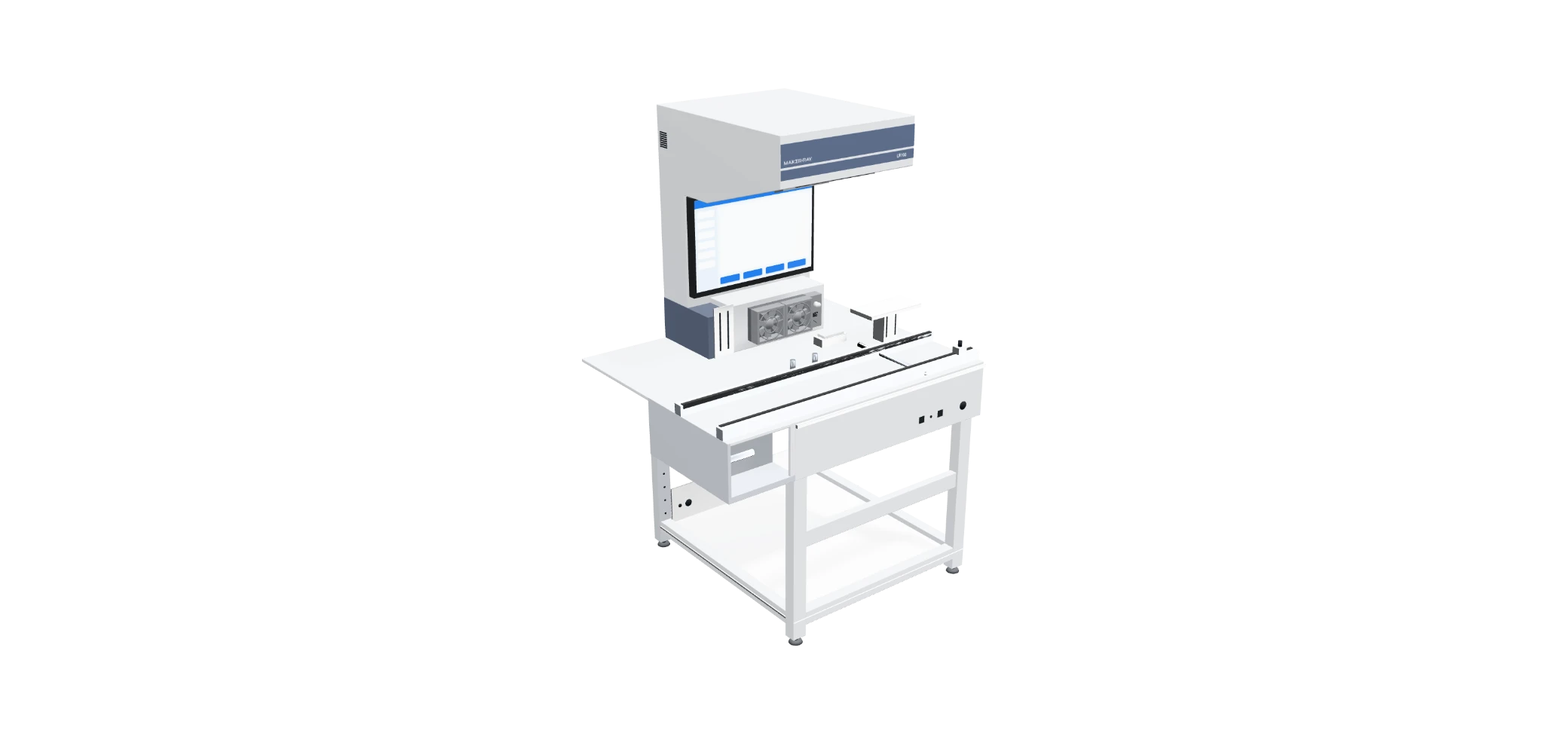

AOI-XLR100
Maker Ray's repair station, alongside its AOI systems.
View in detailAI programming
One-click AI programming: it finds nearly 50 part types on its own, draws their windows and picks the algorithm and its parameters. Programming is over 70% faster, according to Maker Ray.
It programs itself: it finds the parts, draws their windows (body, silkscreen, leads and solder joints) and assigns their algorithm and parameters.
Finds components on its own and programs quickly.
One-click AI programming: it draws the windows of trained parts by itself and, when analyzing defects, sets up the algorithm and its parameters.
—
One-click AI programming: it draws the windows of trained parts by itself and, when analyzing defects, sets up the algorithm and its parameters.
—
Board
400 × 266 mm (AIS203-HW) / 520 × 390 mm (AIS203P-HW)
50 × 50 – 510 × 460 mm, belt or chain (AIS501B-HW; large board mode 730 × 460 mm, optional) / 50 × 50 – 510 × 650 mm (AIS501B-L-HW; large board customization up to 730 × 650 mm)
50 × 50 – 550 × 650 mm
50 × 50 mm – 510 × 510 mm (Modo placa grande support 710 × 510 mm, option)
—
50 × 50 mm – 510 × 510 mm (Modo placa grande support 710 × 510 mm, option)
550 × 400 mm
Camera
20 MP color high speed camera (AIS203-HW) / 31 MP color high speed camera (AIS203P-HW)
Top & bottom: 12 MP color high speed camera
12 MP, color
Top, 2D12 MP color high speed cameraBottom, 3D12 MP high frame rate monochrome industrial camera
—
Top & Bottom: 12 MP high frame rate monochrome industrial camera
—
Resolution
75 µm (AIS203-HW) / 80 µm (AIS203P-HW)
15 µm @ 60 × 45 mm & 10 µm @ 40 × 30 mm (option)
15 µm
and field of view · Top, 2D15.5 µm@65 × 43 mm & 10 µm@40 × 30 mm (Option)and field of view · Bottom, 3D15 µm@60 × 45 mm & 10 µm@40 × 30 mm (Option)
—
Top & Bottom: 15 µm@60 × 45 mm & 10 µm@40 × 30 mm (Option)
—
Inspection speed
—
0.23 s/FOV
0.23 s/FOV
Top, 2D0.26 s/FOVBottom, 3D0.58 s/FOV
—
Top & Bottom: 0.65 s/FOV
—
Where in the line
Before / after wave soldering
Post-reflow (SMT), post-wave soldering (THT), final inspection before packaging
—
—
—
—
—
Where it says so
Maker Ray AIS20X-HW brochure, pp. 1 and 2; manufacturer's datasheet (Maker Ray).
Maker Ray AIS50X-HW brochure, p. 1 (“Programming Method”); manufacturer’s datasheet (Maker Ray).
Manufacturer’s datasheet (Maker Ray).
Manufacturer’s datasheet (Maker Ray).
—
Manufacturer’s datasheet (Maker Ray).
Manufacturer’s datasheet (Maker Ray).
Board Handling
2 machines
Compare
Board
500 × 460 mm (length × width)
500 × 460 mm (length × width)
Component clearance
30 mm top and bottom
30 mm top and bottom
Where it says so
Manufacturer’s datasheet (Vanstron).
Manufacturer’s datasheet (Vanstron).
