SMD
From screen printing to inspection, your entire SMT line. 55 machines.
What’s new.
Laser marking. The board is marked. 1 machine.
View Laser marking
Screen printing. Solder paste is printed. 7 machines.
View Screen printing-

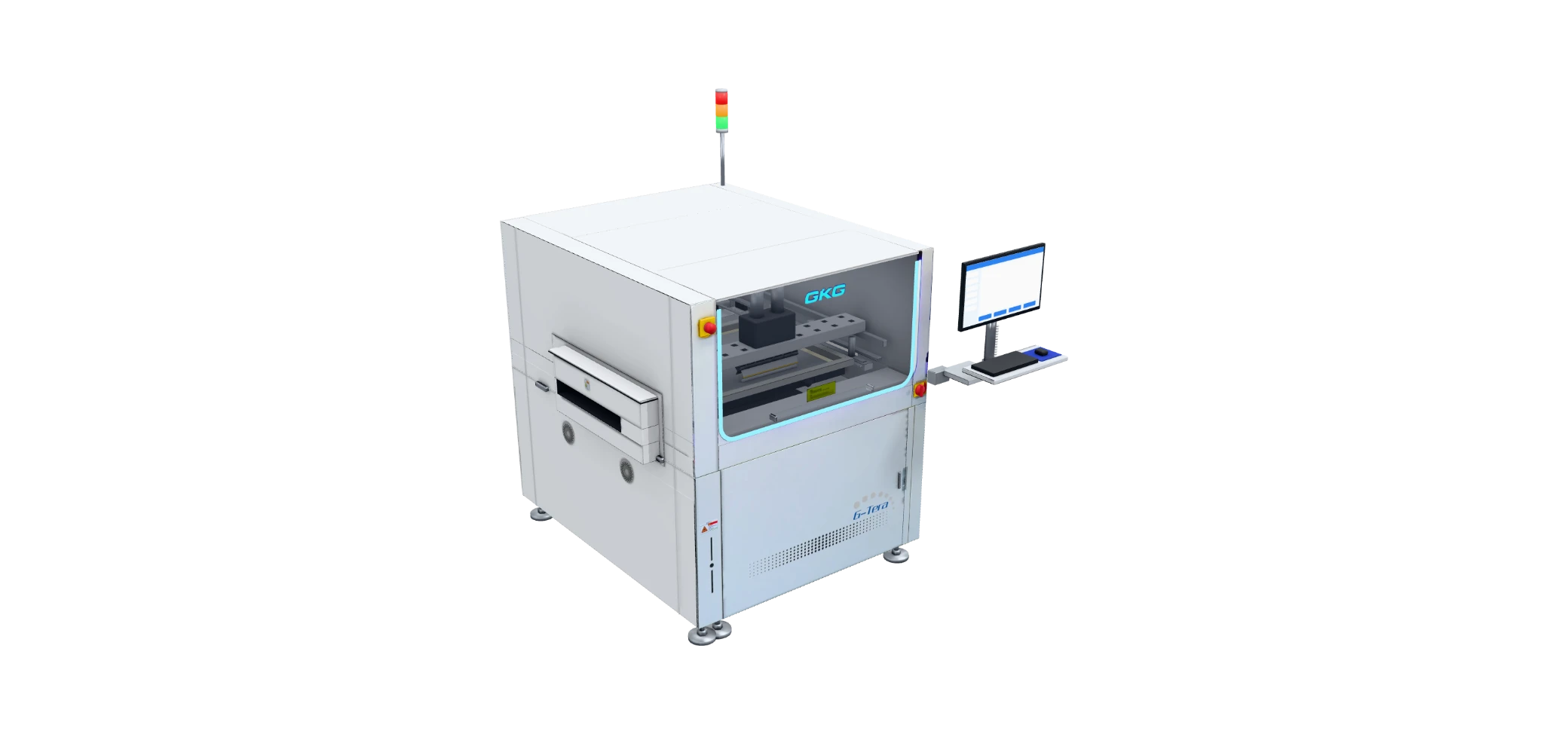

FlagshipG‑Tera5.2 s cycle · ±8 µm
3D rendering -
3D rendering

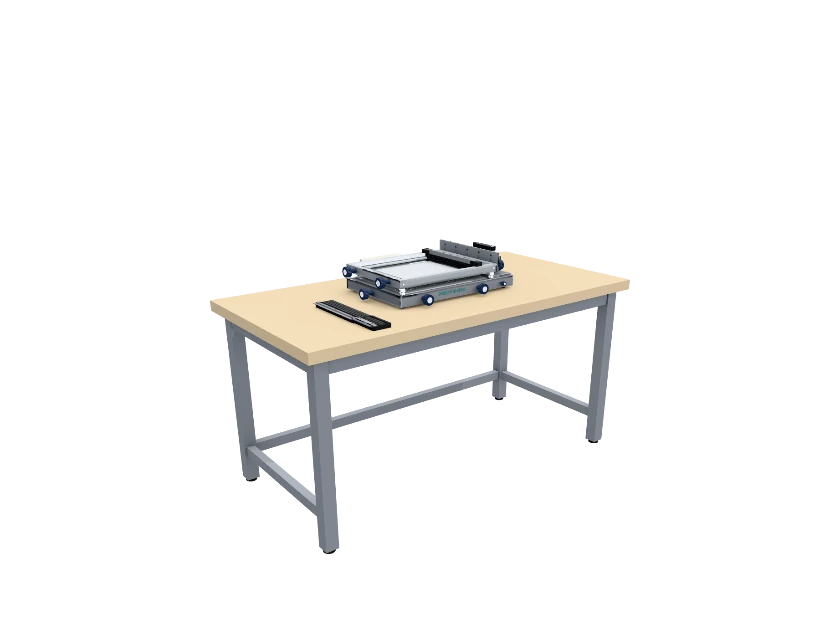

ManualFRITSCH printALL005Boards up to 390 × 290 mm (with fixed frame) -
3D rendering

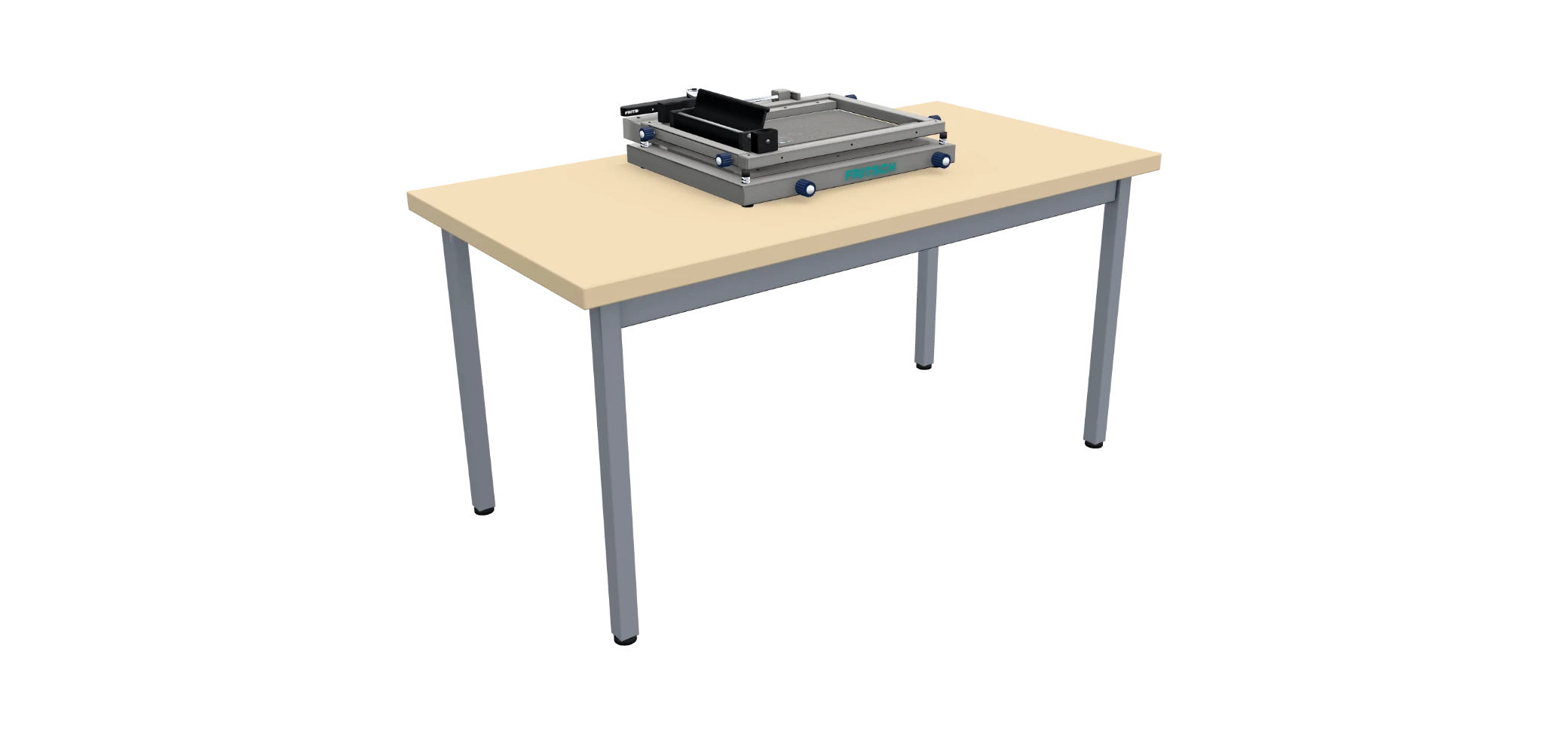

ManualFRITSCH printALL005LBoards up to 430 × 270 mm -
3D rendering

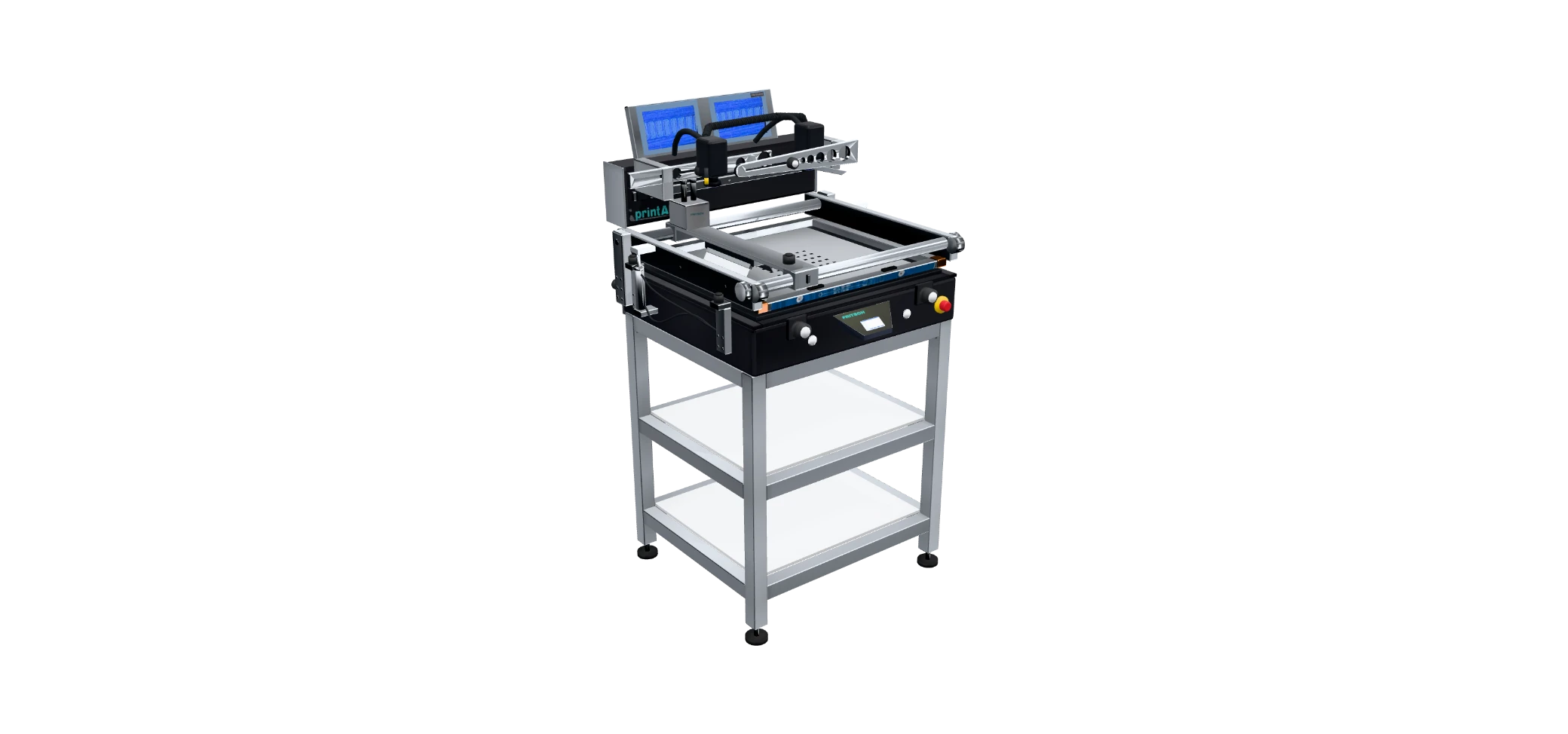

Semi-automaticFRITSCH printALL210/L/XLBoards from 440 × 430 to 1,240 × 600 mm -
3D rendering

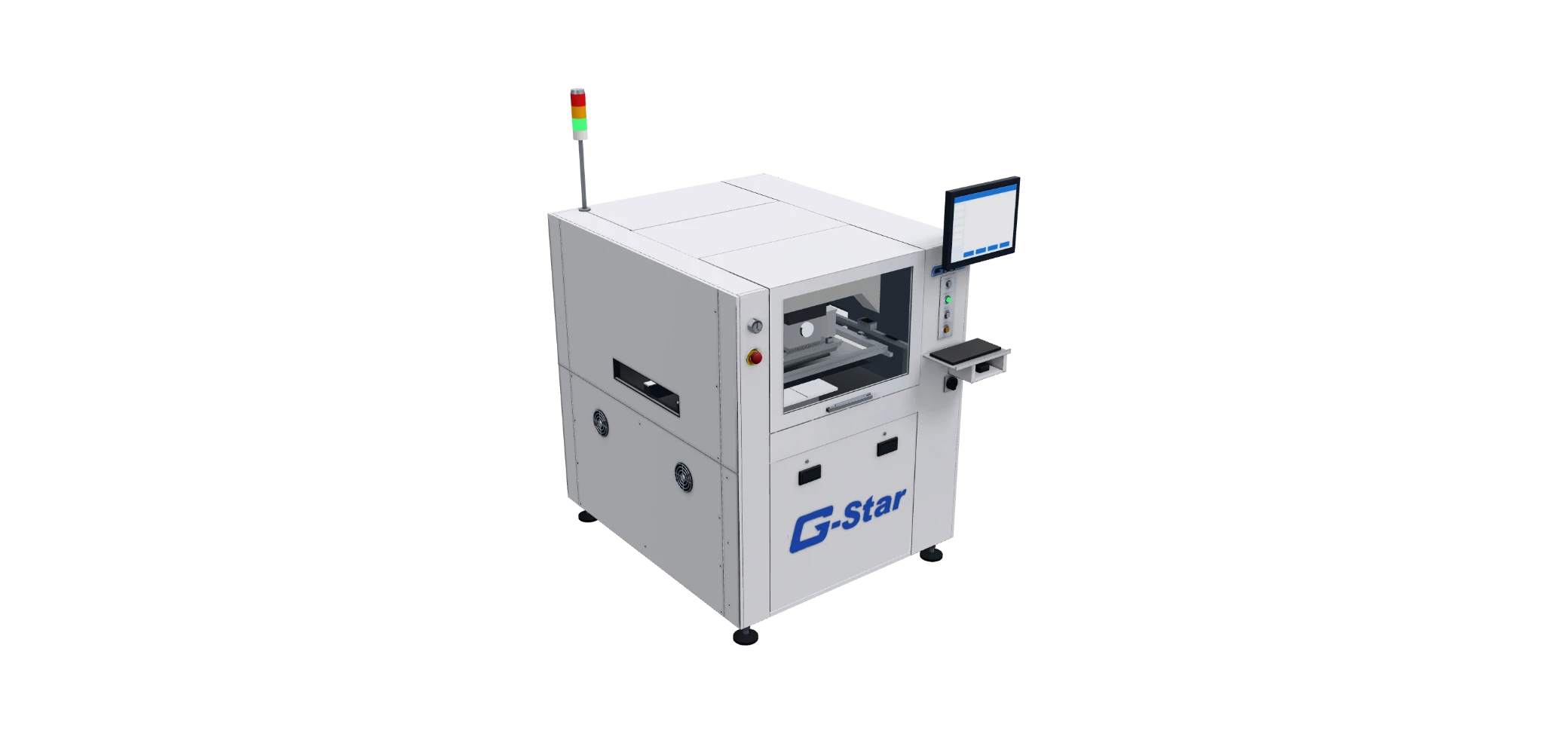

The all-rounderGKG G-STARBoards up to 400 × 340 mm. -
Automatic inlineGKG GL-STARCycle < 8.5 s · boards up to 510 × 510 mm -
3D rendering

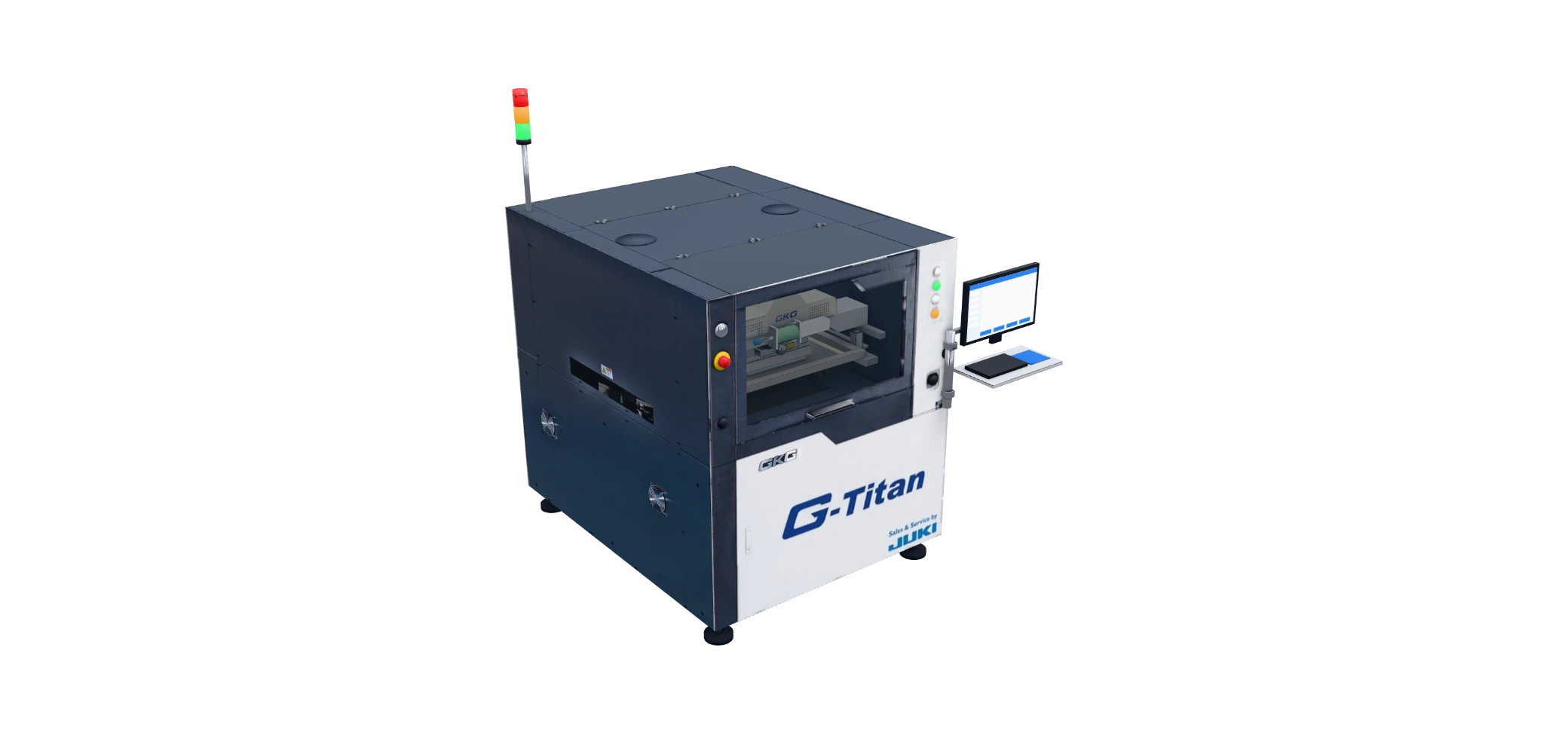

Automatic inlineJUKI G-TITANBoards up to 510 × 510 mm

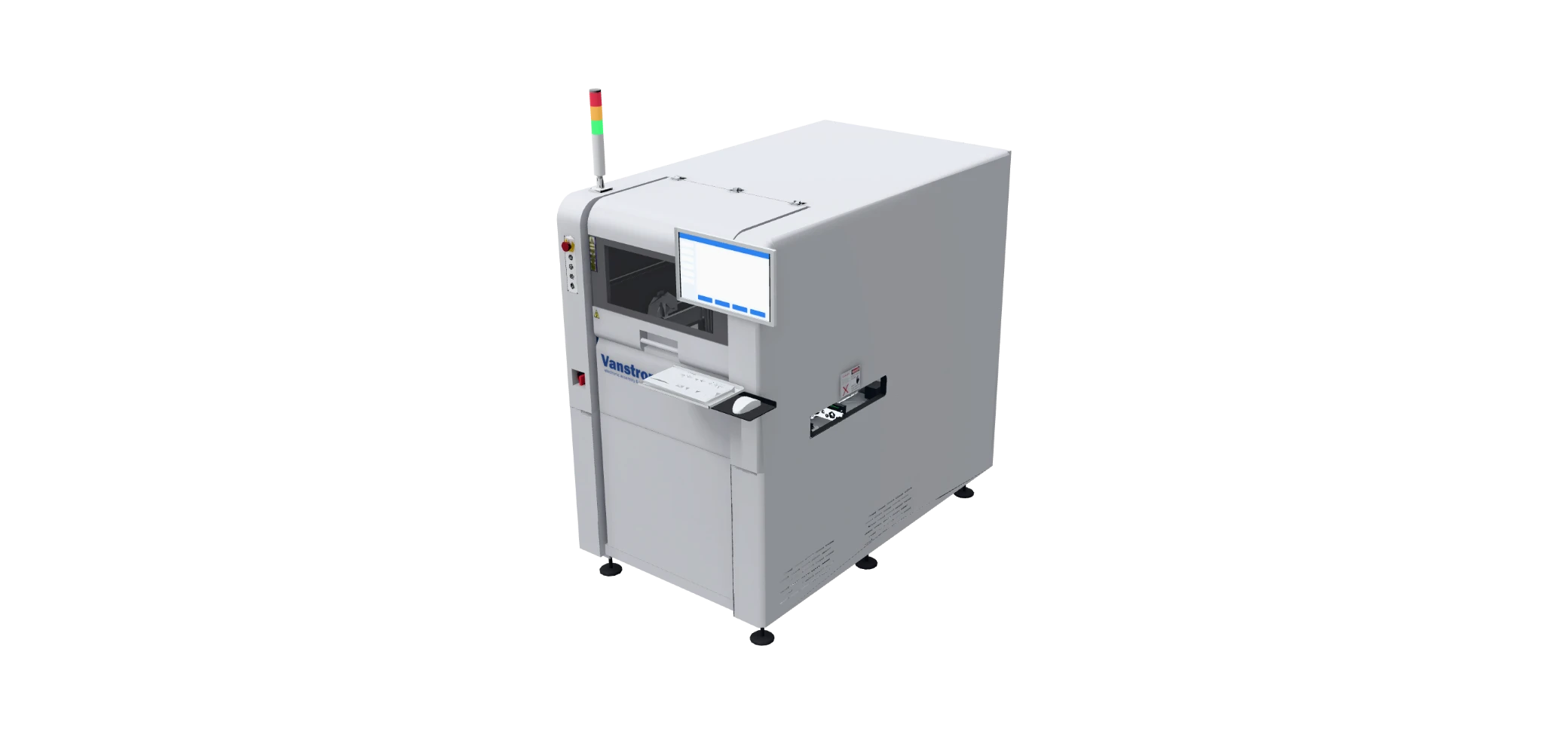

SPI. Solder paste is measured before placement. 1 machine.
View SPI
Pick & Place. Components are placed. 5 machines.
View Pick & Place-
3D rendering
Manual and semi-automaticFRITSCH LM9XX SM902Shows where to pick and place -
3D rendering
AutomaticFRITSCH PlaceALLUp to 6,000 CPH · boards up to 520 × 430 mm -
3D rendering
High-speed inlineJUKI RS-250,000 CPH · from 03015 -
3D rendering
High-speed inlineJUKI RX-8100,000 CPH · dos cabezales -
3D rendering
High-speed inlineJUKI LX8105,000 CPH · from 03015

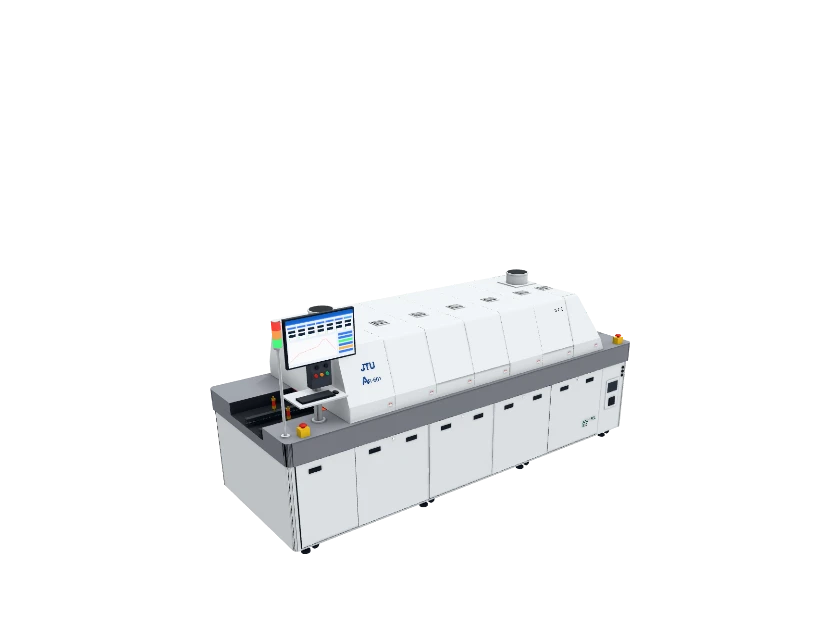

Reflow ovens. Boards are soldered. 2 machines.
View Reflow ovens
AOI. Boards are inspected. 2 machines.
View AOI
Loaders and unloaders. Board handling · 18 machines.
View Board handling-
3D rendering

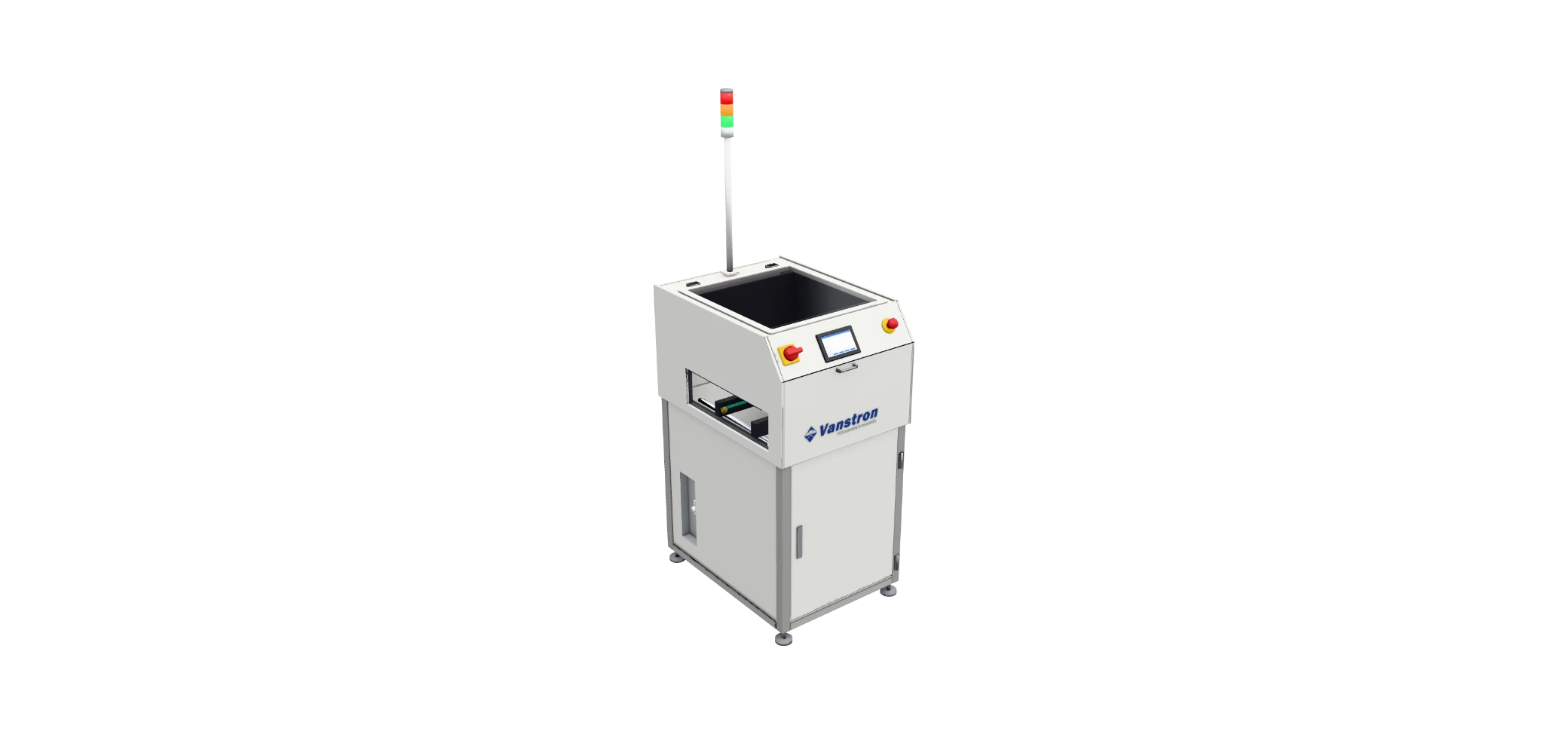

VanstronBare board stacker DLS-460Stacks boards coming out of laser marking from below -
VanstronDual-magazine loader DSTFor single- or dual-lane SMT lines -
3D rendering

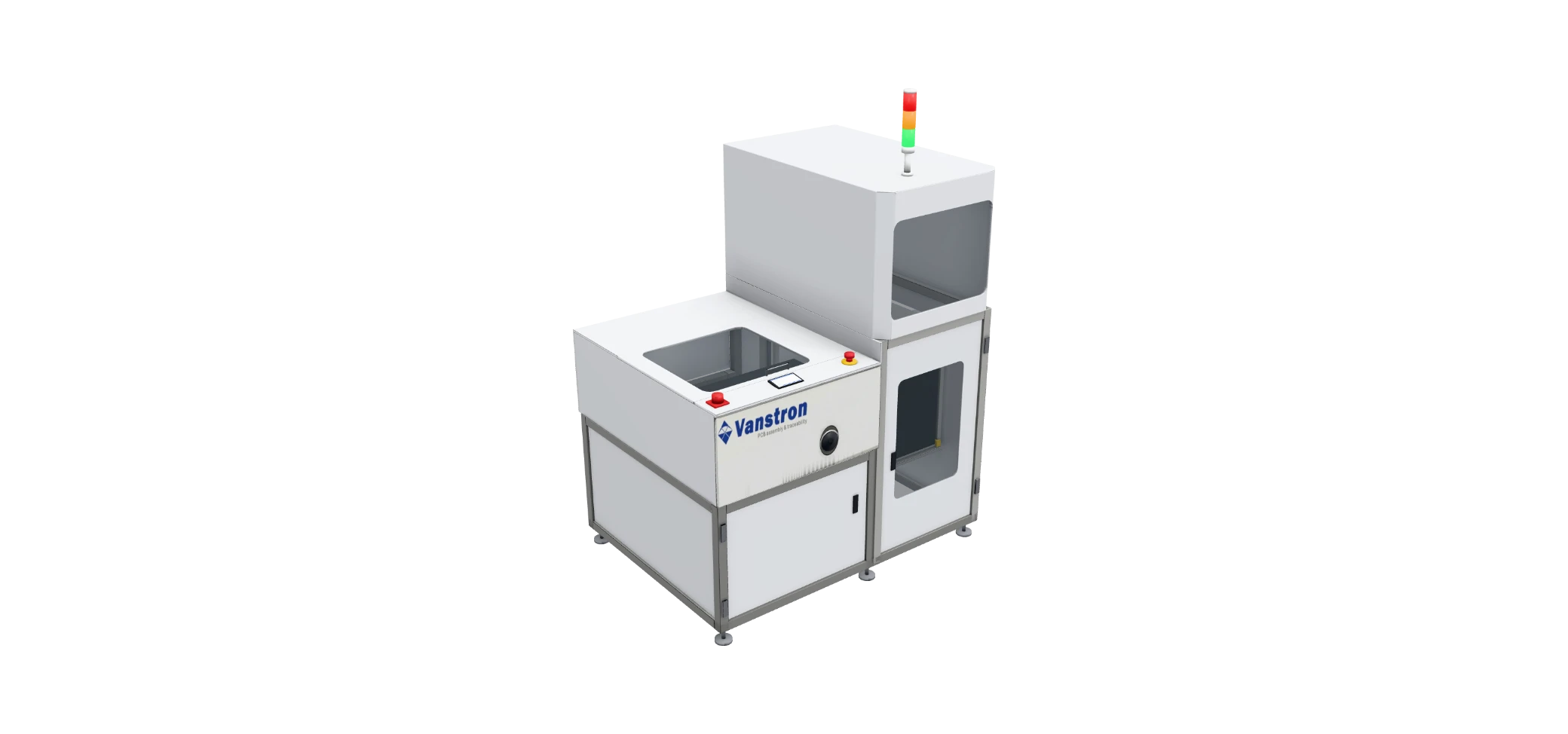

VanstronSingle-magazine loader LSLFeeds boards from a magazine into the line -
VanstronSingle-magazine loader SL-LS-EThe magazine is changed from the rear -
VanstronLightweight single-magazine loader LTL-460LS-ECompact loader to save line space -
VanstronCompact multi-magazine loader ASLFour magazines in less line length -

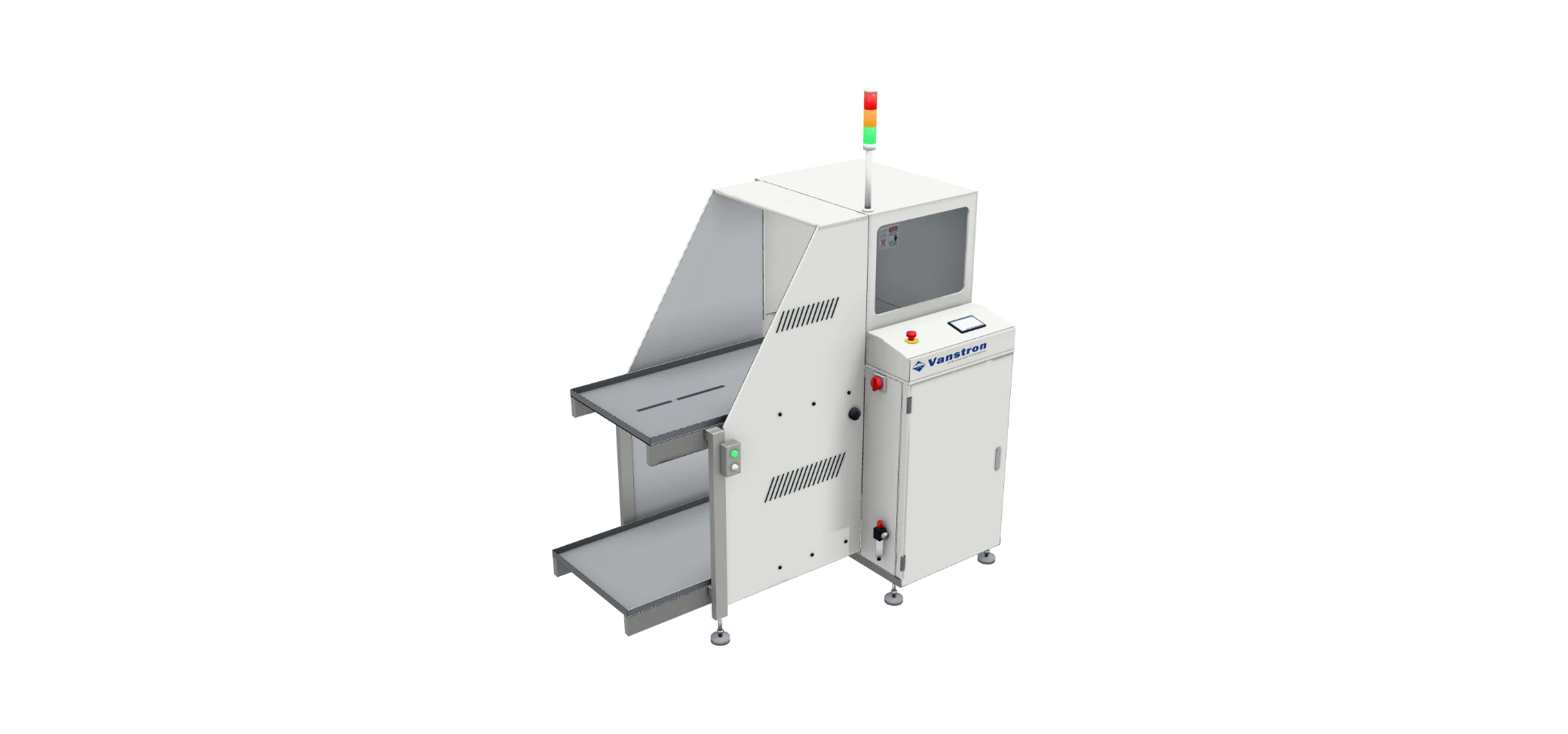

VanstronMulti-magazine loader with destacker MLDLoads from a magazine or destacks bare boards -
3D rendering
VanstronMulti-magazine loader SLFour magazines to run longer without an operator -
3D rendering

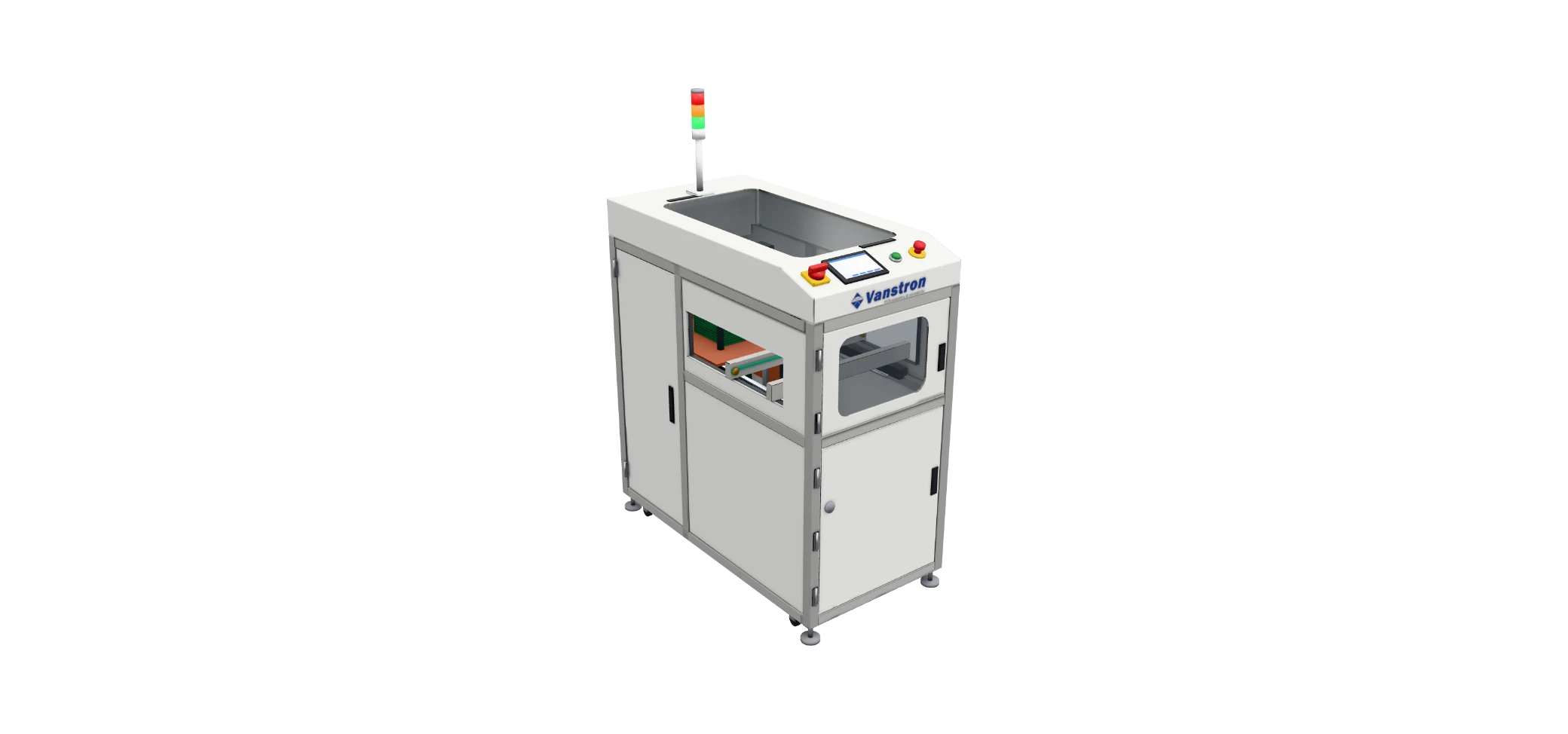

VanstronVacuum loader VK-460Loads bare boards by picking them up with vacuum -
3D rendering

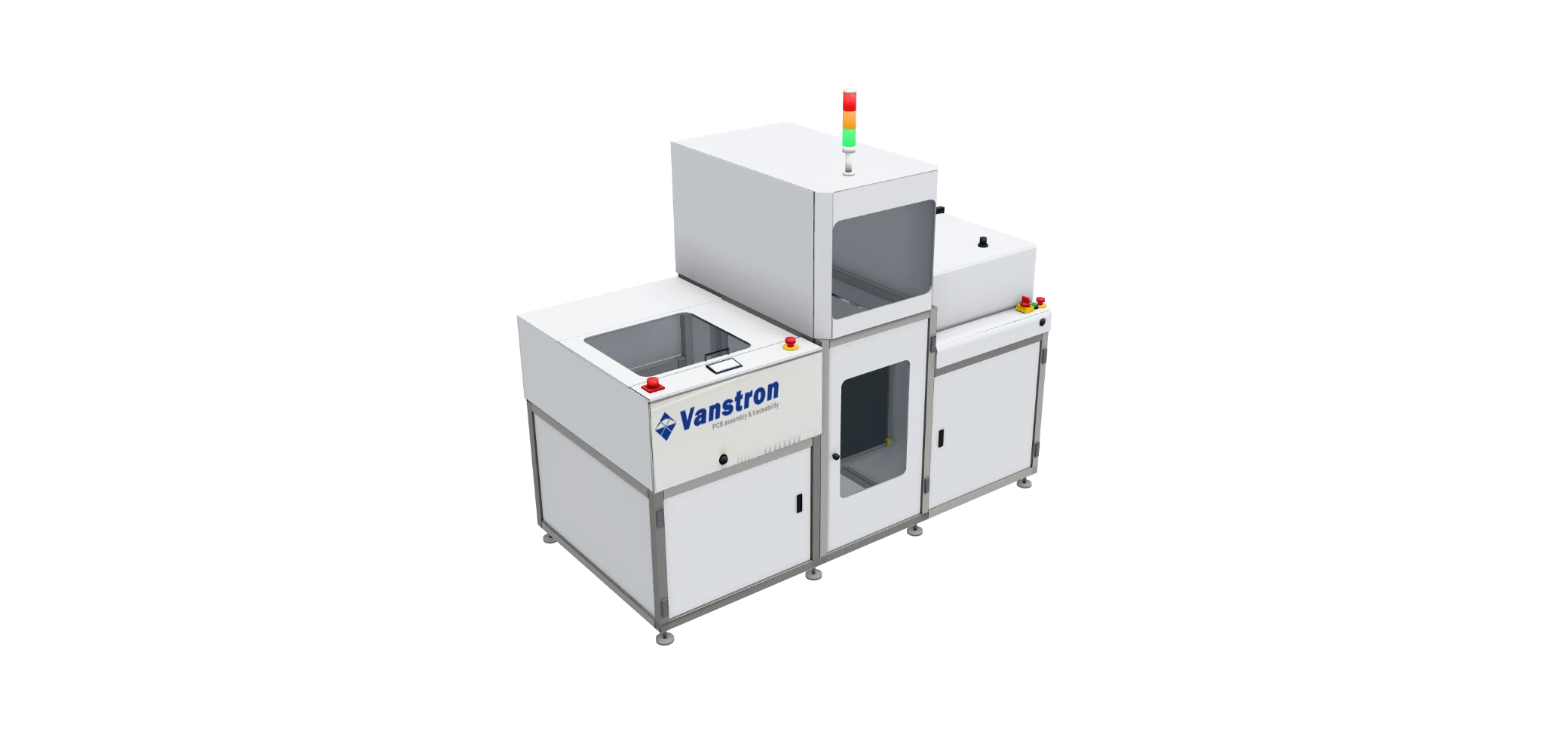

VanstronLoader and destacker ALDLoads from a single magazine or destacks bare boards -
3D rendering

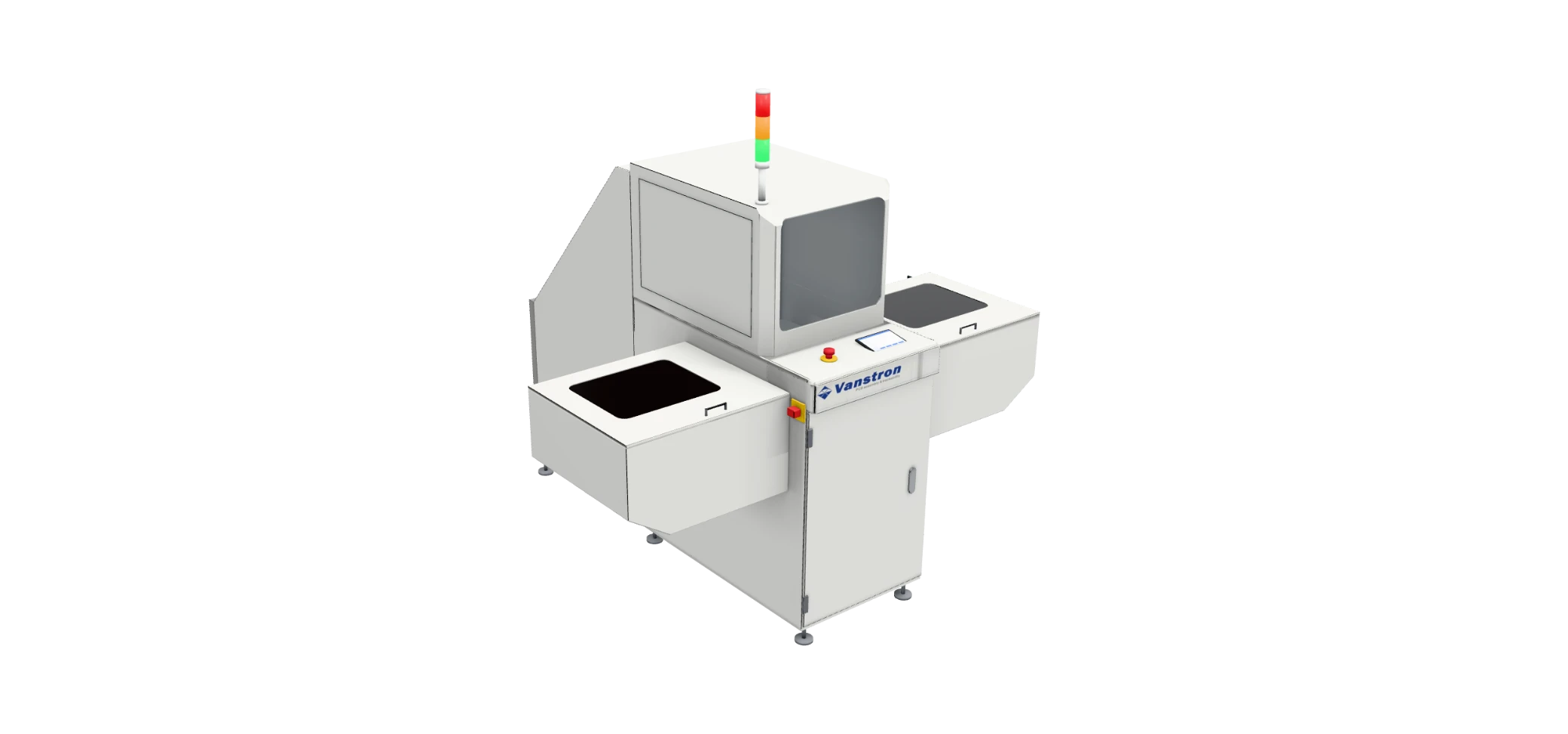

VanstronLoader and unloader for AOI island ASUDLoads and unloads the AOI from the same side -
3D rendering

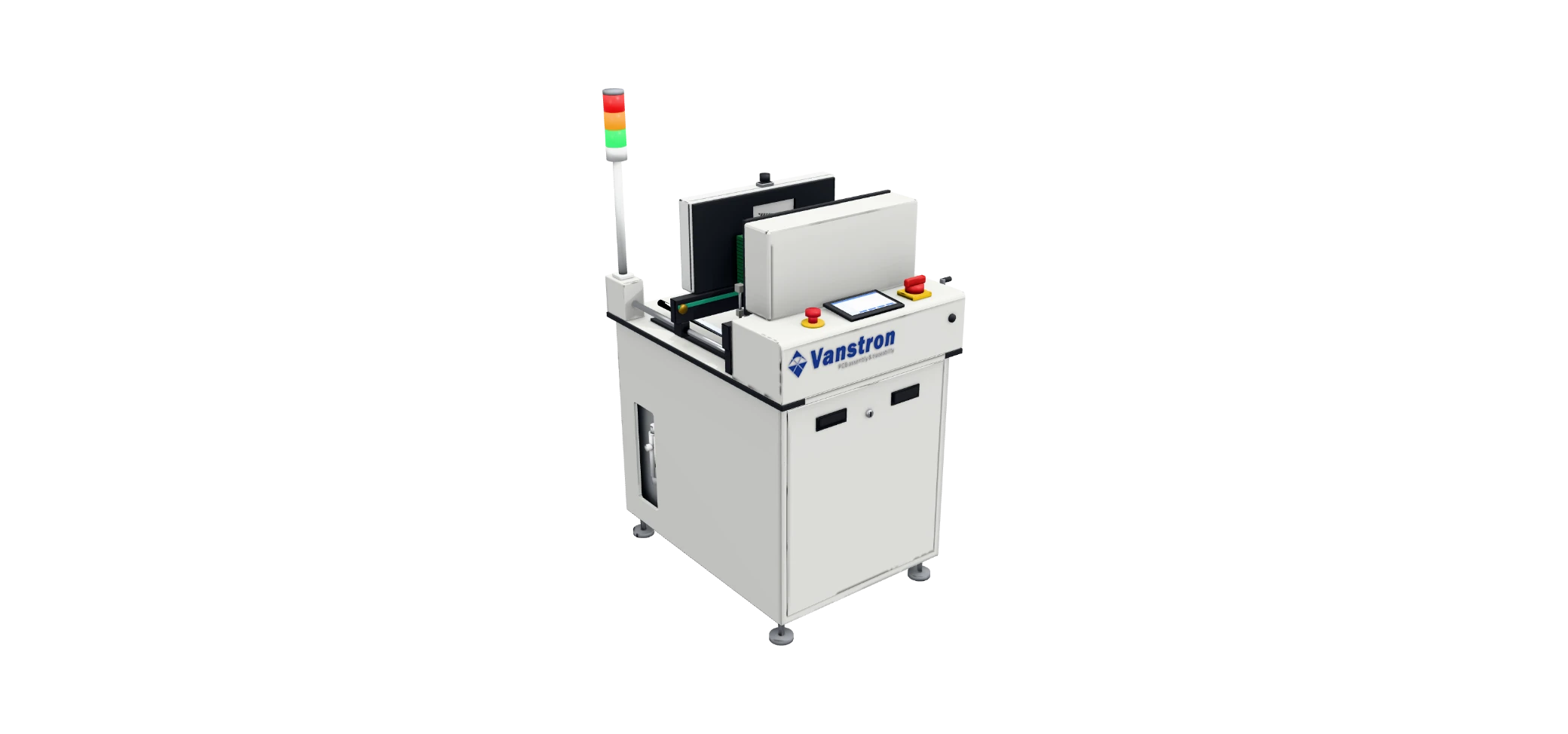

VanstronBare board destacker DL-460Feeds the line with stacked bare boards -
3D rendering
VanstronSingle-magazine unloader LSULCollects boards from the line into a magazine -

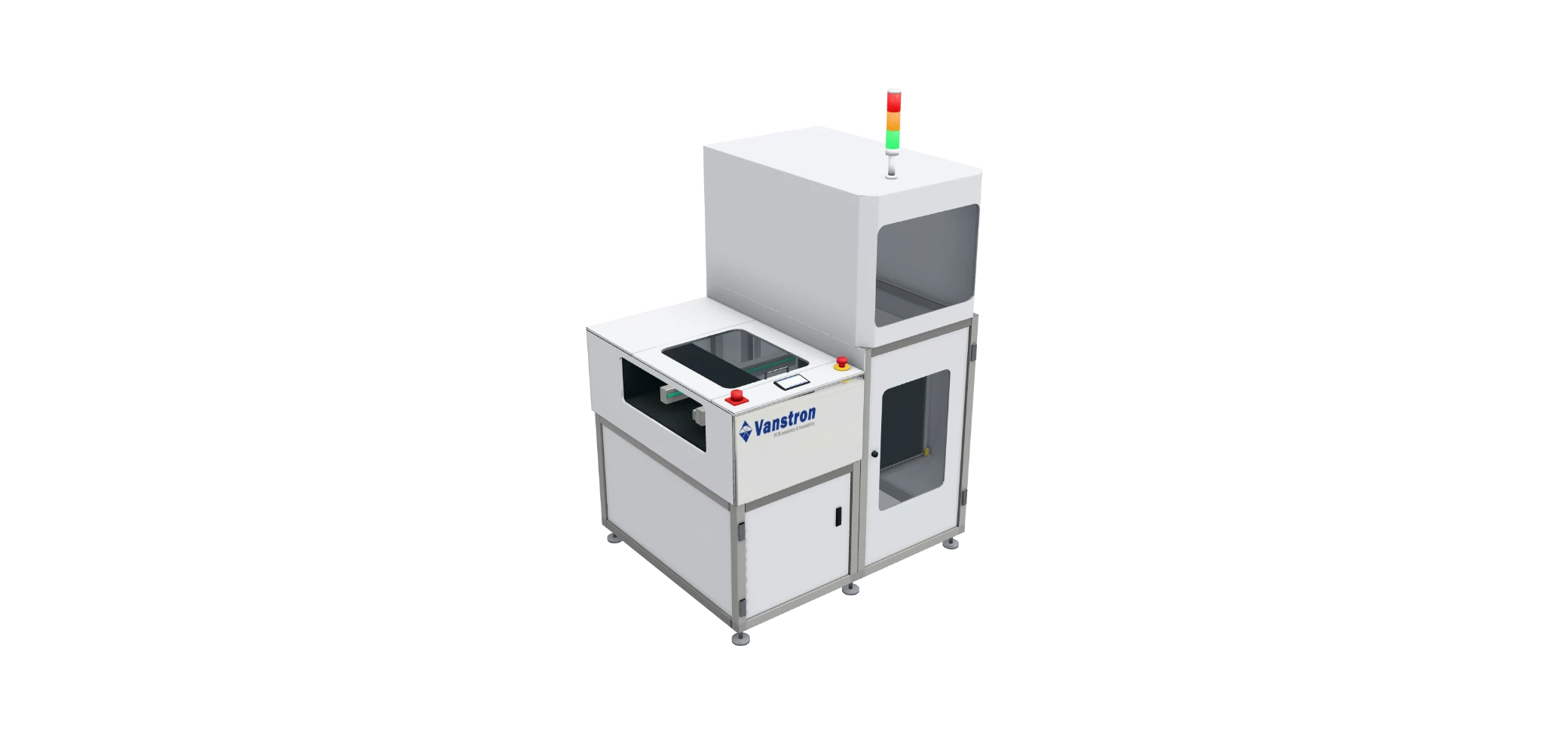

VanstronSingle-magazine unloader SUL-LS-EThe magazine is changed from the rear -
VanstronLightweight single-magazine unloader LTU-460LS-ECompact unloader to save line space -
VanstronCompact multi-magazine unloader ASULFour magazines in less line length -
3D rendering

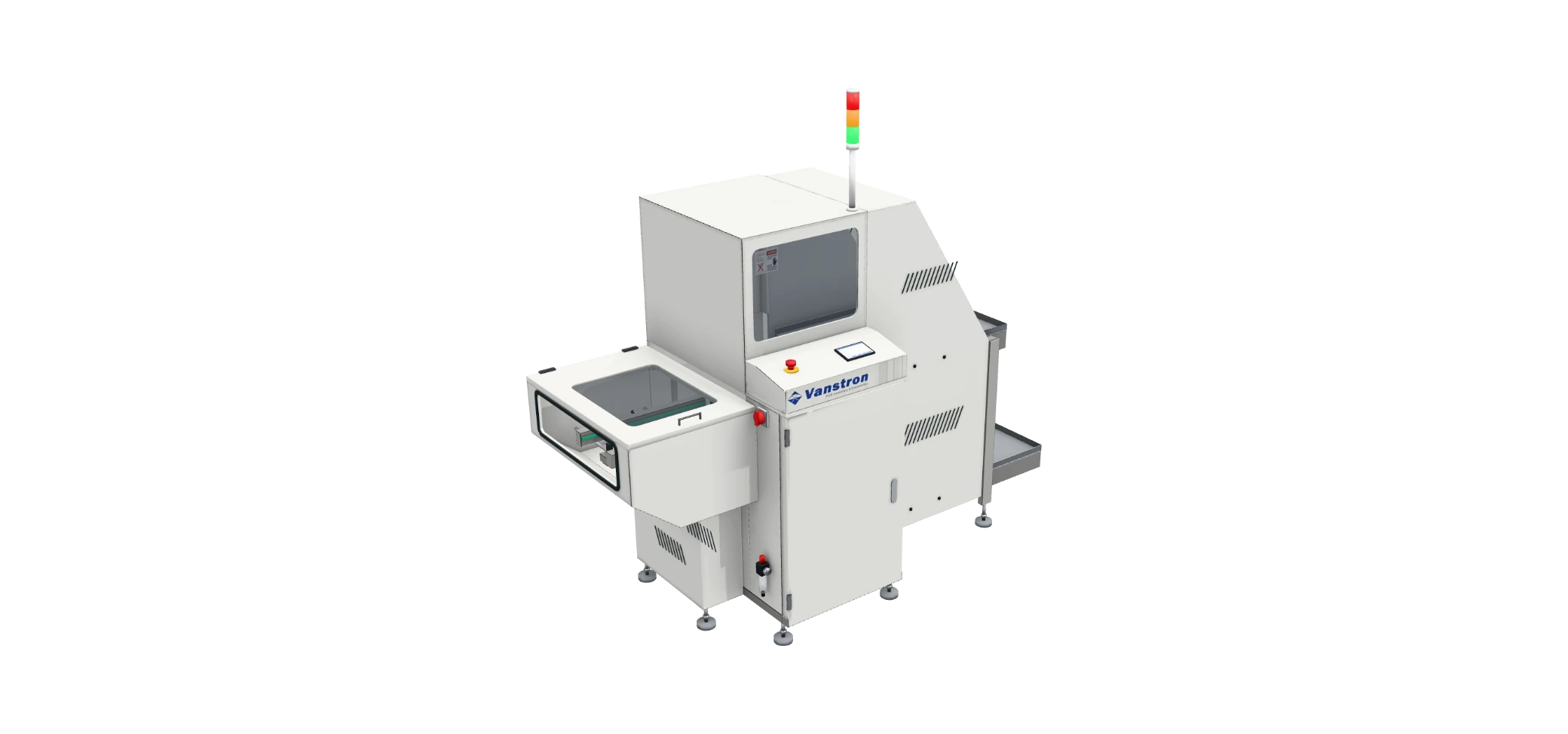

VanstronMulti-magazine unloader SULCollects boards in four magazines -
3D rendering

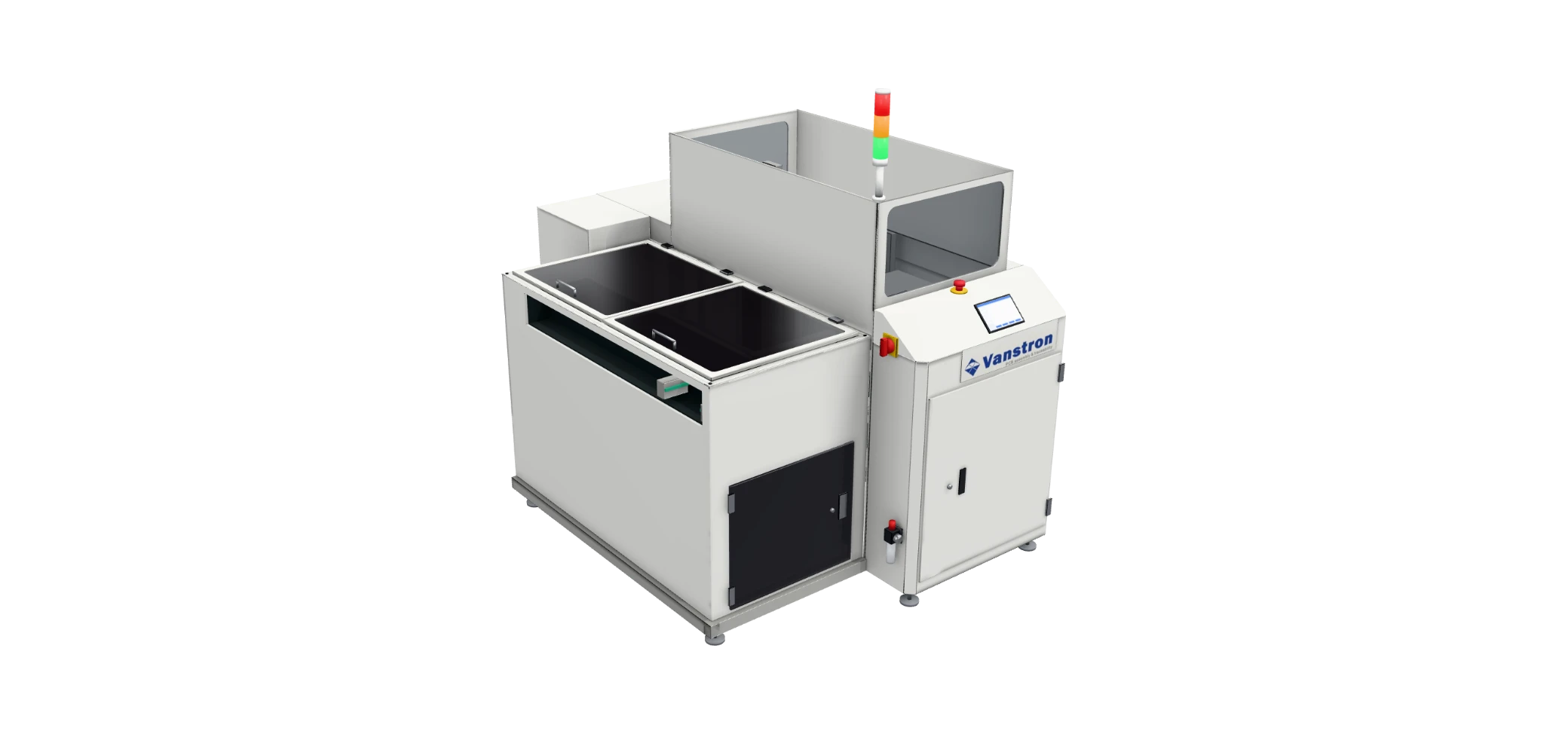

VanstronDual-magazine NG/OK unloader DSULSeparates good and bad boards into different magazines

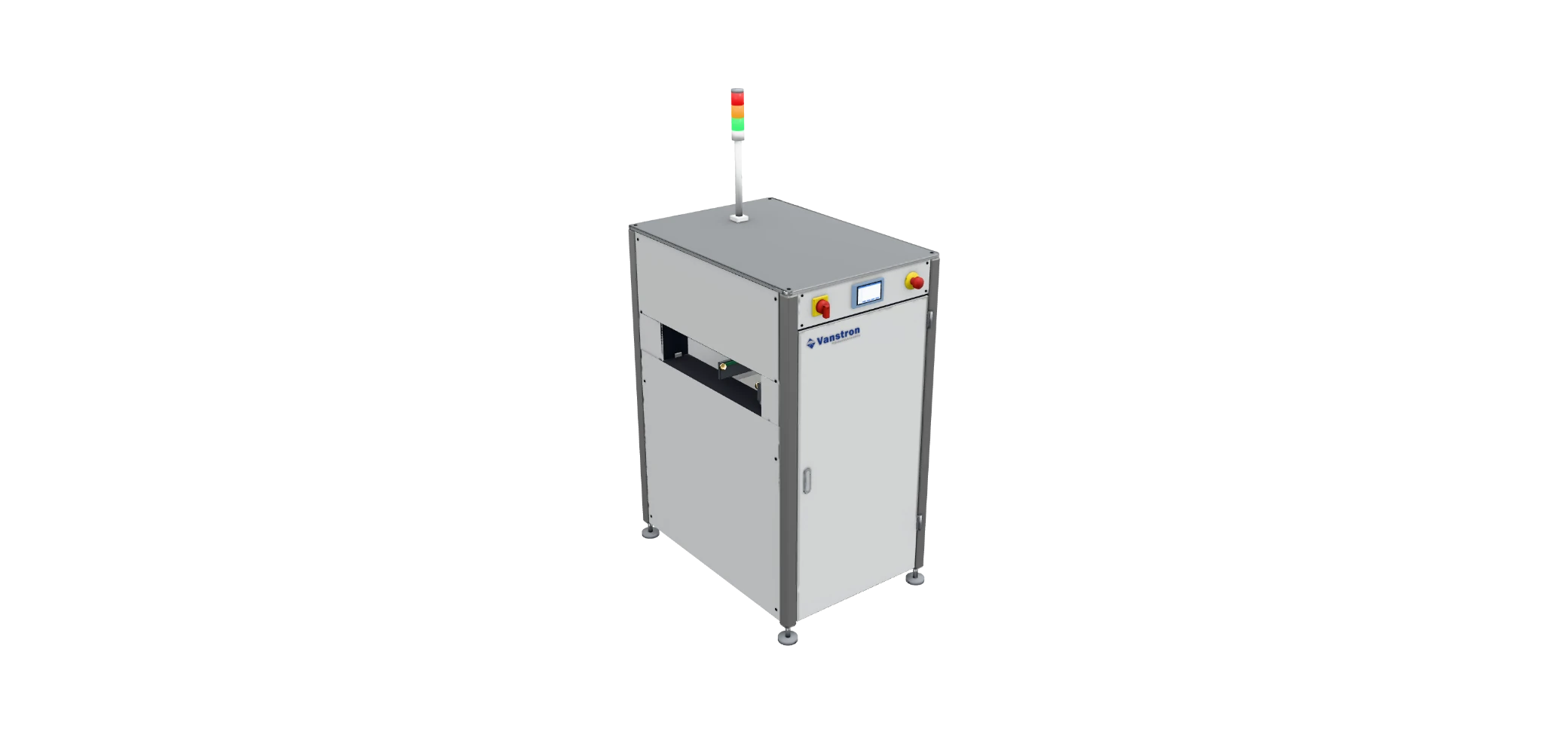

Cleaning. Board handling · 1 machine.
Conveyors. Board handling · 5 machines.
-
3D rendering

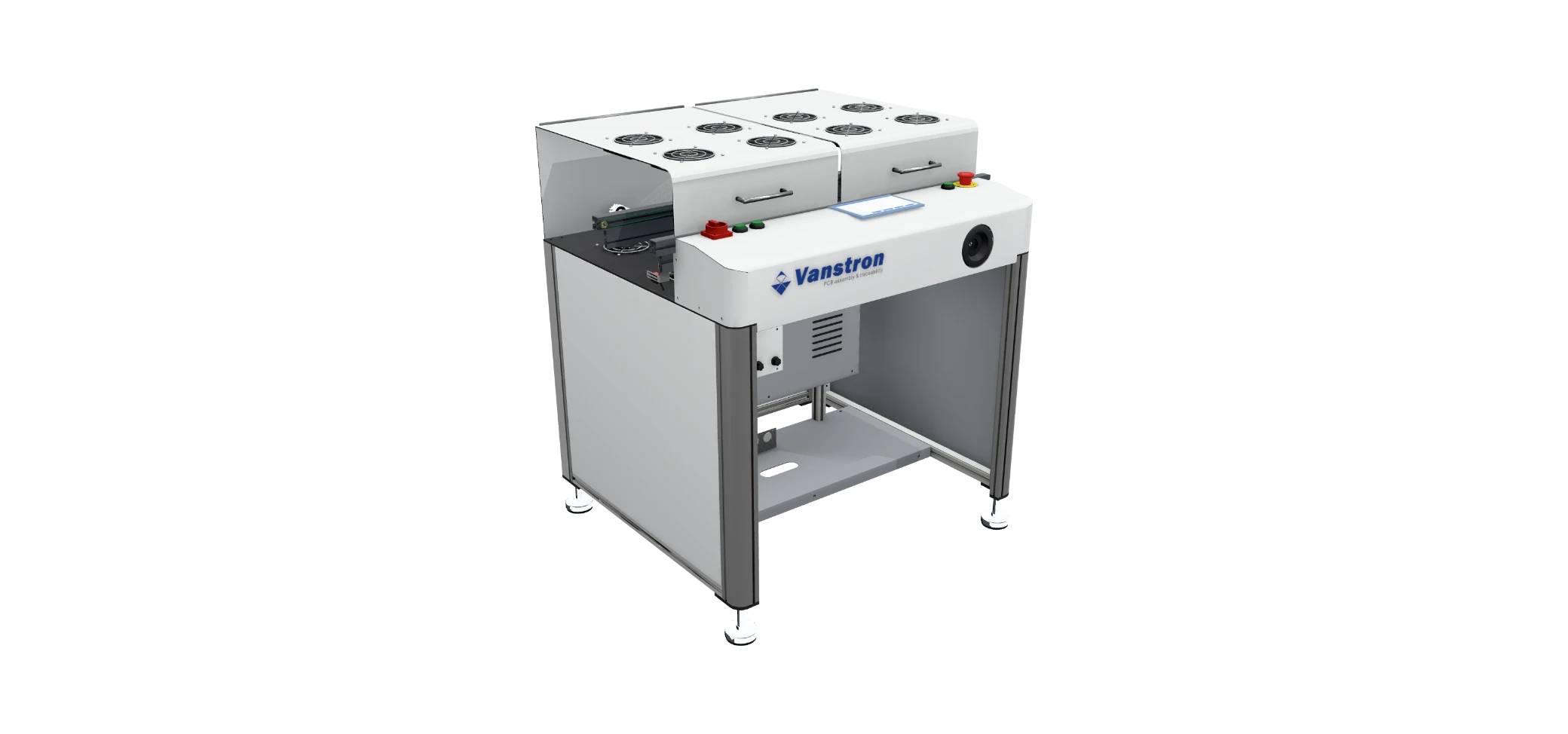

Vanstron1000 mm cooling conveyor PTB-460SE-1000CCools the board at the oven exit -
3D rendering

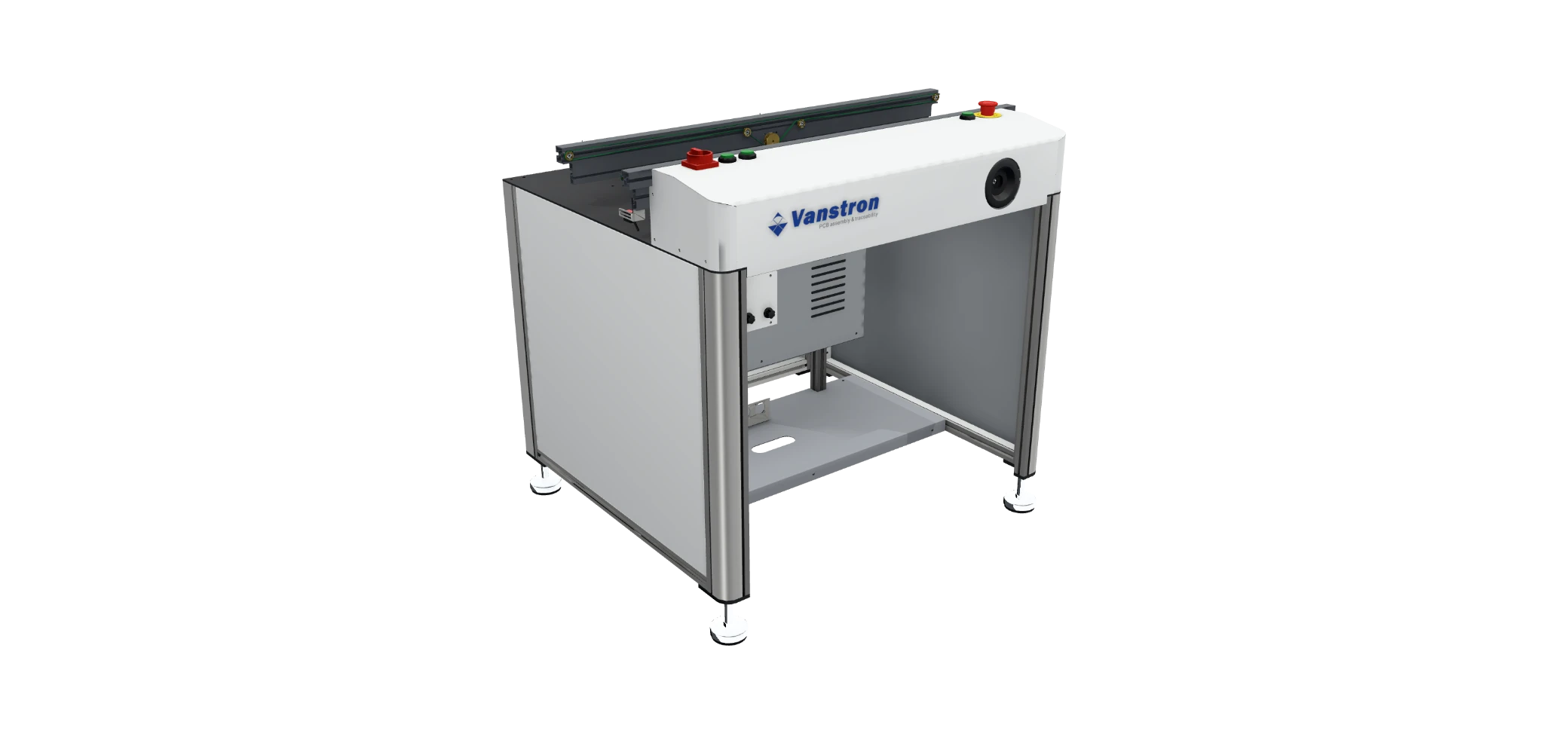

Vanstron1000 mm link conveyor PTB-460SE-1000Links two machines in the line -
3D rendering

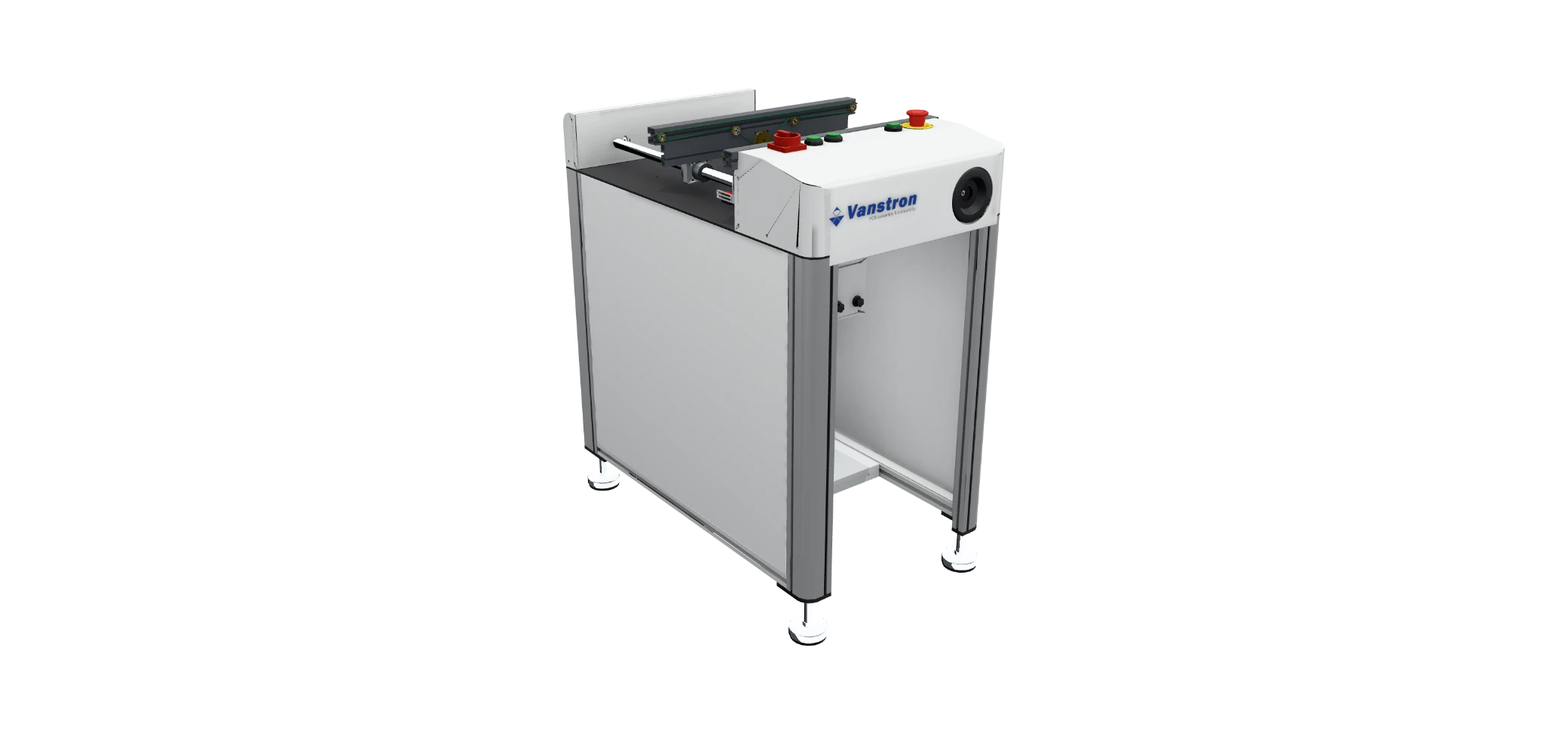

Vanstron500 mm link conveyor PTB-460SELinks two machines in the line -
3D rendering

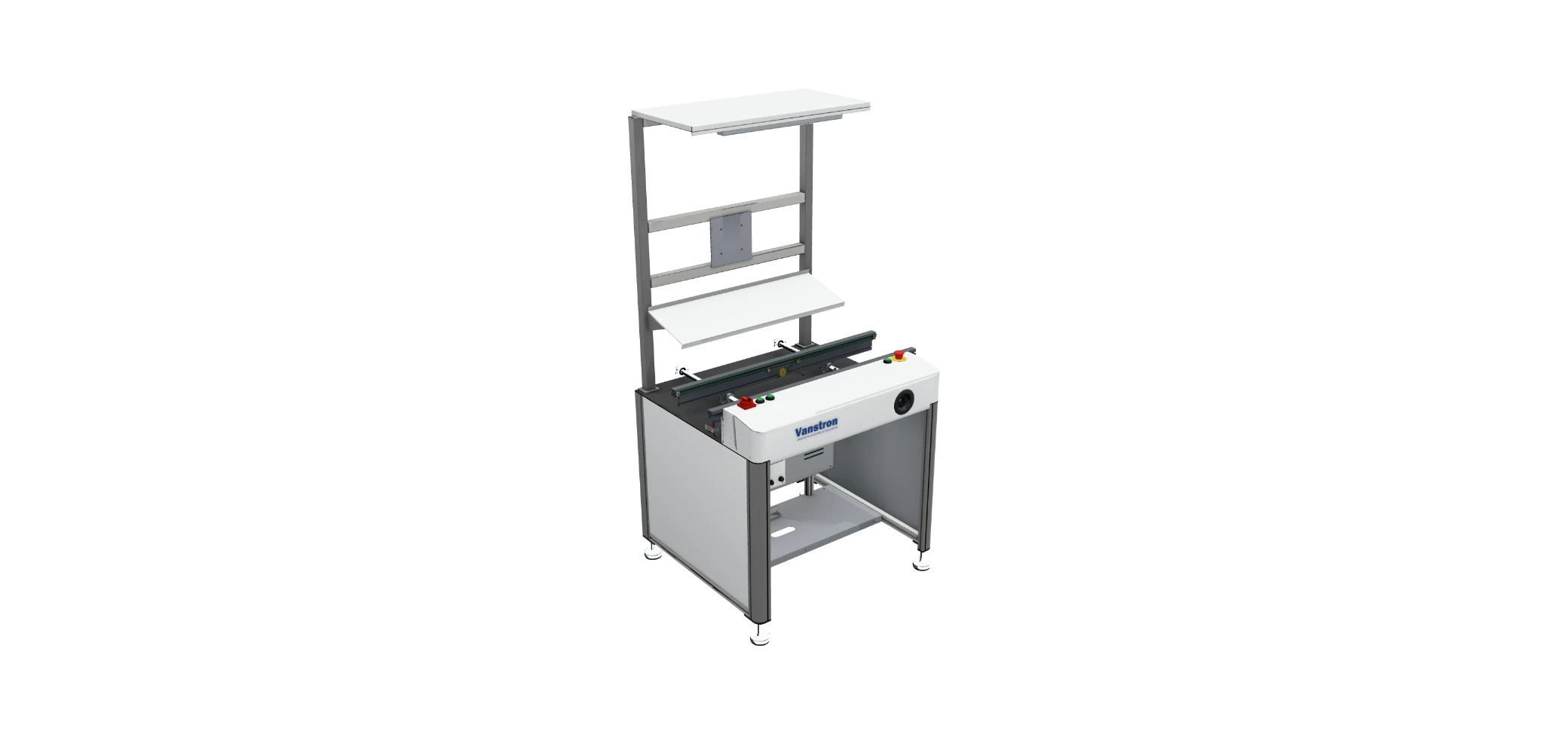

VanstronInspection conveyor PTB-460SE-1000 INStation for visual board inspection in the line -
3D rendering

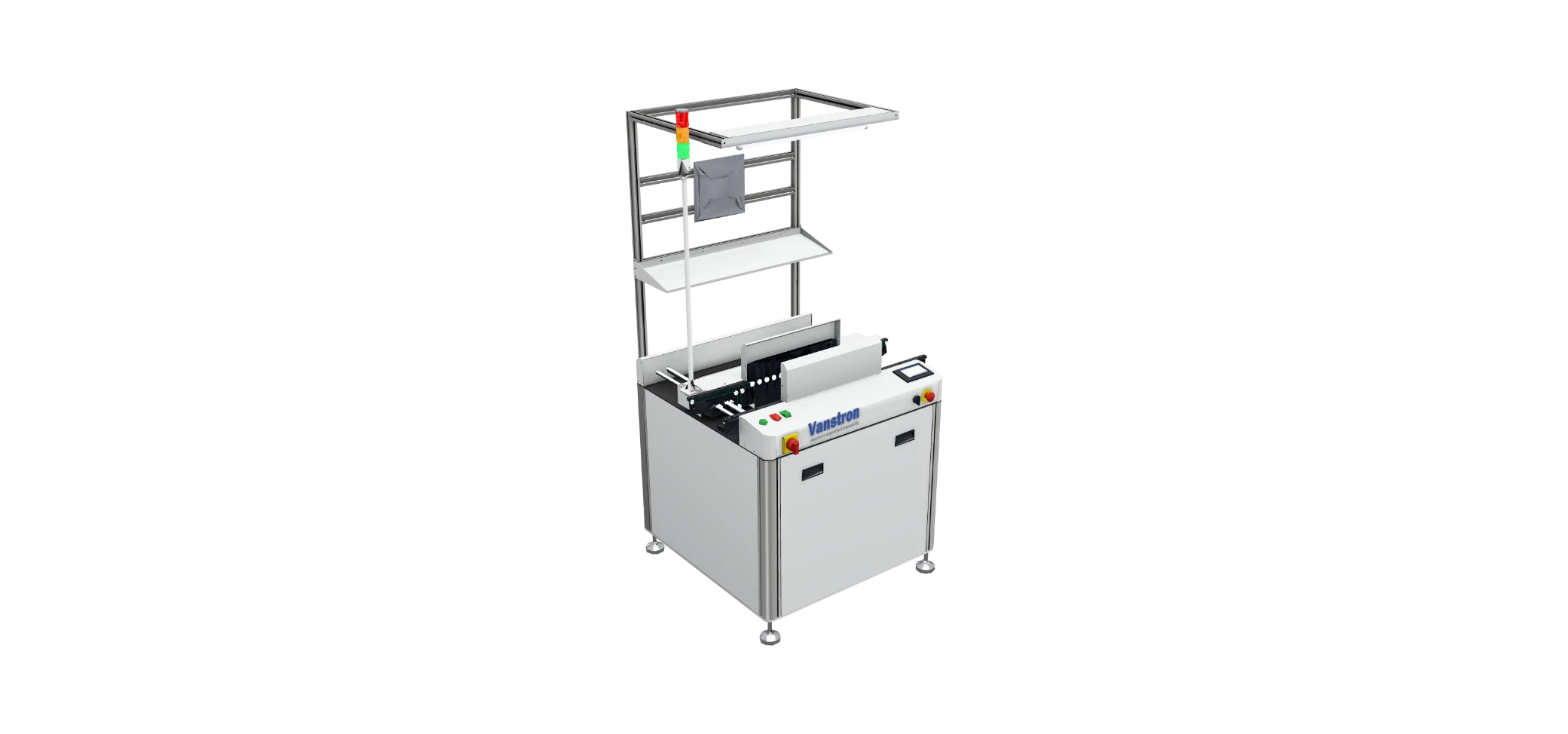

VanstronNG reject conveyor RE-460Diverts bad boards after inspection
Traffic control. Board handling · 13 machines.
-
3D rendering

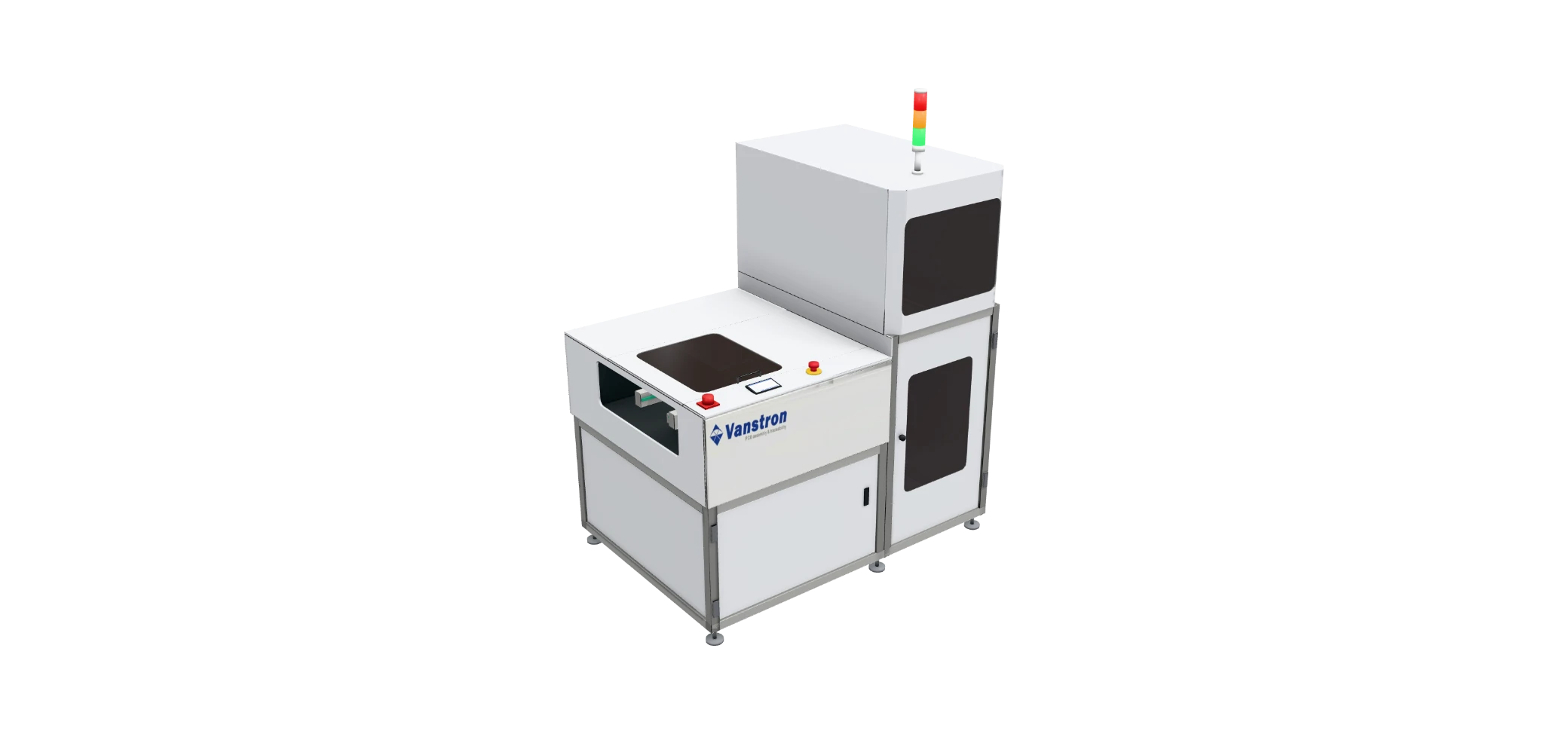

VanstronSingle-magazine buffer VB-LS-ELoader, unloader or buffer with a single magazine -
VanstronDual-lane vertical buffer VB-460 D20 boards per lane, 40 in total -
3D rendering

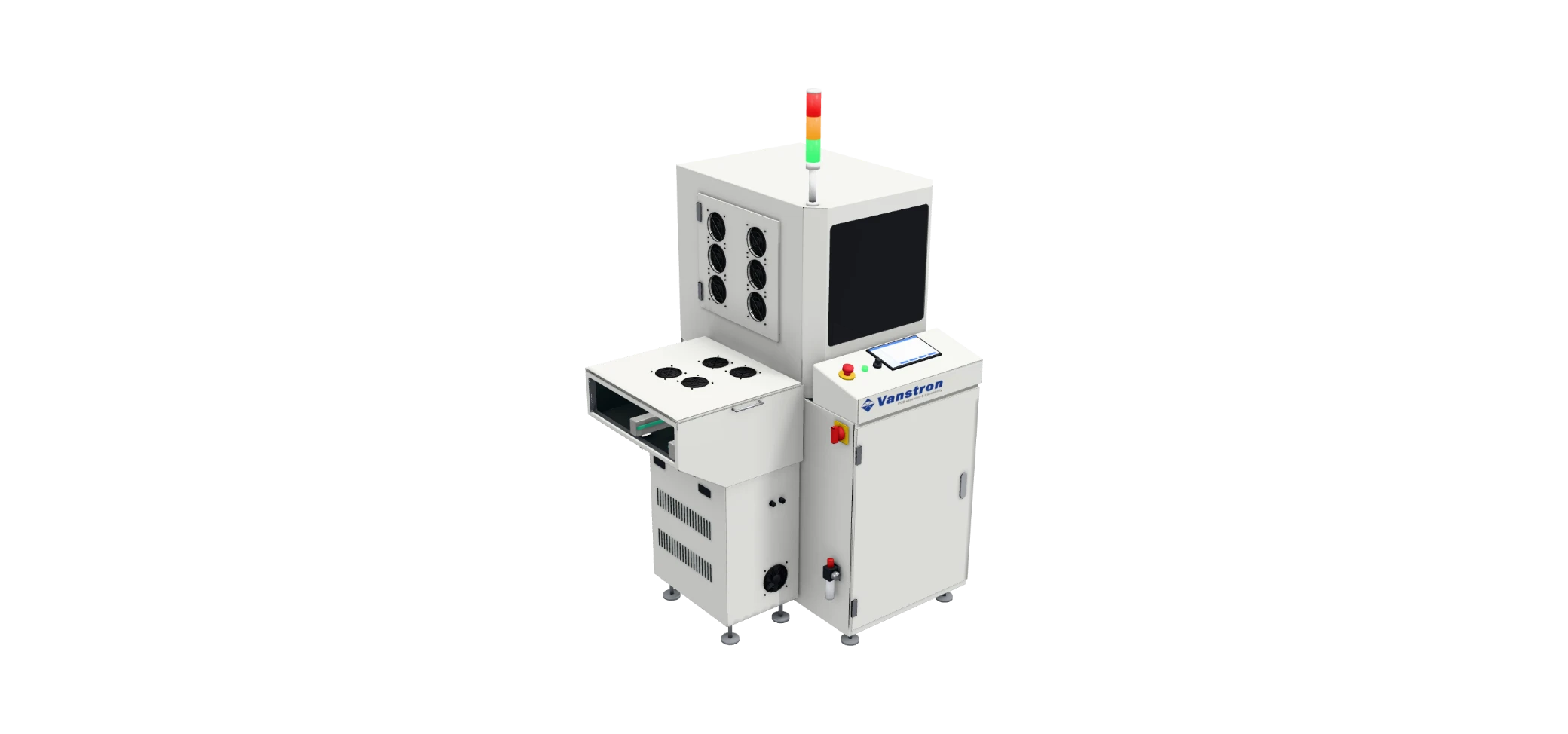

VanstronVertical cooling buffer VBN-460XL-CoolingCools boards from the oven before the AOI -
3D rendering

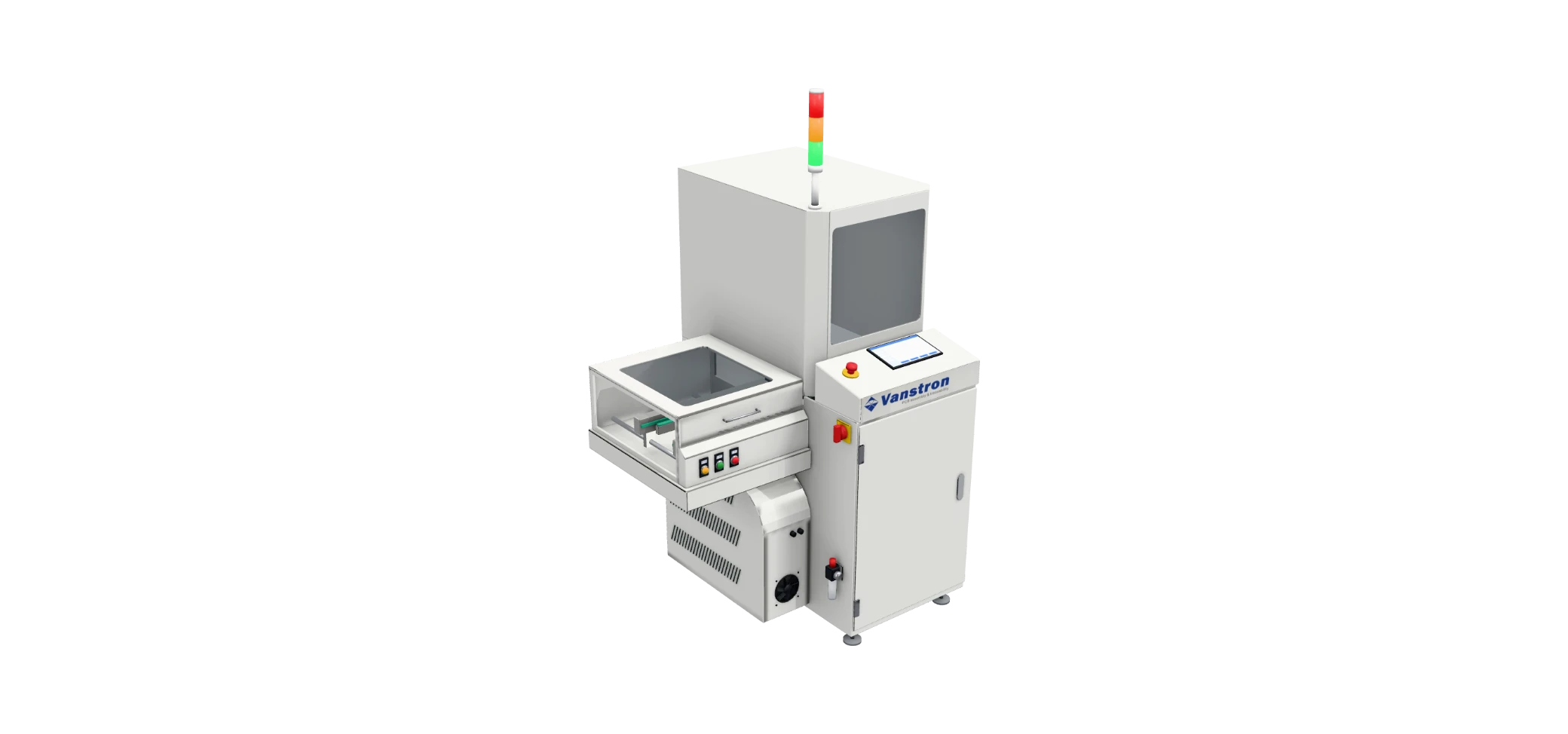

VanstronNG/OK vertical buffer VBN-460XLDiverts bad boards after the AOI or SPI -
VanstronVertical buffer for tall components VB-700S20 boards with up to 70 mm clearance -
VanstronVertical buffer for heavy boards VB-510-20XLBoards up to 5 kg and 100 kg in total -
3D rendering

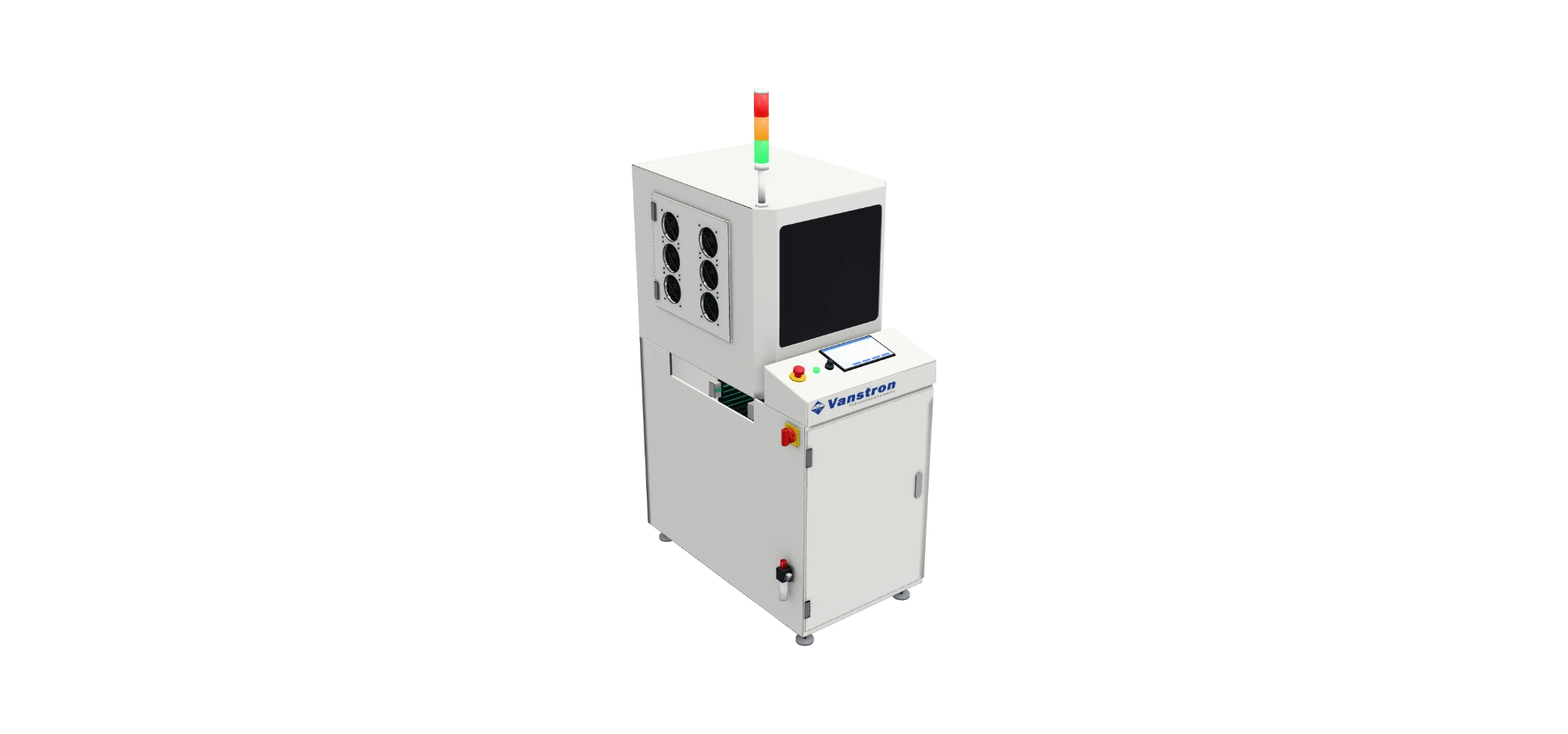

VanstronVertical buffer VB-460XLHolds up to 20 boards between two machines -
3D rendering

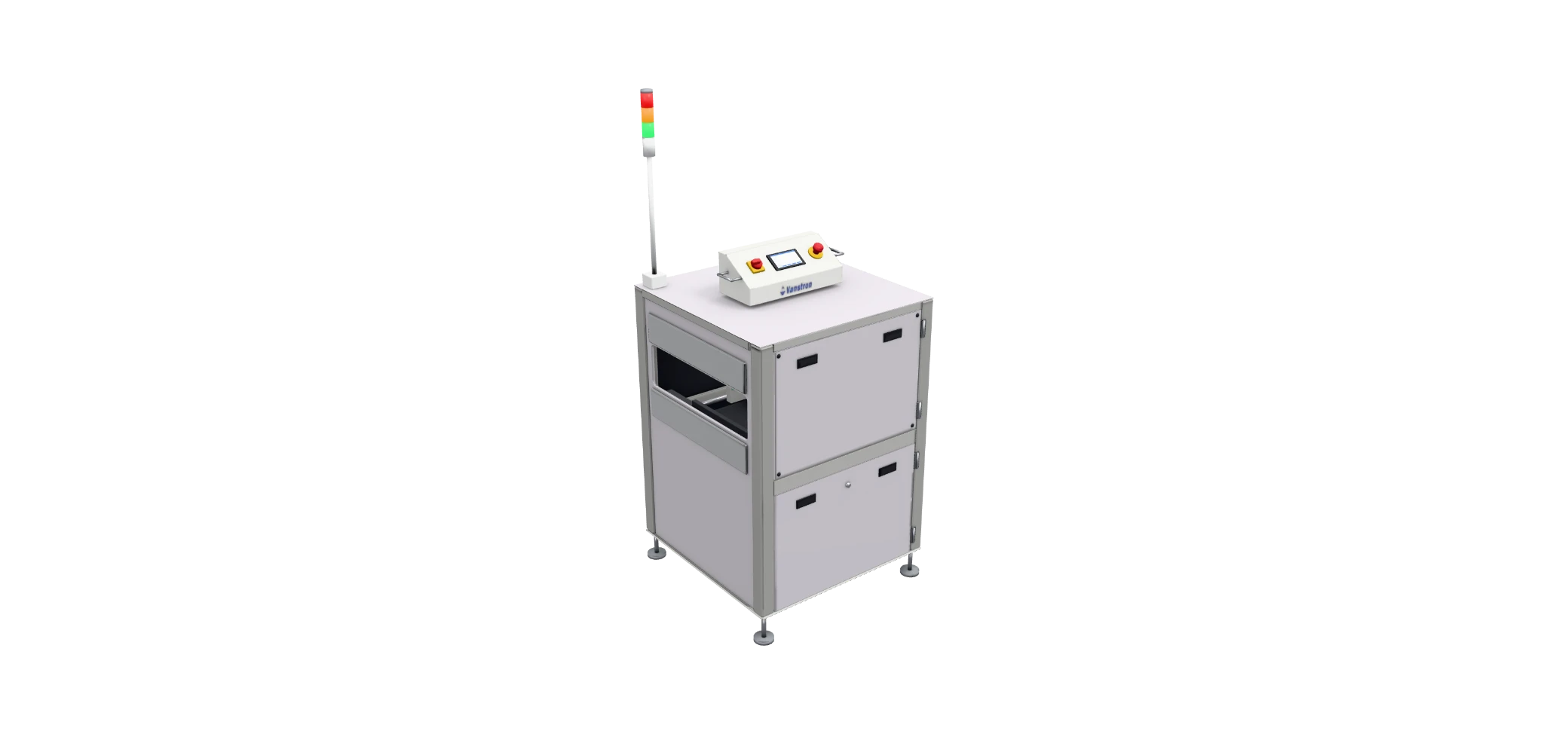

Vanstron90° turn conveyor TRC-460Turns the board 90° at the corners of the line -
VanstronHorizontal turn conveyor TRM-460Rotates the board horizontally to change its orientation -
3D rendering

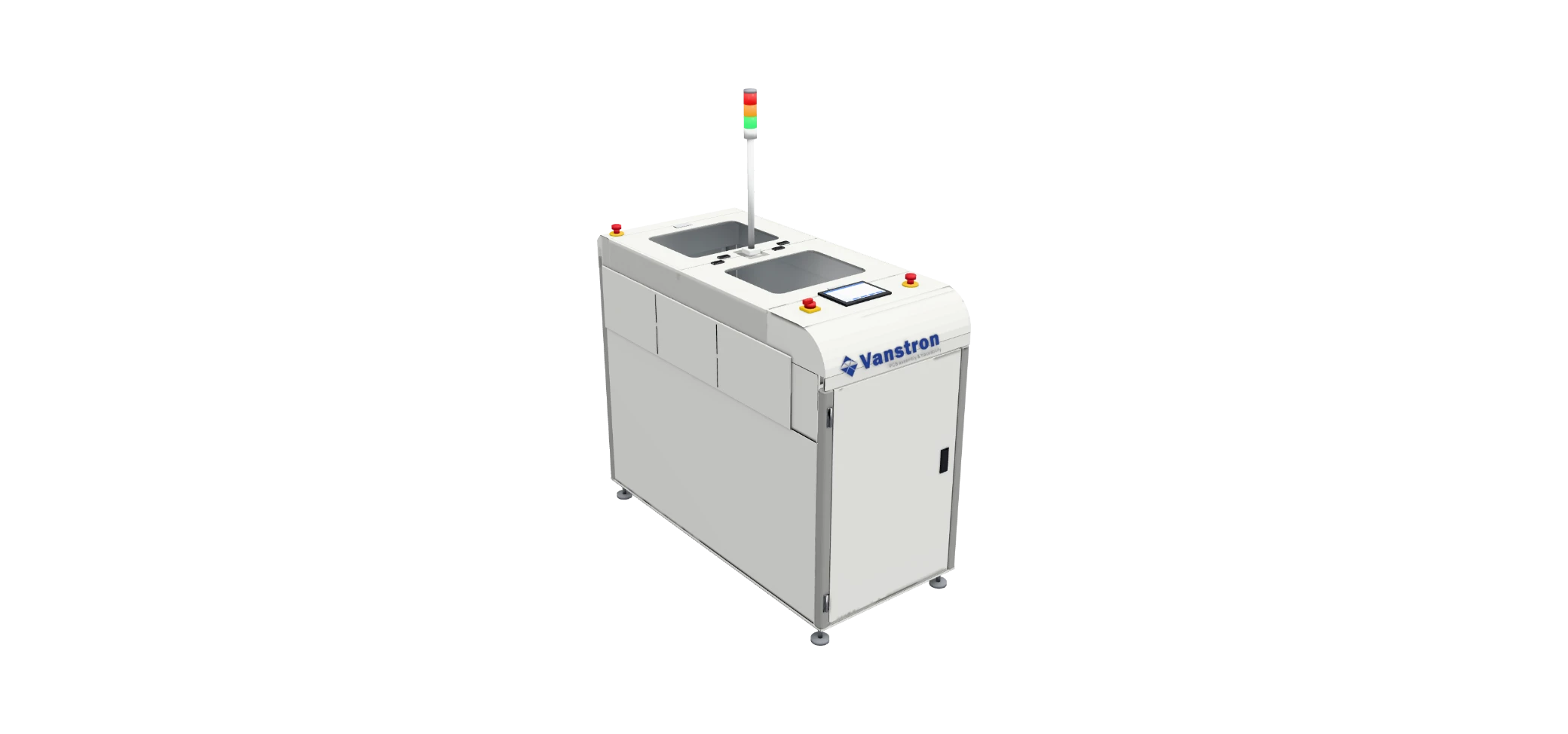

VanstronShuttle conveyor TRS-460Splits boards from one line into two, or merges two into one -
3D rendering

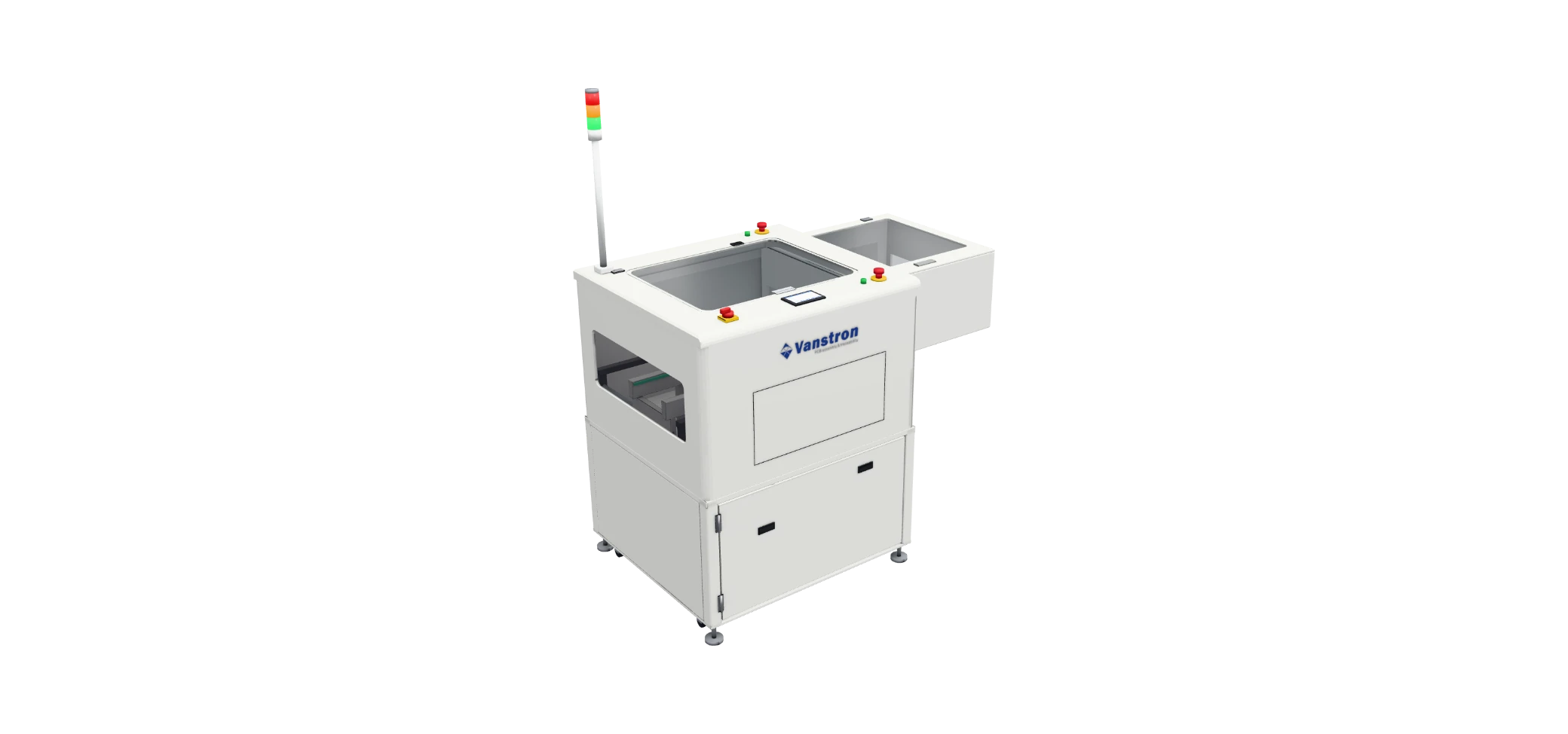

VanstronTelescopic gate conveyor TG-460Opens a 600 mm passage for the operator -
VanstronVertical mini buffer VB-460MinCompact buffer for 10 boards -
3D rendering

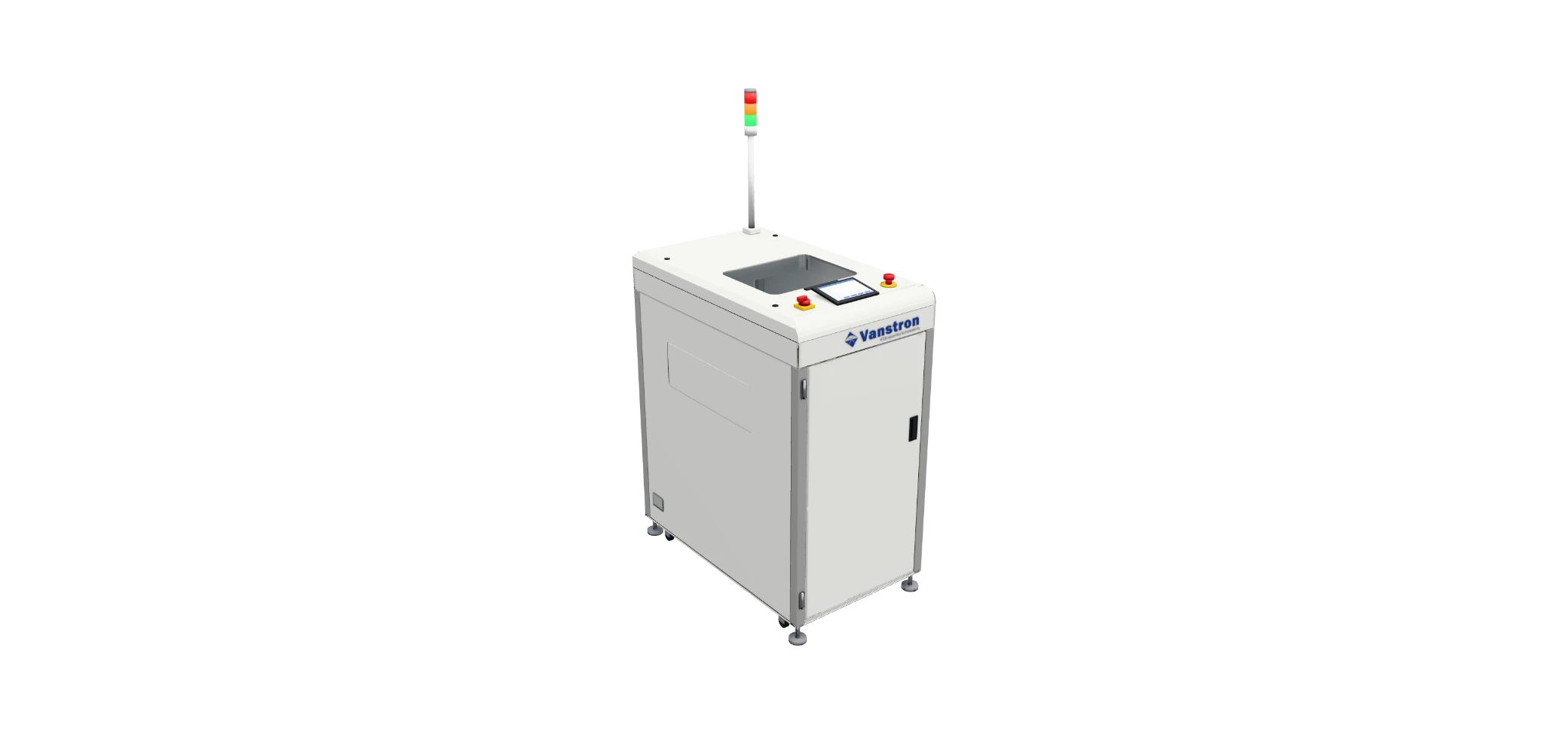

VanstronBoard flipper TRA-460Flips the board to assemble the other side
