Two banks, front and rear.
Up to 112 feeders for 8 mm tape, for production with many part numbers in short runs.
112RF08AS feeders4
Pick & place ·

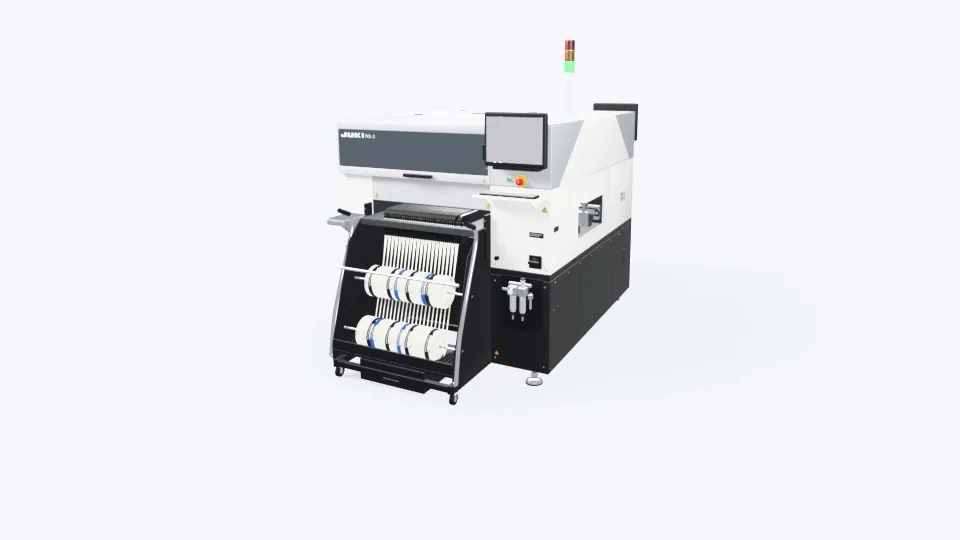

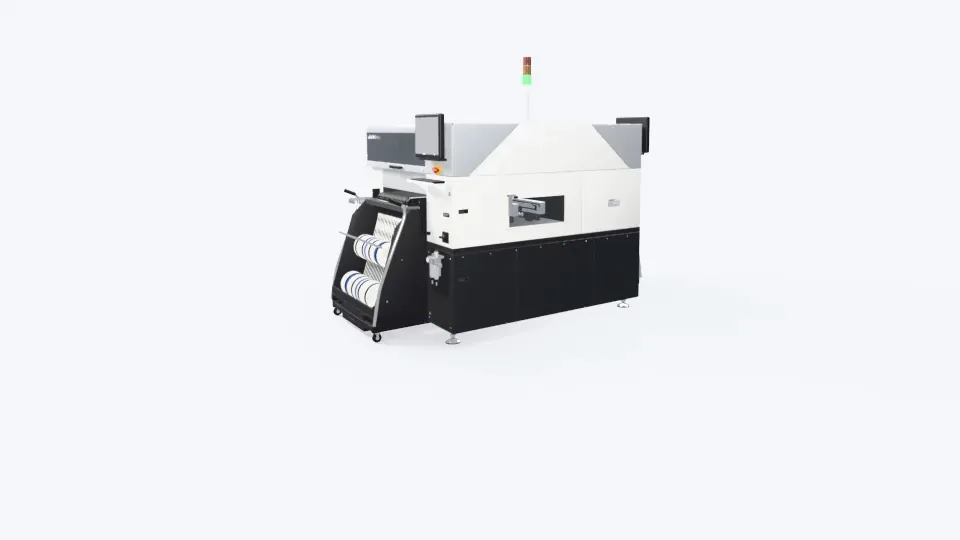

JUKI RS-2
One head, eight nozzles, no wasted trips.
3D rendering.
The essentials.
Compare it with the othersBy bringing the laser sensor closer to the board, the RS-2 shortens the path between pick and place. Fast with the smallest chip and reliable with parts up to 50 mm.
Coming soon
Up close.
Four stops, from the feeders to the board.
Swipe to explore
Eight parts in a single trip.
The TAKUMI head picks up eight parts of different heights and places them without going back for more.
8nozzles, 12 mm apart5
Measures every part on the fly.
Without stopping the head, it checks that the part isn't standing on end, its orientation, its size, that it's still on the nozzle and that it has been released. Above: what the laser sees.
6sensor heights, from 1 to 25 mm6
Every part in its place.
From 03015 chips to 50 mm square parts, with the same head.
±50µmon 1005 chips2
Bwit 3D rendering with its sample board, sized to the RS-2: nozzles 12 mm apart, RF feeders and parts from 03015. At the laser stop, the “What the laser sees” box is a Bwit drawing.
TAKUMI head
Eight nozzles.
One trip.
Coming soon
Picks up eight parts before returning to the board, and the laser measures each one in transit, without stopping to look: from 03015 chips to 50 mm square parts.5
Three RS-2 highlights
Built for high-mix.
From 03015 to the largest part.
Coming soon
JUKI RS-2 brochure, p. 3: “This setup is ideal for multi-product, small-lot production with minimized setup times.”
Built for your boards.
- Coming soon
Control electronics. A 690-part board with an STM32H7. - Coming soon
Up close. Chips and ICs in a single pass. - Coming soon
Step by step. Bare board, with paste, and assembled. - Coming soon
Your board, here. Send us your board and we'll show you how it builds it. Request a quote
Runs itself. Almost.
- Coming soon
Touchscreen. Operate it with a finger or a stylus. - Coming soon
Nozzles. It changes them on its own. - Coming soon
Automatic width. Adjusts to each board. - Coming soon
Second screen. Optional, at the rear.
JUKI · RS-2/RS-2XL specifications, p. 7; RS-2 brochure, p. 3 to 5.
The RS-2, from the outside.

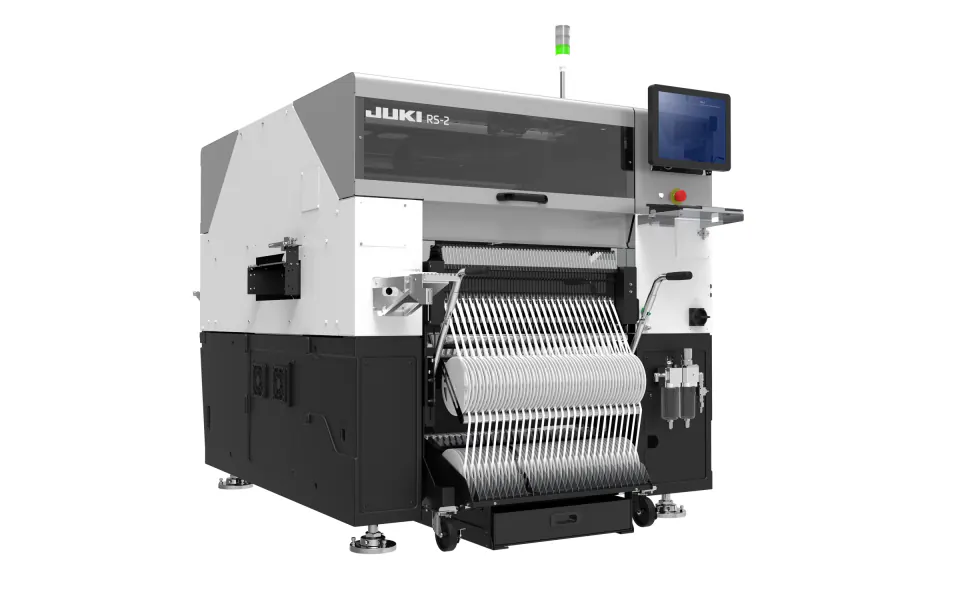

Three-quarter view. The feeder bank, at the front.

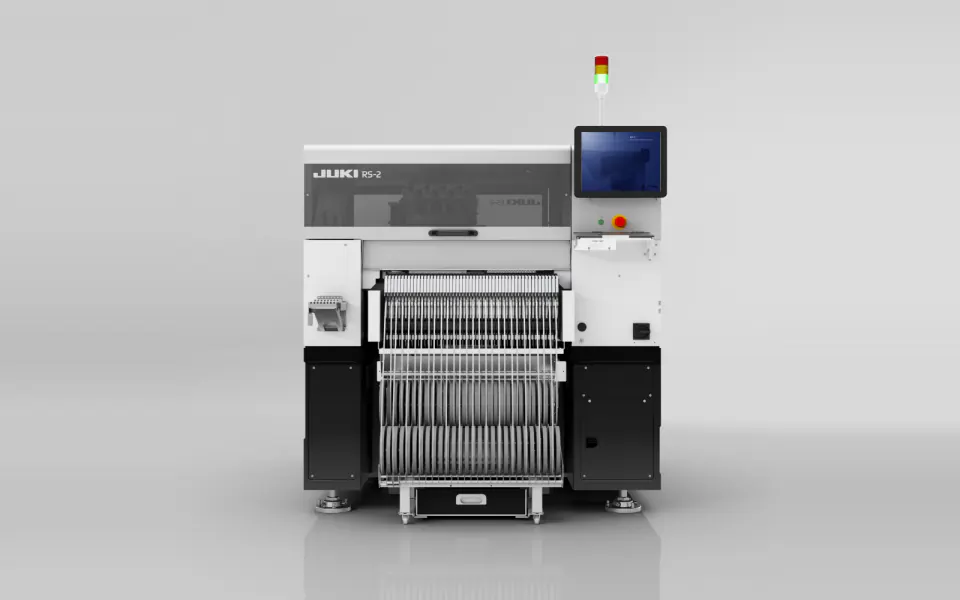

Front.

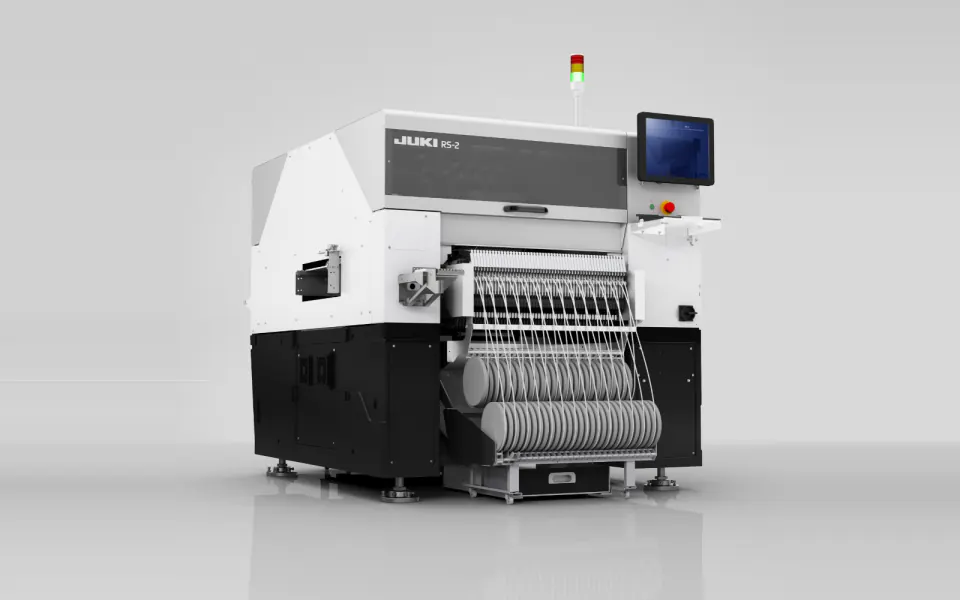

From the left.

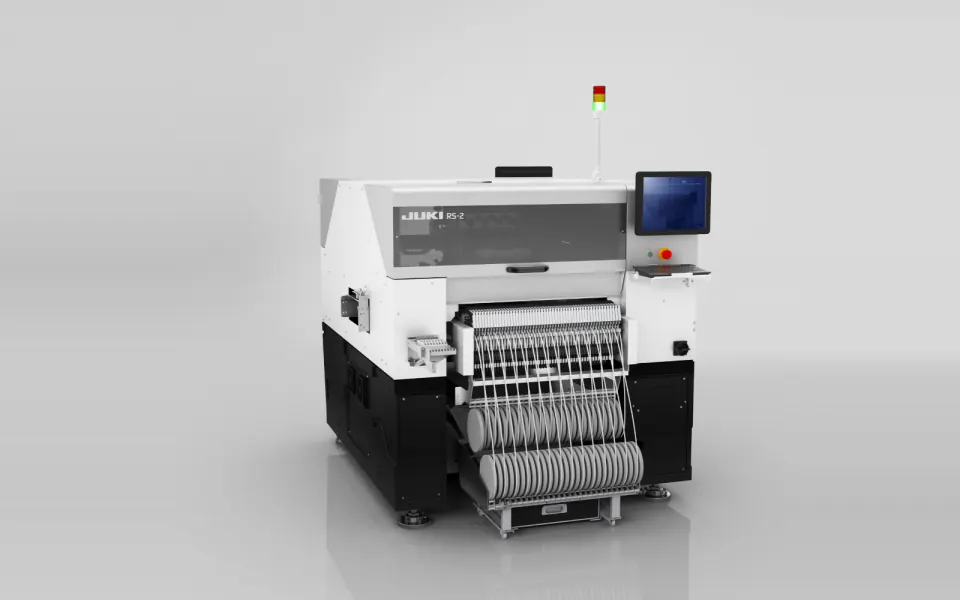

From the right.

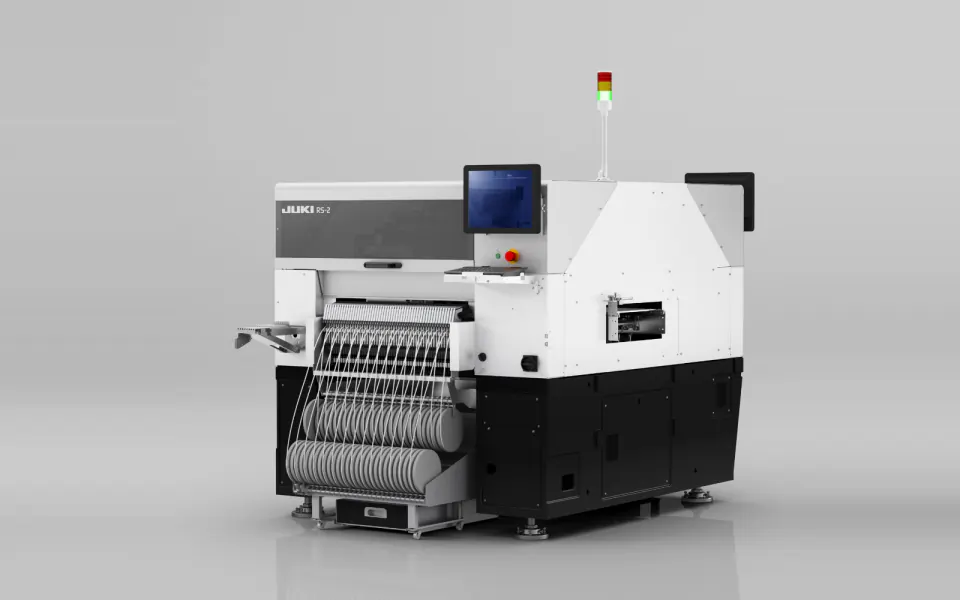

The side. With the board conveyor.
Photos: JUKI. The 3D model is a Bwit rendering.
Tell us the basics.
We'll suggest how to equip it.
With a few details, we suggest the accessories and explain why. Then a Bwit technician fine-tunes it with you.
Your basics. What your board is like and how you work.
Our proposal. Change anything you like.
If you're also interested. Optional.
Why Bwit.
A technician advises you.
We configure the machine for your board and your volume.
Installation.
We commission it at your plant.
Training.
For operators and programmers.
Technical service.
Close to you.
Spare parts.
Nozzles, feeders and consumables.
Choose your pick & place.
Sources: JUKI datasheets (RS-2/RS-2XL, RX-8 and LX-8), JUKI screen printing brochure, GKG G-Star and G-Tera brochures and FRITSCH catalogs. Where a figure hasn't been checked against its PDF, it says “On its product page”.
Technical specifications.
Data from the manufacturer's datasheet8
50 000CPHPlacement speed (optimum)
±50µmPlacement accuracy
800 × 370mmBoard size (maximum, 1 buffer)
25mmComponent height
0.3 – 6.0mmBoard thickness
Board5 specs
- Board size (minimum)
- 50 × 50 mm
- Board size (maximum, 1 buffer)
- 800 × 370 mm
- Board size (maximum, 3 buffers)
- 410 × 370 mm
- Board weight
- Max. 3 kg
- Board thickness
- 0.3 – 6.0 mm
Components3 specs
- Component height
- 25 mm
- Component size
- 03015 – 50 × 150 mm (1 × 3 segmented recognition) × □74 mm (2 × 2 segmented recognition)
- Feeder inputs
- 112 component types (with RF08AS feeders)
Performance and accuracy3 specs
- Placement speed (optimum)
- 50 000 CPH
- Placement speed (IPC 9850)
- 32 000 CPH
- Placement accuracy
- ±50 µm (Cpk ≥ 1) on 1005 chips; ±35 µm (Cpk ≥ 1) on 03015 and 0402
Machine2 specs
- Machine dimensions (W × D × H)
- 1 500 × 1 686 × 1 450 mm
- Weight (approx.)
- 1 630 kg
Installation4 specs
- Power supply
- Three-phase AC 200 V (standard version)/Three-phase 200 to 415 VAC (transformer version)
- Apparent power
- 2.2 kVA
- Air pressure
- 0.5 ± 0.05 MPa
- Air consumption
- With vacuum generator: 200 L/min (standard); with vacuum pump: 50 L/min (optional)
Source: manufacturer's datasheet (JUKI).
Download brochure (PDF, 3.6 MB)
Official JUKI brochure · 6 pages.
Automatic pick & place
Frequently asked questions.
Is the advertised speed the real one?
No: the advertised 50,000 CPH is the “optimum” speed. Closer to day-to-day production is the IPC 9850 figure: 32,000 CPH. With your board, we calculate the real one.
I run short batches with frequent changeovers. Is it right for me?
Yes: the RS-2 is designed for short batches, with minimal setup times, and takes up to 112 feeders.
Which components can it place?
From 03015 up to 74 mm square or 50 × 150 mm, up to 25 mm high.
What is its placement accuracy?
±35 µm (Cpk).
What board sizes does it take?
From 50 × 50 up to 800 × 370 mm with double clamping, 0.3 to 6.0 mm thick and up to 3 kg.
How much floor space does it take?
1,500 × 1,686 × 1,450 mm (W × D × H) and 1,630 kg. Before you order, we send you the layout drawing with the access points.
What power and air does it need?
Three-phase 200 V AC (up to 415 V with transformer), 2.2 kVA, and air at 0.5 ± 0.05 MPa: 200 L/min with vacuum ejector or 50 with pump.
Does it connect to the line and to my MES?
Yes: it receives bad-board marks and SPI compensation, and the JaNets software monitors production. Connection to your MES is reviewed case by case.
How does it avoid placing a wrong or defective part?
The laser checks orientation, dimensions and tombstoning; the optional CVS checks resistance, capacitance and polarity, and a coplanarity sensor detects lifted leads.
How do you program a new board? And changeovers?
With visual aids on the layout, and the laser measures each component on its own. For fast changeovers, you prepare the feeders off the machine or on an exchange cart.
Ready to talk about your RS-2?
Request a quote with the configuration you chose. A Bwit technician will review it with you.
Notes
- 50,000 CPH: placement speed under optimum conditions. JUKI, RS-2/RS-2XL specifications, p. 5; RS-2 brochure, p. 2.
- ±50 µm (Cpk ≥ 1): placement accuracy on 1005 (metric) chips, with the LNC120-8 laser; ±35 µm on 03015 and 0402. JUKI, RS-2/RS-2XL specifications, p. 11.
- From 03015 chips (0.3 × 0.15 mm) to 50 mm square parts with the laser, standard; up to 50 × 150 mm and □74 mm with the optional 54 mm camera, which recognizes the part in sections. JUKI, RS-2/RS-2XL specifications, p. 11 and 16; RS-2 brochure, p. 2.
- Up to 112 component types, front and rear combined, with 8 mm RF08AS feeders. JUKI, RS-2/RS-2XL specifications, p. 11; RS-2 brochure, p. 3.
- TAKUMI head with 8 nozzles, 12 mm apart; on-the-fly centering with the head-mounted laser sensor. JUKI, RS-2/RS-2XL specifications, p. 11 and 18; RS-2 brochure, p. 2.
- The laser sensor adjusts its height to each part in 6 levels: 1, 3, 6, 12, 20 and 25 mm. What it checks on each part: RS-2 brochure, p. 5. JUKI, RS-2/RS-2XL specifications, p. 11; RS-2 brochure, p. 2.
- Bank configuration: feeder cart, fixed bank or fixed tray (front only); the exchange cart is optional. RS-2 brochure, p. 3.
- Placement speed per IPC 9850: 32,000 CPH. JUKI, RS-2/RS-2XL specifications, p. 14.
The “Inside” images and videos are 3D renderings by Bwit. Anything marked “Coming soon” isn't the final version yet.
