Coating
Selective conformal coating right where your board needs it, with curing and inspection.
20 machines

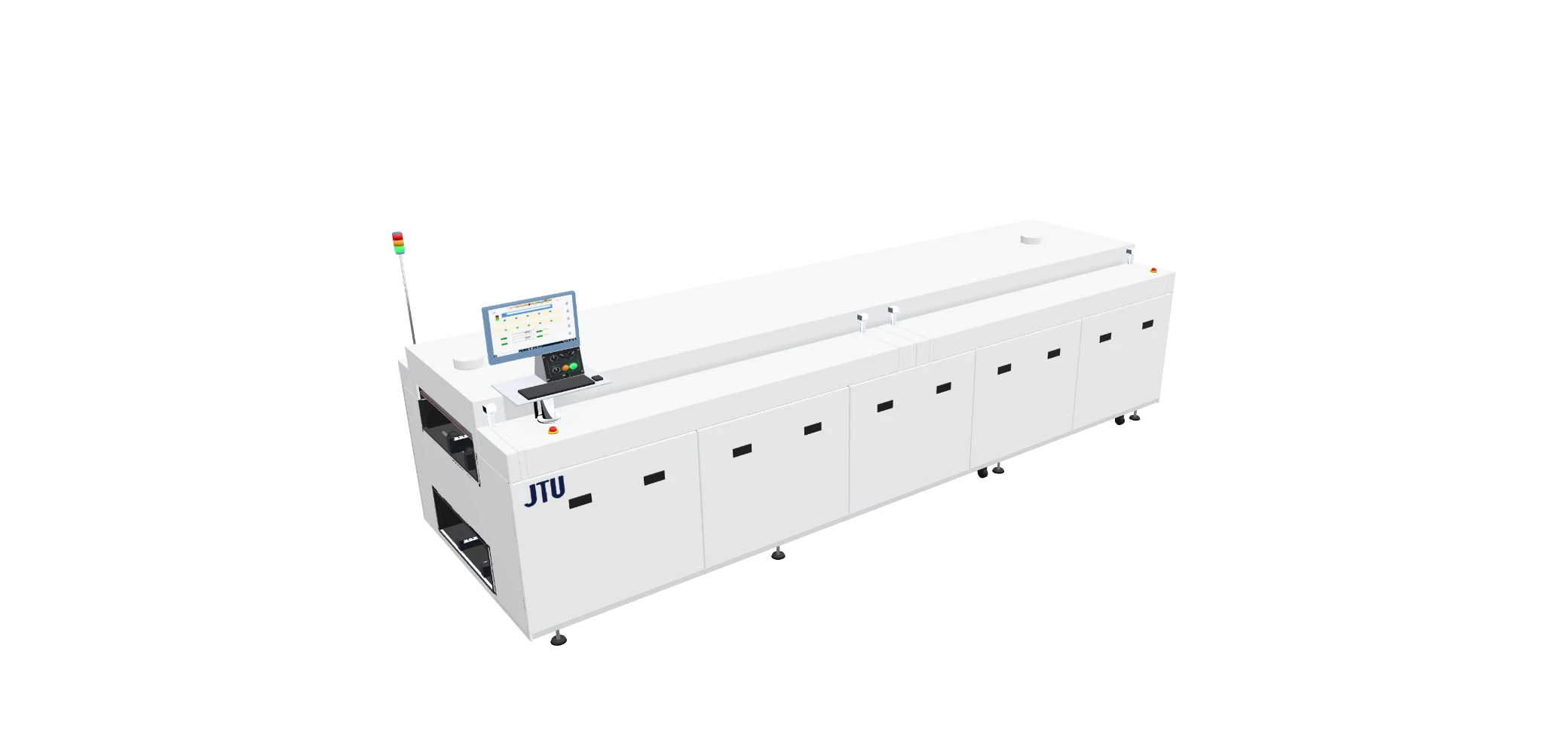

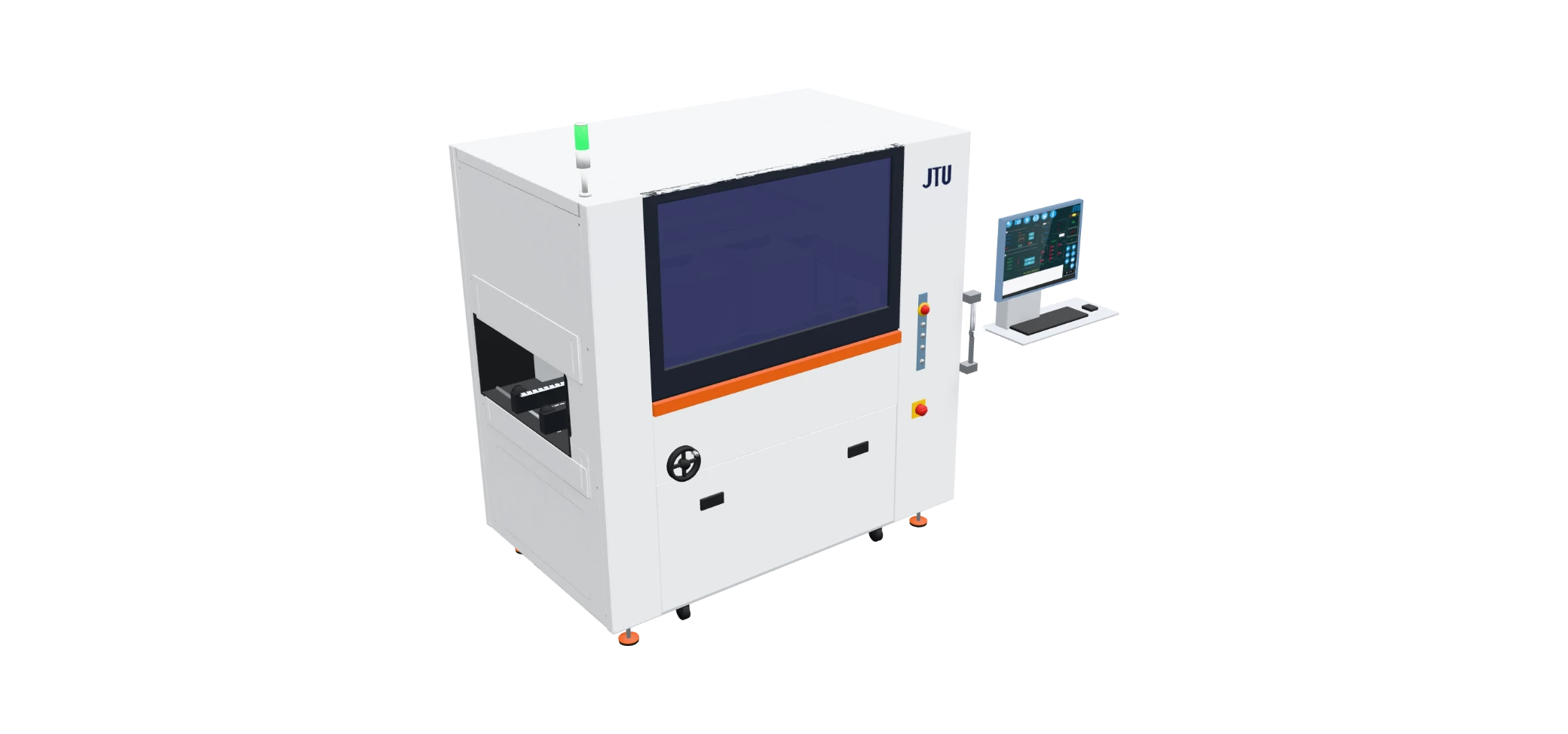

Curing ovens
4 machines

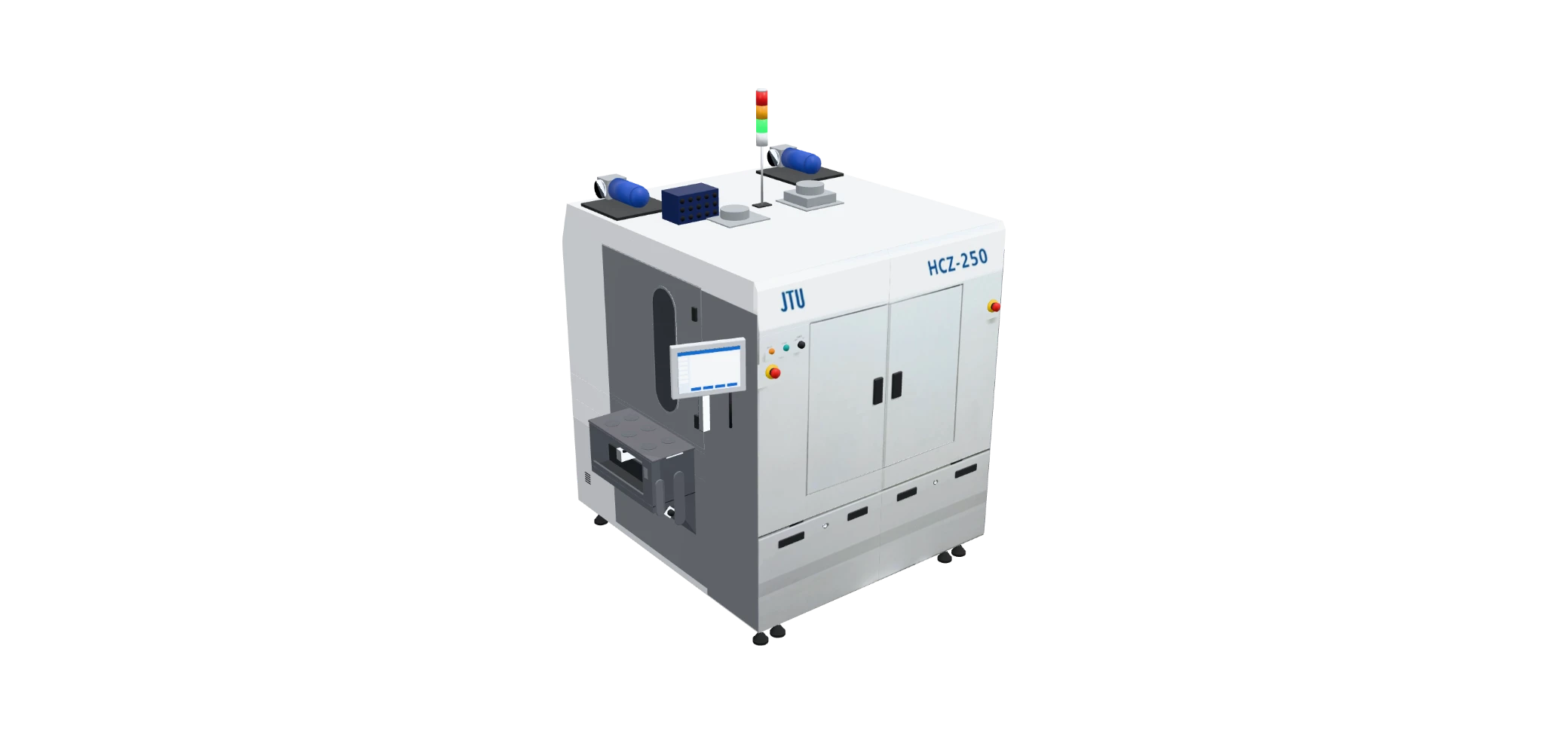

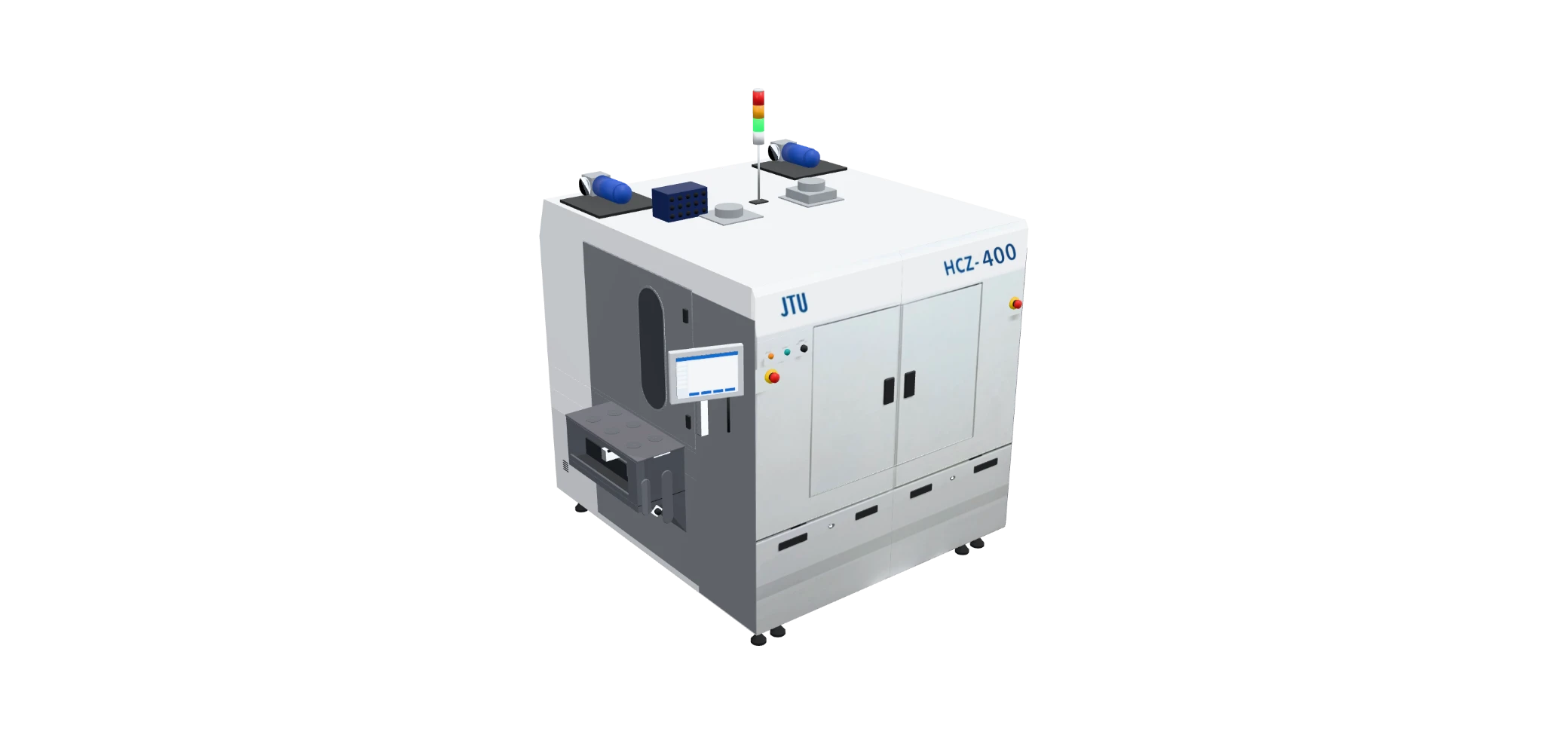

Compare
Board
300(L) × 250(W) mm
450(L) × 400(W) mm
—
—
Conveyor width
—
—
50 – 460 mm (Auto adjustment)
50 – 460 mm (Auto adjustment)
Conveyor speed
—
—
200 – 2 000 mm/min
500 – 3 000 mm/min
Where it says so
Manufacturer’s datasheet (JTU).
Manufacturer’s datasheet (JTU).
Manufacturer’s datasheet (JTU).
Manufacturer’s datasheet (JTU).
Plasma cleaning
1 machine
Selective coating
7 machines
How many valves do you need?
3D renderings
JTU · Three valves

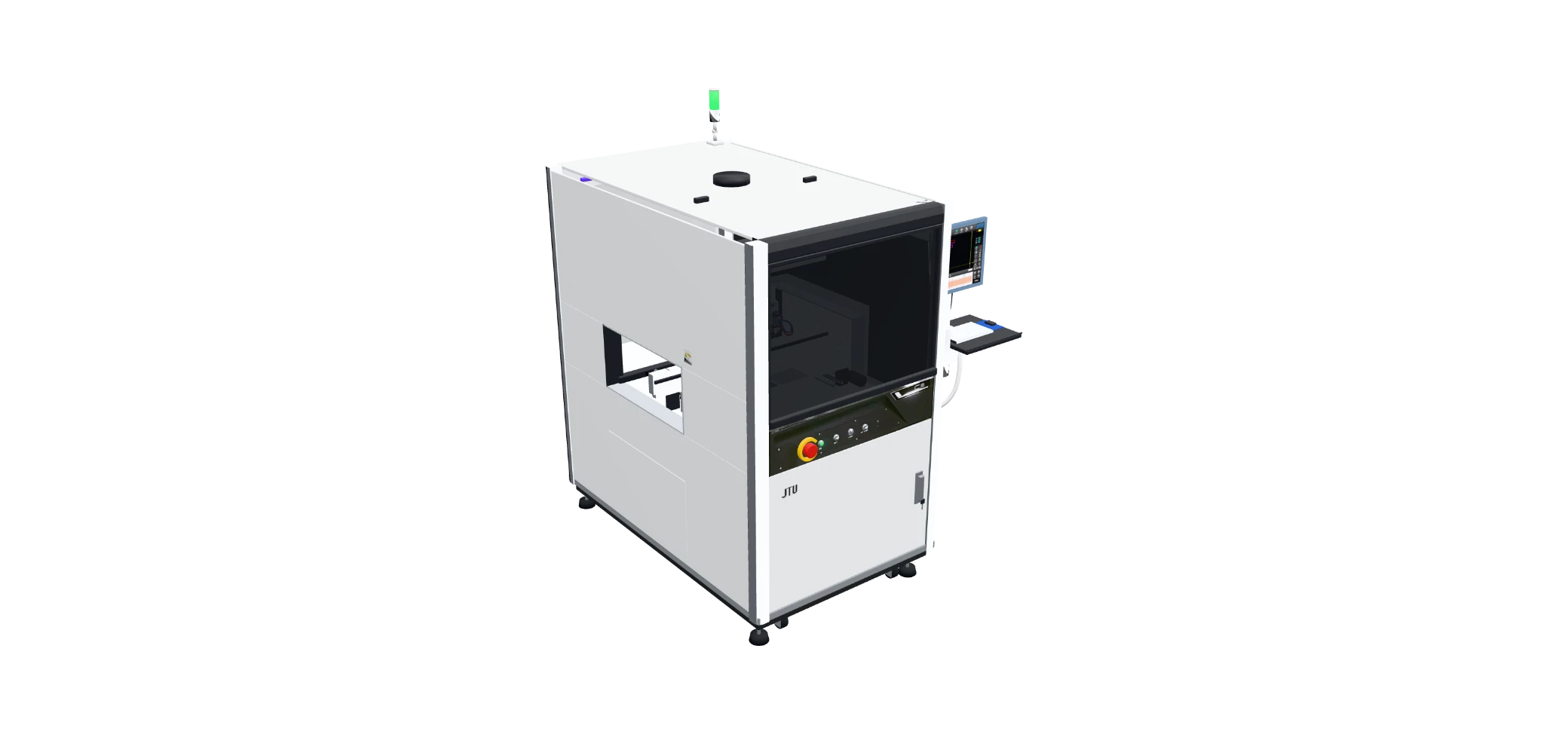

C5
4 axes · ±180° rotation.
Source: JTU C5 datasheet.
Compare
Valves
2. As standard they work separately (1 CS-05 and 1 PD-01). Option A: separately, with the left one tiltable 35° in 4 directions (1 CS-05 and 1 PD-01). Option B: both at once, tilted 35° to the left (2 CS-05 or 2 PD-01)
3 working separately: CS-05, PD-01 and FS-30
—
—
—
—
—
Valve type
—
—
Cone Shape Atomization Spray Valve
Precision Dispensing Valve
Fan Shape Large Area Spray Valve
High Pressure Dispensing Valve
Film Coating Valve
Standard on
—
—
C3 (1 in the standard configuration and in A; 2 in B), C5 (1), C7 (2) and C7S (4)
C3 (1 in the standard configuration and in A; 2 in B), C5 (1), C7 (2) and C7S (4)
C5
—

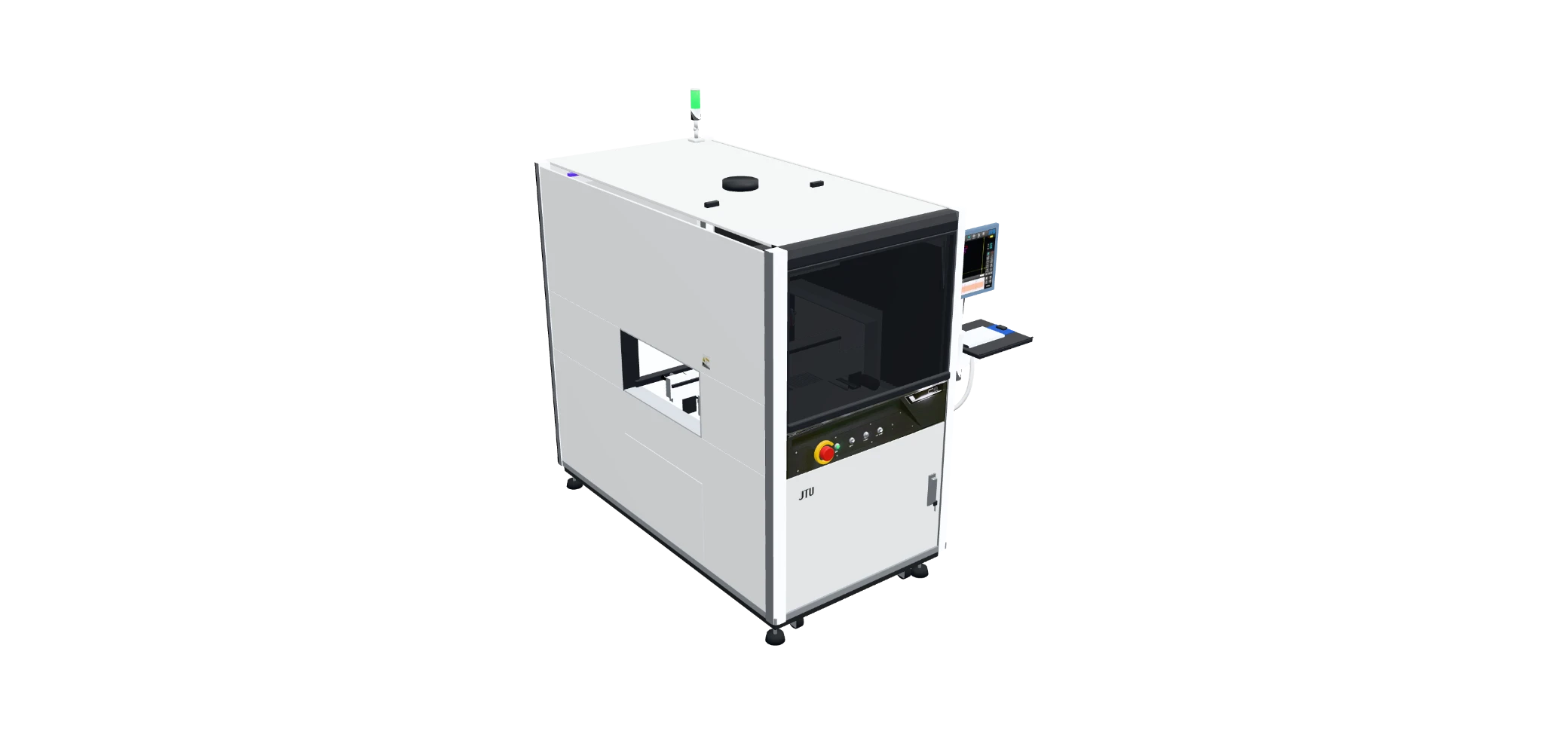

C6, alongside a PD-01
Coating area
460 × 460 mm (length × width, under certain conditions)
460 × 460 mm (length × width, under certain conditions)
—
—
—
—
—
Repeatability
±25 µm
±25 µm
—
—
—
—
—
Where it says so
Manufacturer’s datasheet (JTU).
Manufacturer’s datasheet (JTU).
Manufacturer’s datasheet (JTU).
Manufacturer’s datasheet (JTU).
Manufacturer’s datasheet (JTU).
Manufacturer’s datasheet (JTU).
Manufacturer’s datasheet (JTU).

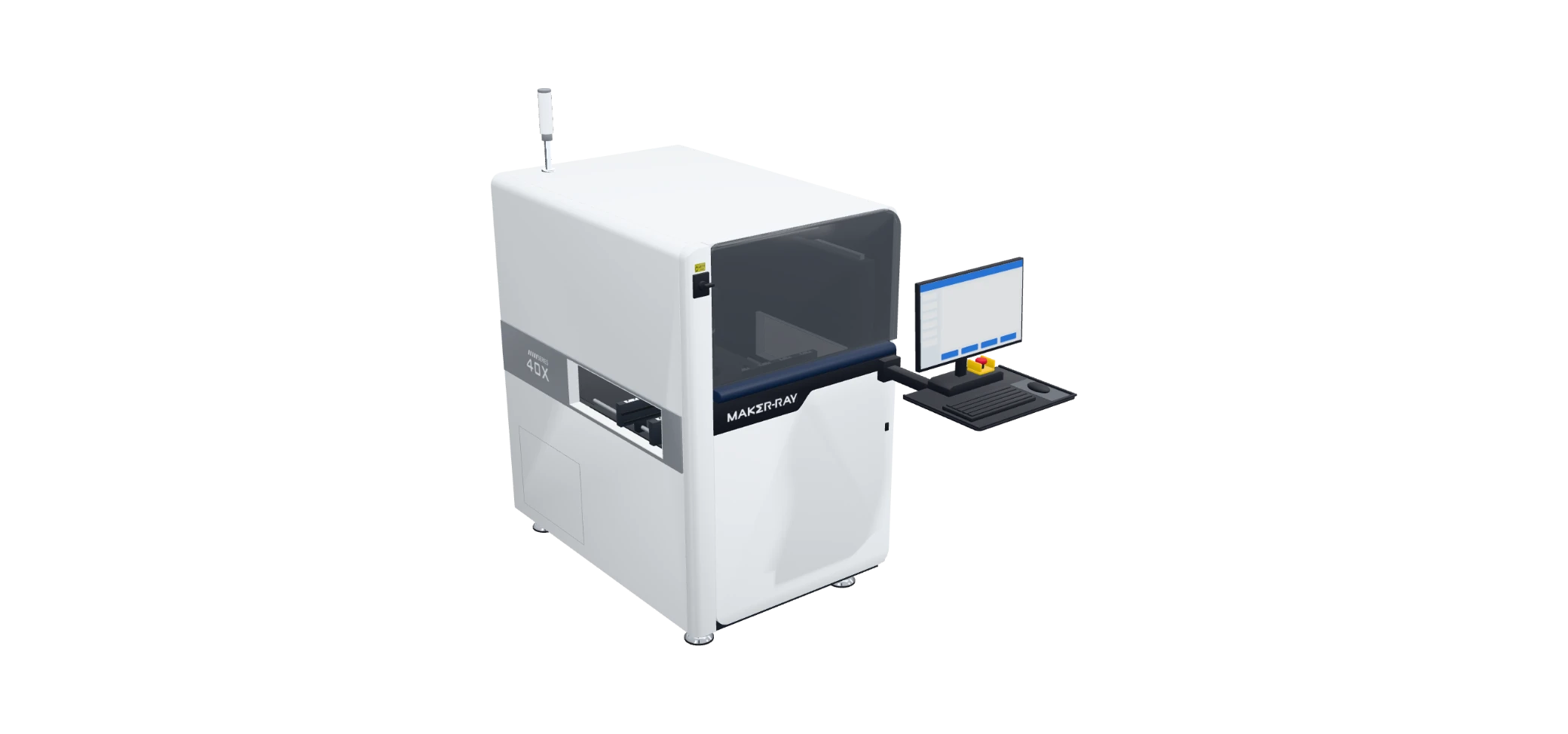

Coating inspection
3 machines
Compare
Board
50 × 50 – 510 × 460 mm
50 × 50 – 510 × 460 mm
50 × 50 – 510 × 460 mm
Camera
12 MP color high speed camera.
12 MP color high speed camera.
5 MP (OY-400C) / 12 MP (OY-400C+) color CCD camera
Resolution
15 µm
15 µm
—
Inspection speed
0.28 s/FOV
0.28 s/FOV
—
Where it says so
Manufacturer’s datasheet (Maker Ray).
Manufacturer’s datasheet (Maker Ray).
Manufacturer’s datasheet (Maker Ray).

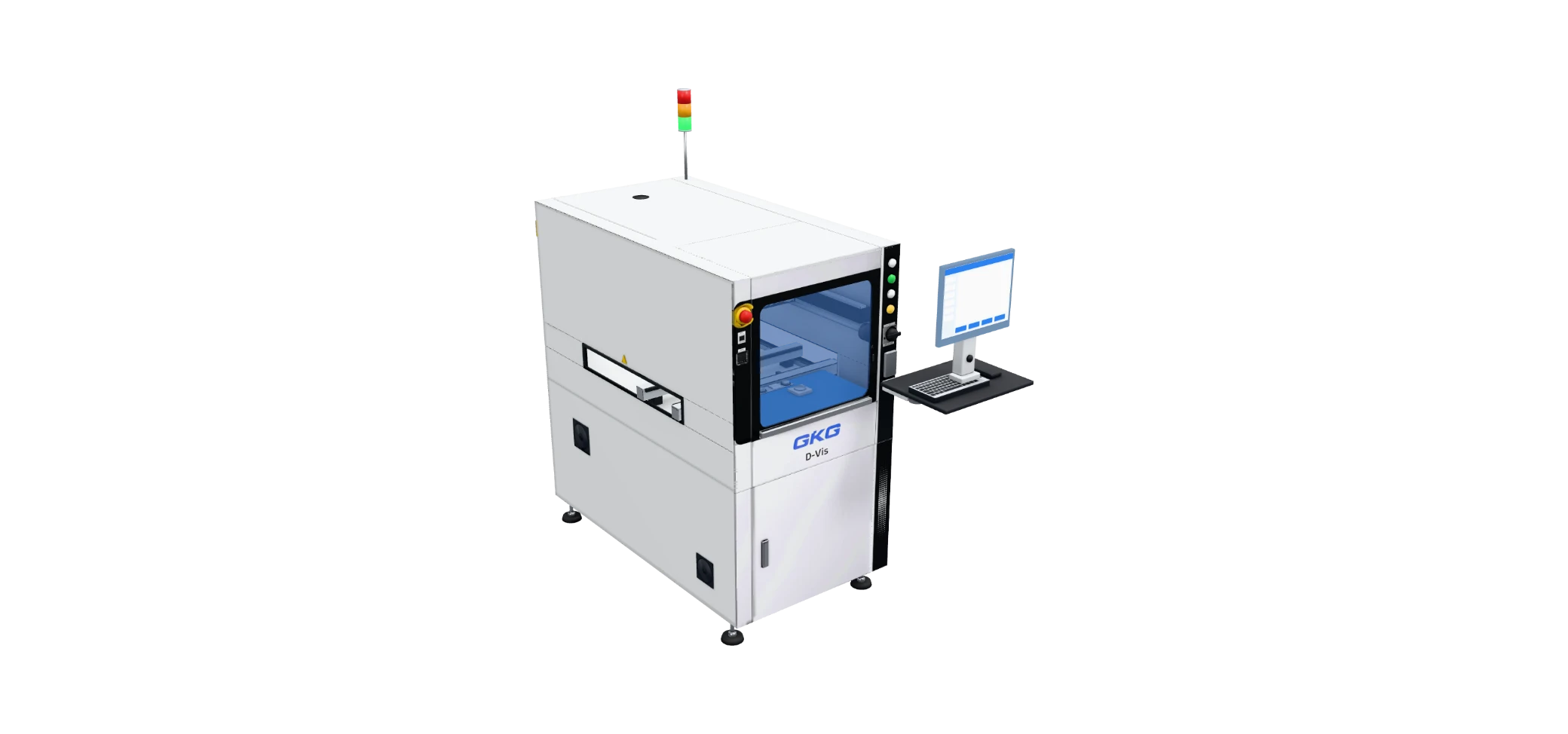

Dispensing
1 machine
Dispensing area
max.350 × 520 mm (single lane, single valve)
Positioning accuracy
±30 micron @ 4 sigma (CPK>1.33)
Repeatability
±15 micron @ 4 sigma (CPK>1.33)
Where it says so
Manufacturer’s datasheet (JTU GKG).
Board Handling
4 machines
Compare
Vanstron · Loaders and unloaders
Multi-magazine loader for coating line
Enclosed and with an extraction alarm, for conformal coating
View in detail
Vanstron · Loaders and unloaders
Multi-magazine unloader for coating line
Enclosed and with an extraction alarm, for conformal coating
View in detail
Vanstron · Conveyors
UV inspection conveyor PTB-460 UV
Checks the coating under ultraviolet light
View in detail
Vanstron · Conveyors
Lift station for pallet return in the coating line
Returns pallets to the start of the coating line
View in detailBoard
length × width330 × 250 mm · 440 × 330 mm · 530 × 390 mm · 535 × 460 mm
length × widthSUL-250M-EC: 330 × 250 mm · SUL-330L-EC: 440 × 330 mm · SUL-390L-EC: 530 × 390 mm · SUL-460L-EC: 535 × 460 mm
500 × 460 mm (length × width)
—
Magazines
1 top, 1 bottom and 1 middle
1 top, 1 bottom and 1 middle
—
—
Magazine change
30 s (opcional: 15 s)
30 s (opcional: 15 s)
—
—
Component clearance
Arriba: 80 mm · abajo: 40 mm
Arriba: 80 mm · abajo: 40 mm
Arriba: 50 mm · abajo: 40 mm
—
Where it says so
Manufacturer’s datasheet (Vanstron).
Manufacturer’s datasheet (Vanstron).
Manufacturer’s datasheet (Vanstron).
—
