Robotas MASCOT

The right part, in the right place, correctly oriented.1

Download the brochureRequest a quote

Image: Robotas.

The essentials.

  • Coming soon

    Class 2 laser. Marks where each part goes and is eye-safe.2

  • Coming soon

    Motorized carousel. Brings you the next part, right when you need it.5

  • Coming soon

    On-screen instructions. With images and videos for each component.5

  • Coming soon

    Fast programming. Step by step and, optionally, from CAD data and the BOM.6

Three key points

Application examples.

What Robotas recommends assembling with the MASCOT.

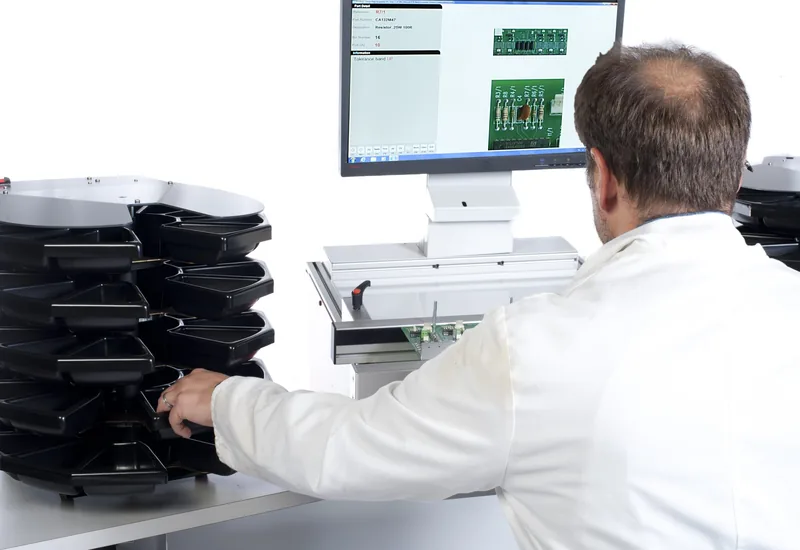

  • An operator assembling a board on the MASCOT
    High-mix, short runs. For manufacturers that build many different boards in small or medium batches.7

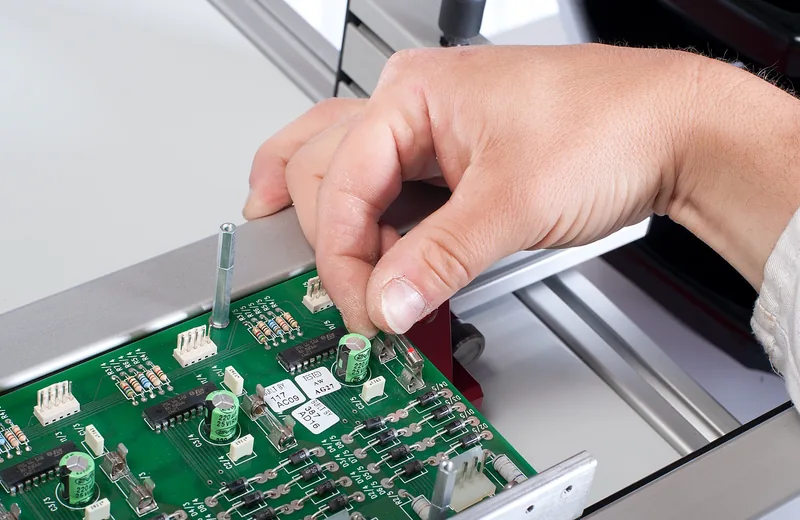

  • Inserting a component into the board
    Insertion and special parts. Through-hole components, odd-form parts, inspection and rework.8

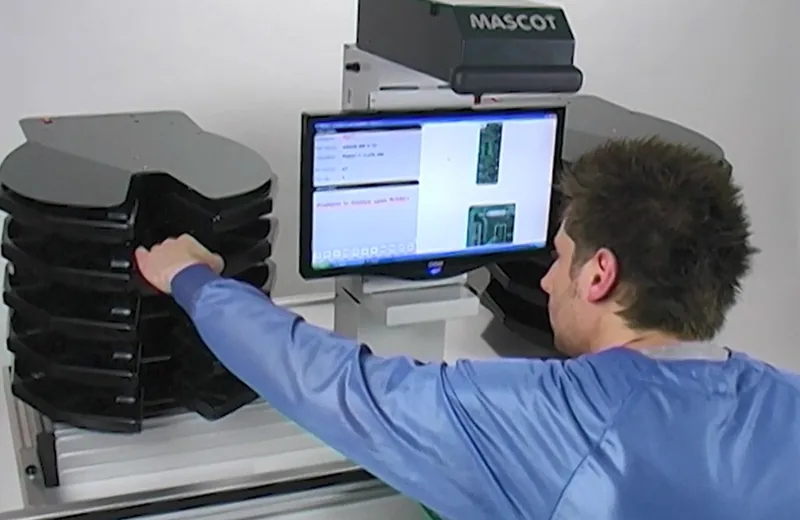

  • Picking the component from the carousel
    Without leaving the station. The operator alerts the warehouse when material runs out.9
  • Coming soon
    Several MASCOTs inline. With Pushtrack, each station places its share and the board moves on to the next.10
  • Coming soon
    On your line. Adapts to the motorized lines you already have.11
  • Coming soon
    Leads bent before soldering. Optionally, with Clinch: bends the leads under the board, from 35° to 85°.13
  • Coming soon
    Every step, checked. Optionally, with Verify: a 20 MP camera checks that the part is there, with the right polarity.14

Examples from the Spanish MASCOT brochure, p. 2, 5 and 6, and the Robotas 2025 catalog, p. 5, 8, 12 and 13. Robotas does not name industries for the MASCOT. Photos: Robotas.

Why Bwit.

  • A technician advises you.

    We help you configure the station for your boards.

  • Installation.

    We commission it at your plant.

  • Training.

    For operators and programmers.

  • Technical service.

    Close to you.

  • Spare parts.

    Trays, carousels and accessories.

Robotas MASCOT

Technical specifications.

Data from the Robotas brochure12

Board1 spec

Board size (maximum)
500 × 600 mm (board, pallet or carrier board)

Performance and accuracy3 specs

Assembly speed
750 – 1,200 CPH (components per hour)
Laser scan speed
Up to 600 mm/s (variable)
Carousel rotation time
Less than 2 s

Process1 spec

Laser
Sealed Class 2 unit per IEC 60825‑1:2006, eye-safe. Marks where each component goes, its orientation and its polarity

Software and control2 specs

Optional software
PRO COMPILER (creates the program from CAD data and the bill of materials) and WORKFLOW (times and efficiency of each station)
Software languages
English, French, Italian or Chinese (others can be added)

Machine1 spec

Floor space (with operator)
Standalone: 1200 × 2012 mm · Pushtrack: 1500 × 1410 mm (fondo × largo)

General6 specs

Maximum work area
457 × 305 mm or 600 × 500 mm, depending on the version
Carousels
Up to 4, motorized, with up to 50 compartments each
Compartments
Up to 200 in 4 carousels: each carousel holds 5 trays of 450 mm diameter with 10 compartments. Trays of 4 are also available for large parts
Compartment size
Depth 58 mm, length 131 mm and width 117 mm (tapering to 34 mm)
LED indicators
Up to 176
Versions
Standalone (single station), Pushtrack (inline, with a non-motorized rail up to 500 mm wide) and Custom (on your existing motorized lines)

Installation3 specs

Power consumption
200 W
Power supply
100 – 110 V AC at 60 Hz or 220 – 240 V AC at 50 Hz, switchable
Compressed air
Not required

Source: manufacturer's datasheet (Robotas).
